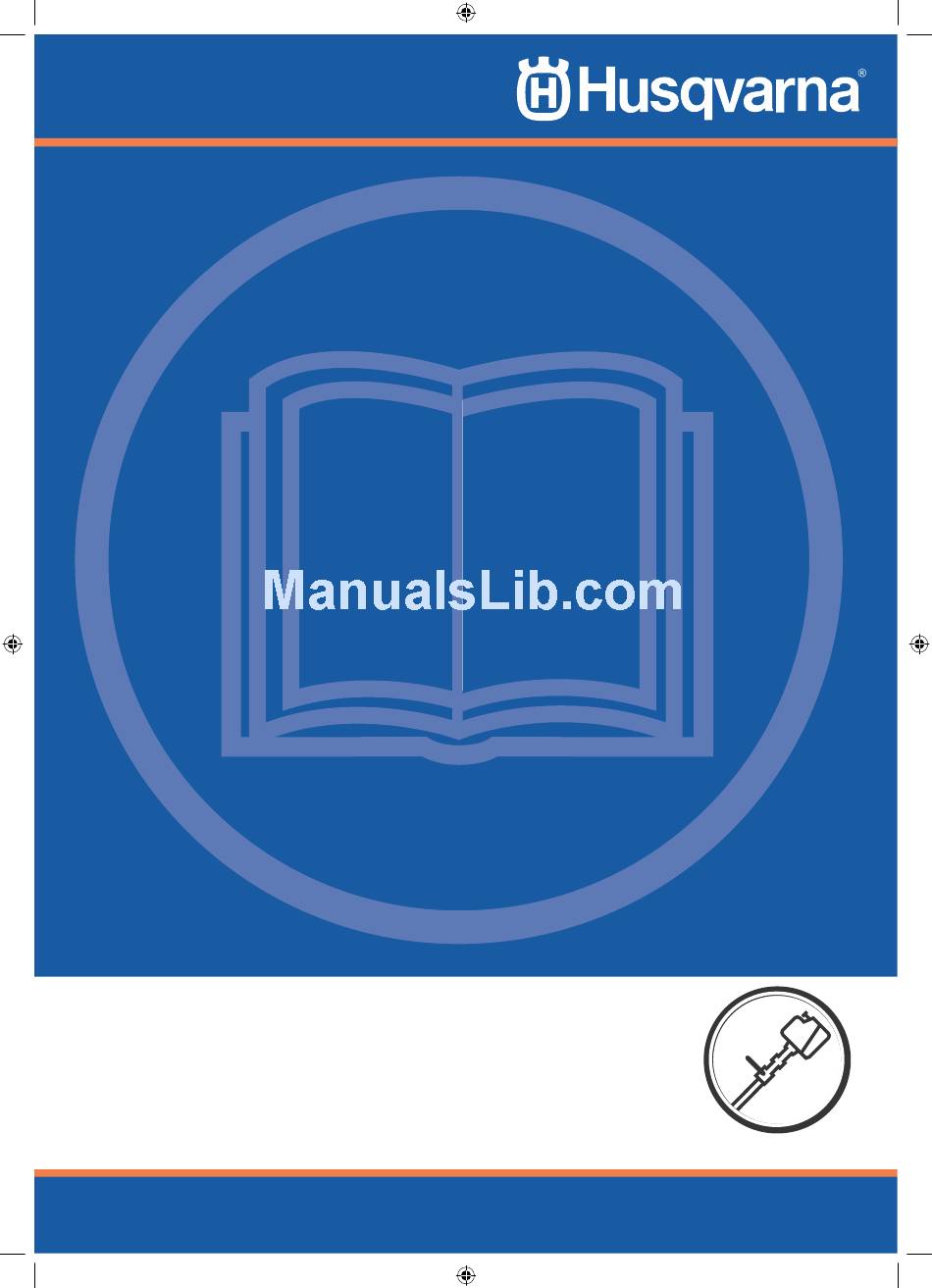

- Page 1 Instruction Manual 532RBS 542RBS English English - 1...
-
Page 2: Table Of Contents
SAFETY COMES FIRST Instructions that are marked with the symbol, as warnings within this manual, relate to issues of vital importance that must be taken into account to prevent serious bodily injury. Thus, you are asked to carefully read all such instructions and to adhere to them without exception. -
Page 3: Key To Symbols
1. Key to symbols Symbols Arrows which show limits for handle WARNING! A clearing saw, brushcutter positioning. or trimmer can be dangerous if used incorrectly or carelessly, and can cause serious or fatal injury to the operator or others. It is extremely important that you read and understand the contents of this Always wear approved protective operator’s manual. gloves. Please read the operator’s manual care- fully and make sure you understand the instructions before using the machine. Wear sturdy, non-slip boots. Always wear: •Wear a protective helmet where there is a risk of falling objects •Approved hearing protection •Approved eye protection Max. speed of output shaft, rpm 10000 Watch out for thrown objects and rico- chets. The operator of the machine must en- sure, while working, that no persons or animals come closer than 15 meters Machines fitted with saw blades or grass blades can be thrown violently to the side when the blade comes into contact with a fixed object. This is called blade thrust. The blade is capable of amputa- ting an arm or leg. Always keep people and animals at least 15 meters from the machine. English - 3... -
Page 4: Symbols On The Machine
For safe operation and maintenance, the symbols are engraved in relief on the machine. Follow these direc- tions and be careful not to make any mistakes. (a) Inlet for the "fuel mix" Location: FUEL TANK CAP (b) Position to close the choke Location: COVER OF THE AIR FILTER (c) Position to open the choke Location: COVER OF THE AIR FILTER 3. Specifications HUSQVARNA backpack brushcutter Name/Type 532RBS 542RBS Type of handle Loop Weight of machine (*1) External dimensions (Length x Width x Height) mm 315 x 270 x 410 Outer Tube Ø26 1500 2-tooth blade (12”), 4-tooth blade, 8-tooth blade, Head applied round saw blade (10"), trimmer head Power transmission method... -
Page 5: Safety Precautions
Safety Precautions 2. N ever use the product: 1. R ead this manual carefully until (1) W hen the ground is slippery or if you you fully understand its content and cannot maintain a steady posture. adhere to all safety and operating (2) A t night, in dense fog, or in other instructions. situations when your field of vision 2. K eep this manual handy to be may be limited and it is difficult to get able to refer to it at a later stage a clear view of the work area. whenever a doubt arises. Also (3) D uring heavy rain, thunderstorms, keep in mind that if you have any during high winds or at other times questions that cannot be answered when weather conditions may make here, you can contact the distributor the use of the product unsafe. from whom you purchased the product. ■ WORK PLAN 3. A lways make sure you include this 1. Y ou should never use the product manual when you sell, lend or in... - Page 6 3. A fter starting the engine, ensure that or warning signs should be placed the cutting equipment stops rotating around the perimeter of the area. when the throttle is fully shut off and When the job has to be carried out by returned to its original position. If it two or more people at the same time, continues to revolve even after the care must be taken to constantly look throttle has been completely shut around and to ascertain the location off, turn off the engine and take the of other people performing the work unit to your HUSQVARNA authorized in order to maintain enough distance service workshop for repair. between each person to ensure ■ PRODUCT USE safety. 2. C heck the conditions of the work IMPORTANT area to prevent accidents as a result of hitting hidden obstructions, such Only cut material recommended by the as stumps, stones, cans or broken manufacturer. Only use the unit for the glass. tasks outlined in the manual. 1. G rip the handles firmly with both IMPORTANT hands and with the whole hand.
- Page 7 Safety Precautions ■ IF SOMEONE APPROACHES ■ HANDLING FUEL 1. A void dangerous situations at all 1. T he engine of the HUSQVARNA times. Advise adults to keep pets product is designed to operate with a and children away from the area. Be mixed fuel, containing gasoline, which careful if someone is approaching is highly flammable. Never store fuel you. The dispersal of waste material cans or refill the unit's tank in an area can cause injury. with a boiler, stove, wood fire, electri- cal sparks, welding sparks or any 2. I f someone calls you or interrupts you other source of heat or fire that could in any way while you are working, ignite the fuel. always ensure that you turn off the engine before turning around. 2. N ever smoke while the unit is operating or when filling the fuel tank.
- Page 8 Safety Precautions Contact with the material causes the blade to stop for an instant and then suddenly start to move or "rebound" against the object that it hit. The operator can lose control of the unit and the blade can cause serious injury to the operator or any person in the vicinity if the blade comes into contact with any part of the body. 2. How to reduce the risk of blade thrust: (1) B e aware that blade thrust can occur. Understanding and being aware of the rebound can eliminate the element of surprise. (2) O nly cut fibrous weeds and grass. Do not allow the blade to come into contact with material that it cannot cut, such as vines and hard woody weeds or rocks, fences, metal, etc. (3) B e prepared for blade thrust if you need to cut in an area where you cannot see the blade working, such as areas of dense growth. (4) K eep the blade sharp. A blunt blade increases the risk of blade thrust.
-
Page 9: Assembly
5. Assembly facing directly upwards. When you have reached a WARNING point just below the catch, you will hear a "click" as the catch in the hole secures the sheath in place. • Fit each piece correctly. Incorrect assembly (SE4) could cause an accident. • If you cannot carry out assembly yourself, (1) Clutch Housing consult the distributor from whom you (2) Stop purchased this product. (3) Angular hole ■... - Page 10 • Do not install or remove the blade while the engine is running. • Use metal blades and accessories produced by HUSQVARNA when installing the blade. • When you install or remove the blade, firmly ATTACHING THE HANDLE ■ secure the machine and use heavy gloves.
- Page 11 IMPORTANT 2. Attach the cover and fix it with 3 screws Given that the resistance of the nylon cutter is higher than that of the metal cutter, a malfunction of the nylon 3. i nsert blades between cutter holder A and cutter holder B cutter will make the clutch overheat, warp and suffer damage. When using the nylon cutter, pay attention to 4. Attach cover and spring washer the following. 5. Screw the nut to fix them into place • U se genuine HUSQVARNA nylon cutter. If you use Tighten torque: other commercially available nylon cutters, make 14.7~16.6 N-m sure that the external length does not exceed (150~200kgf-m) 10 cm. • M ake sure that length of the nylon cable is 17 cm 1. Nut or less. 2. Cover • K eep the engine running at a high speed while 3.
-
Page 12: Fuel
• N ever use “FUEL WITHOUT OIL (PURE GASOLINE).” • N ever use fuel mixed with water. • M ixed fuels that have not been used for a month or more may obstruct the carburetor or prevent the engine from functioning correctly. Put the remaining fuel into an airtight container and store in a cool dark room. • A sk for “mixed gasoline for air-cooled 2-stroke engines” in your nearest gas station, or use fuel made by mixing unleaded gasoline for cars and 2-stroke air-cooled engine oil in a mixing container, following the ratios indicated below, and then shake it to mix well. Mixing ratios: When using genuine Husqvarna 2-stroke oil (FC rated): 50:1 (100 ml of oil for every 5 liters of gasoline) When using other commercially available 2-stroke oil (FB rated): 25:1 (160 ml of oil for every 4 liters of gasoline) 12 - English... -
Page 13: Operation
7. Operation REFILLING • ■ WARNING WARNING • Always hold the throttle lever in the idle position when you start or stop the engine or move the • Fill the fuel tank on a flat surface, outdoors. Do machine. If the throttle lever is placed in any not smoke or allow flames or sparks to come other position, apart from the idle position, the close to the fuel, and put out all cigarettes. - Page 14 7. Operation 1. O pen the fuel tap. (OP2) IMPORTANT 2. M ove the choke lever to the closed position. (OP2) Do not pull the starter cord until the end, and do not let the handle slip out of your right hand, other- (1) Fuel tap wise it may not return to its original position. (2) Close (3) Open 5. A fter the engine has started, gradually open the...
- Page 15 7. Operation (1) Area of the blade where the machine is prone to blade thrust WARNING CUTTING ■ • When using this machine, please read and WARNING adhere to the precautions and instructions outlined under "Safety Precautions" (pages 5 • Always use eye protection, such as safety to 8) in this manual.
- Page 16 7. Operation 4. U se a slow deliberate action to cut through dense growth. The speed of the cutting movement will depend on the material you are cutting. Dense growth will require a slower action than light growth. 5. N ever use a sweeping motion that is strong enough to put you at risk of losing balance or control of the unit. 6. T ry to control the cutting motion with your hips rather of putting the entire workload on to your arm and hands. 7. T ake precautions to prevent wire, grass and dead, dry weeds with long roots becoming entangled around the shaft. These materials can clog up the head and cause the clutch to slip, causing damage to the clutch system where this occurs frequently. ADJUSTING THE LENGTH OF THE LINE • T he brushcutter is equipped with a semi-automatic nylon-line head that allows the user to feed line without stopping the engine. When the line becomes too short, gently tap the head on the ground while the engine is running at full throttle.
-
Page 17: Maintenance
8. Maintenance 4. W ind the line in the right direction, as shown on the BLADE ■ • S harpen all the cutting edges and make sure that spool. the bottom corner is rounded off. (MA1) 5. H ook each end of the line on to the slot on the edge • D o not cool the blade with water if you are using a of the spool and then pass the ends through the grinder. This could cause cracks in the blade. eyelets in the casing. Make sure that the spring and the washers are in place. 6. W hile holding the spool against the casing, pull the ends of the line to release them from the slot. 7. A lign the slot on the lower cap with the hook on the casing and push cap against the housing until it snaps into place. REPLACING THE CUTTING LINE (MA2) ■... - Page 18 8. Maintenance FUEL FILTER ■ WARNING When installing or removing the fuel filter, be careful not to damage the rubber housing. Damaged rubber housing or a poorly fitted fuel filter will cause a fuel leak. 0.6~0.7 mm Check the extent to which the fuel filter has become clogged via the fuel inlet on the fuel tank after every 25 hours of use. IMPORTANT If the fuel filter is clogged with dust, drain the fuel tank, remove the fuel filter and clean it with a brush, etc.
- Page 19 8. Maintenance FLEXIBLE SHAFT ■ ADJUSTING THE ENGINE ■ Apply grease to the flexible shaft after every 25 hours of use. WARNING 1. R emove the flexible shaft as you lift the stopper of If the blade continues to spin after the throttle lever the clutch housing. has been put into the idle position, this could be 2. R emove the inner shaft, apply grease to the dangerous.
- Page 20 8. Maintenance The engine speed increases when the idle adjustment 4. A pply a small amount of grease to the gearbox and screw is turned clockwise and decreases when it is apply anti-corrosion oil to any metal parts such as turned anticlockwise. the throttle cable. 5. A pply a small amount of oil to the blade, put the cover on the blade and store the machine in a safe Standard engine speed at idle: place away from heat and moisture. 2,300 to 2,700 rpm MA12 MA11 (1) Fuel tank cap (1) Idle adjustment (2) Fuel tank screw (2) Rotation increases. (3) Rotation decreases.
-
Page 21: Troubleshooting
(such as a lit cigarette). Otherwise, the fuel may ignite. • Use genuine HUSQVARNA or specialized fasteners (bolts, nuts and screws). Using parts produced by another manufacturer could damage the machine or cause an unexpected incident due to parts falling off while the machine is operating. - Page 24 Original Instructions 1157704-26 115770426 2015-09-29...
