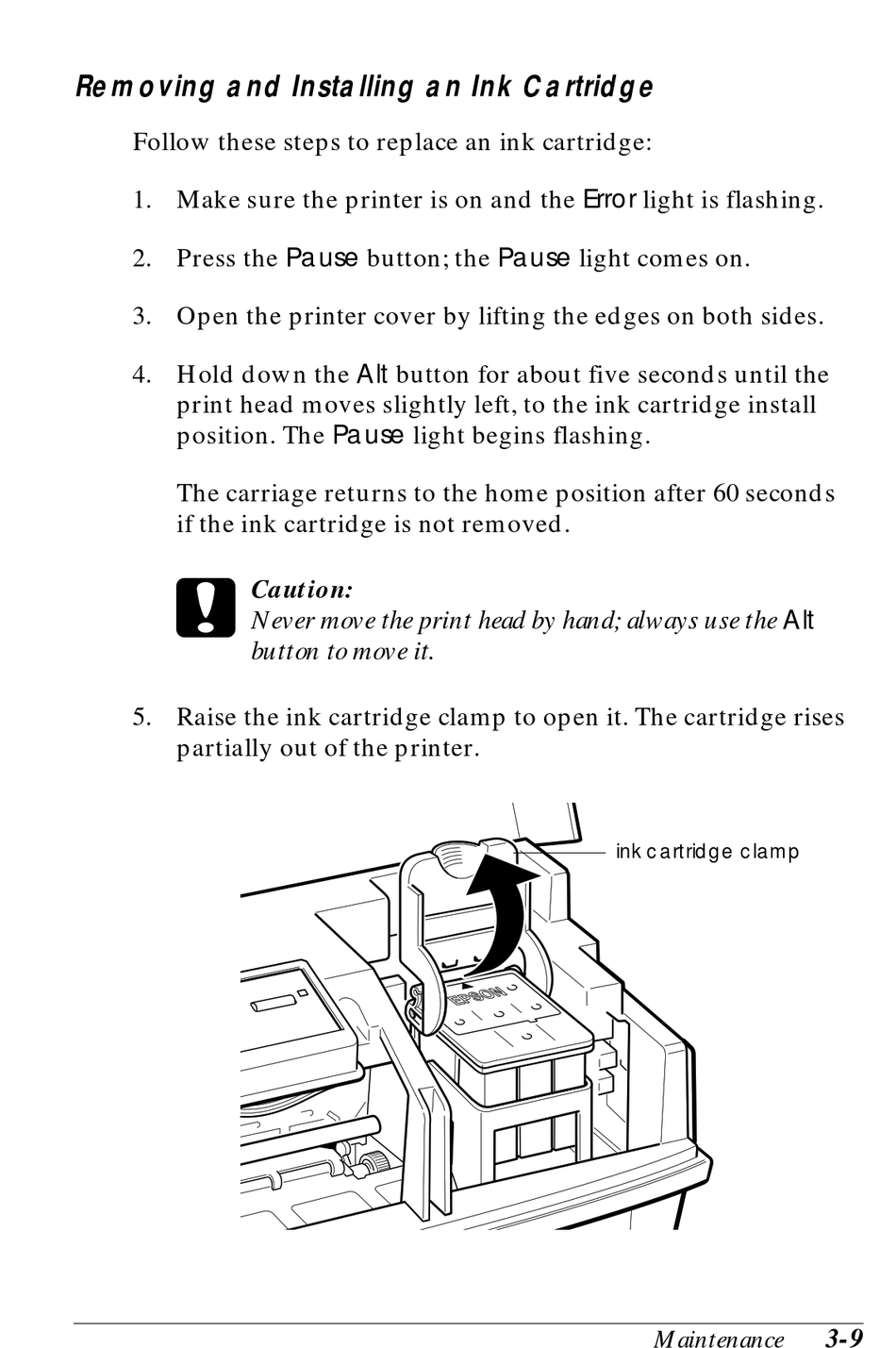

Removing and Installing an Ink Cartridge

Follow these steps to replace an ink cartridge:
1. Make sure the printer is on and the Error light is flashing.
2. Press the Pause button; the Pause light comes on.
3. Open the printer cover by lifting the edges on both sides.
4. Hold down the Alt button for about five seconds until the
print head moves slightly left, to the ink cartridge install
position. The Pause light begins flashing.
The carriage returns to the home position after 60 seconds
if the ink cartridge is not removed.
c
5. Raise the ink cartridge clamp to open it. The cartridge rises
partially out of the printer.
Caution:
Never move the print head by hand; always use the Alt
button to move it.
ink cartridge clamp
Maintenance
3-9
