MOD-6045, MOD-6046

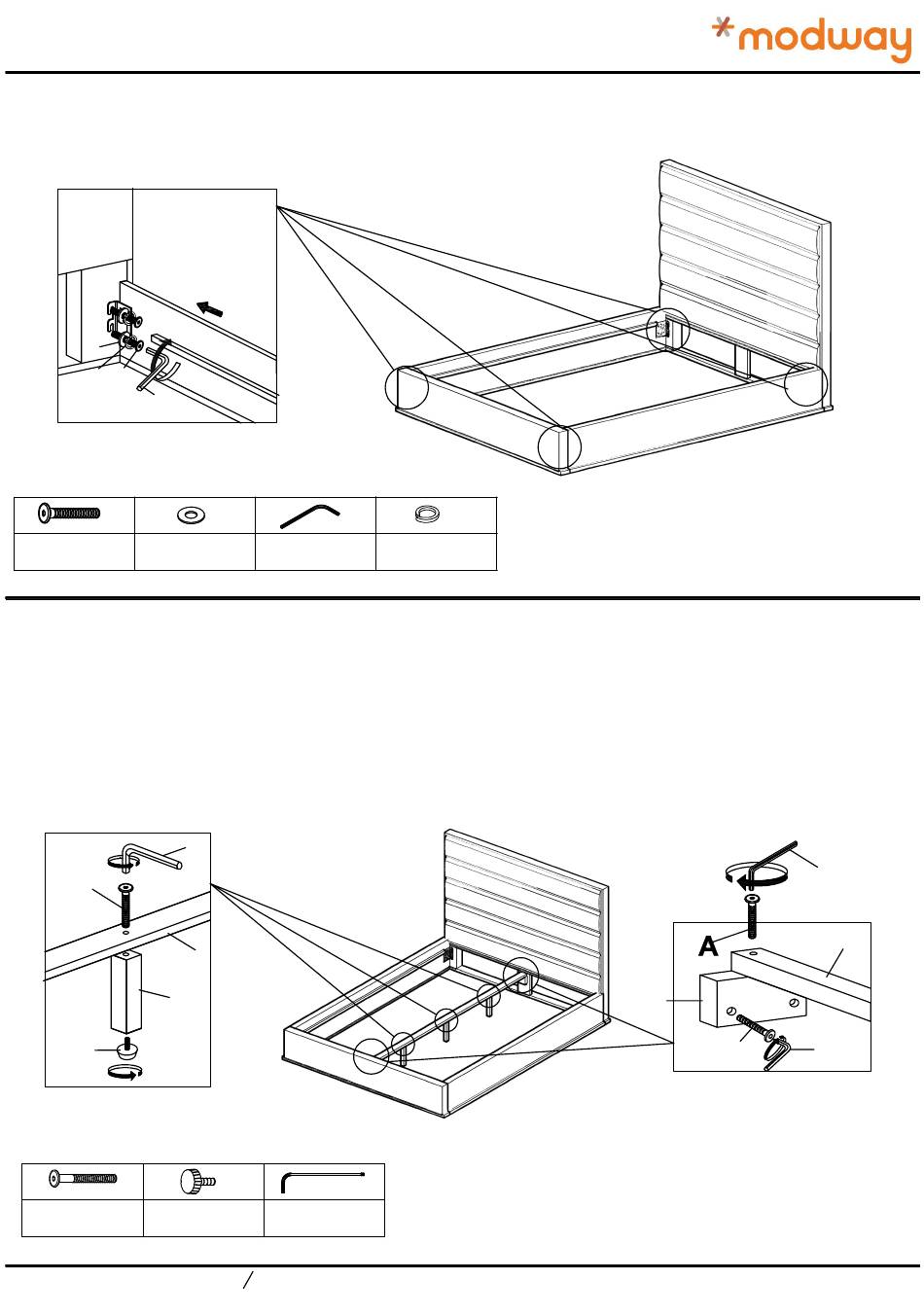

STEP 1:
Place Headboard (1) , Footboard (2) and Siderail (3) on a carpeted or padded area as shown. Attach Side rail (3) into Headboard
(1) and Footboard (2) by inserting Flat Washer (G), Spring washer(H) and JCBB 25mm Bolt (B) into the holes of Headboard (1)
and Footboard(2). Tighten with M5 Allen Key (F).
G
H
B
F
Bx8
Gx8
Hardware & Tool required
Hardware & Tool required
STEP 2:
1. Attach the Support Bar (6) to the predrilled hole at center of Headboard (1) by using JCBC bolt 40MM(A) and tighten by using M4 Allen Key(E).
Repeat the same step at Footboard(2), then place Center Support bar(4) on the Support Bar(6),attach JCBC bolt 40MM(A) at predrill hole and
tighten by using M4 Allen Key(E).
2. Place the Center Support Bar(4) as per picture shown and attach JCBC bolt 40MM(A) and tighten using M4 Allen Key(E). Repeat again at
Footboard(2)
3.Attach the Adjuster(D) to the two Center Support Leg(5).
4. Attach the Center Support Leg(5) to the Center support bar(4) as shown in diagram., Insert JCBC 40MM (A) to the predrilled hole and tighten by
using M4 Allen Key(E)
E
A
5
D
Ax9
Hardware & Tool required
Customer Service 908-368-1025 www.modway.com
3
Fx1
4
Dx3
Ex1
Hx8
E
6
A
E
4
Page 2/3
