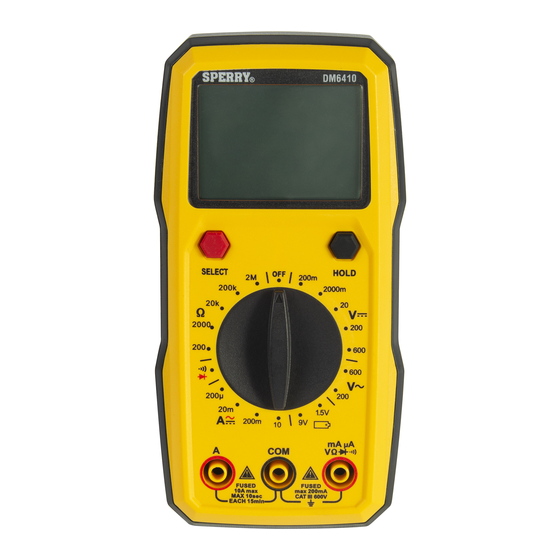

Sperry instruments DM6410 Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Sperry instruments Manuals
  4. Multimeter
  5. DM6410
  6. Operating instructions manual

Sperry instruments DM6410 Operating Instructions Manual

8 function digital autoranging multimeter
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
IMPORTANT: RECEIVING INSTRUCTIONS
Visually inspect all components for shipping damage. If you find damage, notify the carrier at once.
Shipping damage is NOT covered by warranty. The carrier is responsible for all repair or replacement costs resulting from damage in shipment.
Read this owners manual thoroughly before use and save.

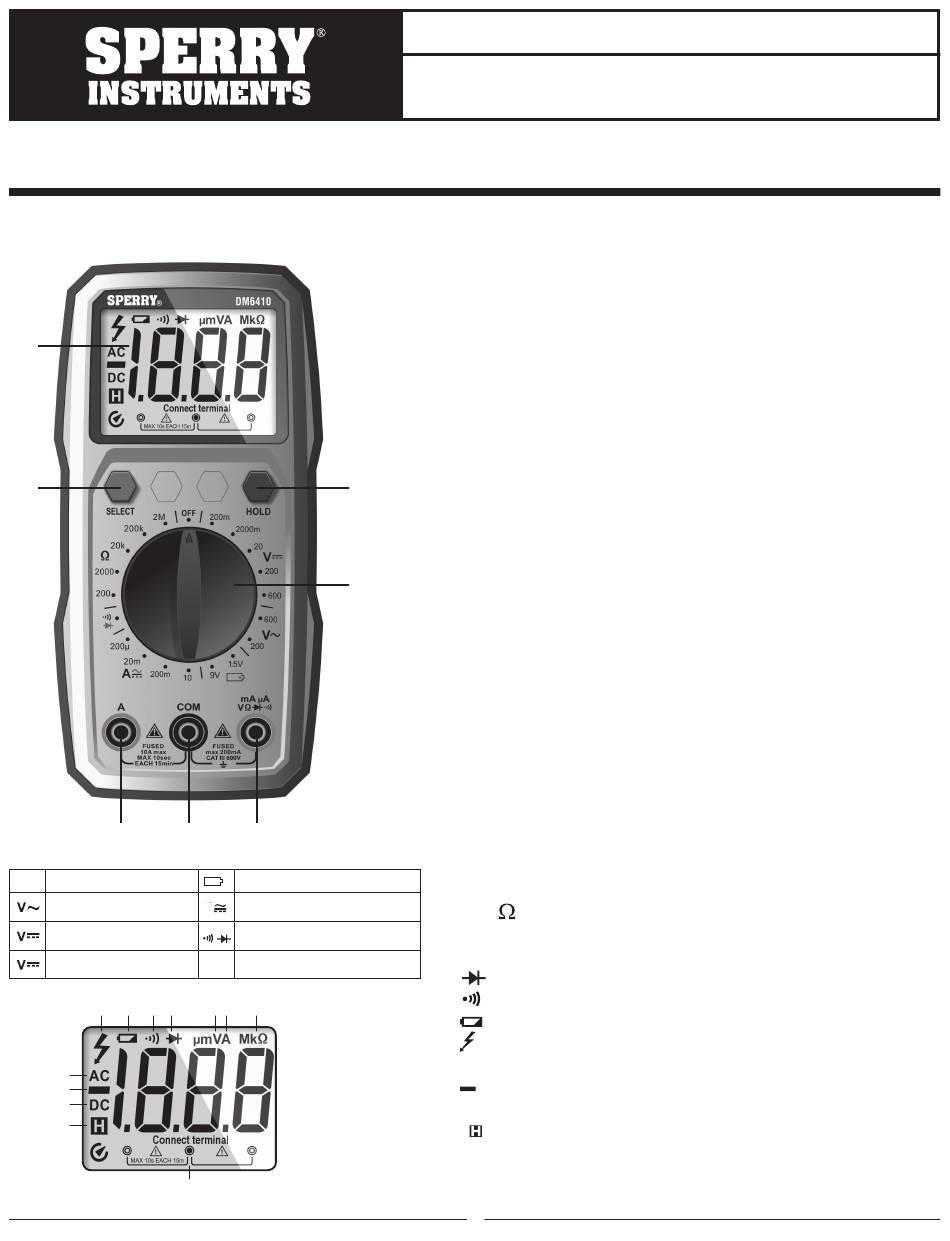

Figure 1
1
2
4
5
Rotary Switch
OFF
Power off
DC Voltage Measurement
AC Voltage Measurement
Resistance Measurement
A
400A
A
400A
400A
A
A
A
7
400A
400A
6
5
4
A
400A
8
9
10
11
12
Figure 2
3
7
6
A
400A
Battery Measurement
+
A
400A
AC/DC Current
Continuity / Diode Measurement
A
400A
A
400A
A
400A
3
2
1
A
400A
OPERATING INSTRUCTIONS
8 Function Digital Autoranging Multimeter
1.0 DISPLAY FUNCTIONS & SYMBOLS
1.1 FUNCTIONS (Figure 1)
1. Display: 2000 Count LCD screen
2. SELECT Button: Press to switch between AC current and DC current
measurement functions and continuity and diode measurement functions.
3. HOLD Button: Press to enter or exit the Data Hold mode.
4. 10A Terminal: Red test lead input jack for 10A current measurements.
5. COM Terminal: Black test lead input jack common to all measurements.
6. INPUT Terminal: Red test lead input jack for all measurements
expect 10A current measurements.
7. Rotary Switch: Turn to power the meter on and off and select the desired
measurement function. To save battery power, turn to the "OFF" position when
the meter is not in use. See "ROTARY SWITCH" section for function descriptions.
1.1 METER FUNCTIONS
Meter type:
Auto
Display Count:
2000
Battery:
Requires 2 AAA batteries
Input impedance:
10 Meg Ohm
AC Volt Ranges:
200V, 600V, best accuracy (0.8%+5)
DC Volt Ranges:
200mV, 2000mV, 20V, 200V and 600V,
best accuracy (0.5%+5)
AC Amps:
200uA, 20mA, 200mA, 10A, best accuracy (1.0%+3)
DC Amps:
200uA, 20mA, 200mA, 10A, best accuracy (0.8%+3)
Resistance Ranges:
200ohm, 2000ohm, 20kohm, 200kohm,
2M ohm, best accuracy (0.8+3)
Over Range Indication:
Displayed value > 1999 or the input
measurement range, displays OL
Polarity Indication:
"-" is displayed for negative polarity
Agency Approvals:
ETL, CE (IEC/EN61010:, CAT III 600V, Pollution Degree 2)
Operating Temperature: 32°F–104°F (0°C–40°C)
Relative Humidity:
< 95%
Storage Temperature:
-4°F–140°F (-10°- 50°C)
IP Degree:
IP20
Dimension:
156mm x 78mm x 28mm
Weight:
Around 172g (without batteries)
Altitude:
Maximum 2000m
Warranty Info:
Limited lifetime warranty
1.2 DISPLAY SYMBOLS (Figure 2)
1. (M)(k)
:
Resistance Measurement
2. (u)(m)A:
Current Measurement
3. (m)V:
Voltage Measurement
4.
:
Diode measurement
A
400A
5.
:
Continuity Measurement
A
400A
6.
:
The battery is low and must be replaced
Autorange
MAX MIN
7.
:
1 . 8 . 8 . 8
The measuring voltage exceeds 30V AC/DC
8. AC:
AC
9.
:
Negative sign
Autorange
MAX MIN
1 . 8 . 8 . 8
AC
10. DC:
DC
DC
11.
:
Data Hold is enabled
AC
12.
Test lead input icons
DC
1
DM6410

Advertisement

loading

Related Manuals for Sperry instruments DM6410

Summary of Contents for Sperry instruments DM6410

  • Page 1 OPERATING INSTRUCTIONS 8 Function Digital Autoranging Multimeter DM6410 IMPORTANT: RECEIVING INSTRUCTIONS Visually inspect all components for shipping damage. If you find damage, notify the carrier at once. Shipping damage is NOT covered by warranty. The carrier is responsible for all repair or replacement costs resulting from damage in shipment.
  • Page 2 2.0 READ FIRST: IMPORTANT SAFETY INFORMATION Read this operators manual thoroughly before using this multimeter. This manual is intended to provide basic information regarding this meter and to describe common test procedures which can be made with this unit. Many types of appliance, machinery and other electrical circuit measurements are not addressed in this manual and should be handled by experienced service technicians.

  • Page 3: Specifications

    Measurement categories (Over-voltage categories) To ensure safe operation of measuring instruments, IEC61010 establishes safety standards for various electrical environments, specified as CAT I through CAT IV, and called measurement categories. Higher-numbered categories correspond to electrical environments with greater momentary energy, so a measuring instrument designed for CAT III environments can endure greater momentary energy than one designed for CAT II.

  • Page 4: Dial Settings

    4.0 FUNCTIONS 4.1 HOLD BUTTON 1. Press HOLD once to enter data hold mode and freeze the displayed value. 2. Press HOLD again to exit data hold mode and resume normal measurement mode. 4.2 AUTO POWER OFF 1. If you have not operated the meter for 15 minutes, the meter will turn off automatically and go into Sleep mode. It will beep 1 minute prior to turning off as a warning.
  • Page 5 5.4 DC AMPS If the fuse burns out during measurement, the meter may be damaged or personal injury may occur. To avoid possible damage to the meter or to the equipment under test, check the meter’s fuses before measuring current. Use the proper terminals, function, and range for the measurement.

  • Page 6: Battery Replacement
