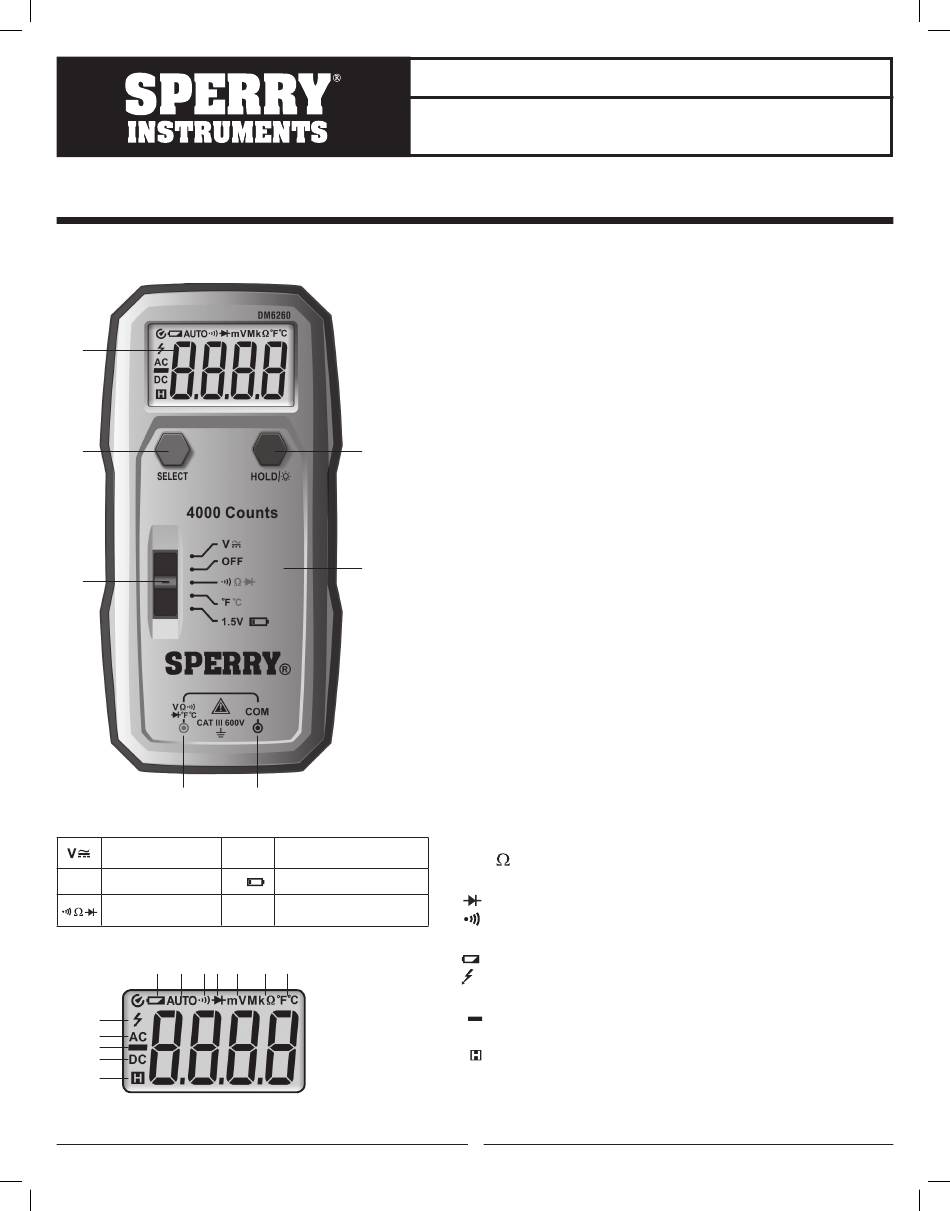

Figure 1
1
2
6
5
Slide Switch
˚F ˚C
AC/DC Voltage
Measurement
OFF
Power off
1.5V
Continuity / Resistance
/ Diode Measurement
A
400A
A
400A
A
400A
7
6
5
4
3
A
400A
8
9
10
11
12
Figure 2
3
7
4
°F°C
Temperature Measurement
1.5V Battery Measurement
2
1
OPERATING INSTRUCTIONS
7 Function Digital Autoranging Multimeter
DM6260
1.0 DISPLAY FUNCTIONS & SYMBOLS
1.1 FUNCTIONS (Figure 1)
1. Display: Backlit 4000 Count LCD screen
2. SELECT Button: Press to switch between AC voltage and DC voltage
measurement functions, resistance, continuity, and diode measurement functions,
and °F and °C measurement functions.
3. HOLD / BACKLIGHT Button: Press to enter or exit the Data Hold mode. Press
and hold to turn on the backlight. Press and hold again to turn off the backlight.
The backlight will automatically turn off 1 minute after it is turned on.
4. COM Terminal: Black test lead input jack common to all measurements.
5. INPUT Terminal: Red test lead input jack for all measurements.
6. Slide Switch: Slide to power the meter on and off and select the desired
measurement function. To save battery power, turn to the "OFF" position when
the meter is not in use. See "SLIDE SWITCH" section for function descriptions.
1.1 METER FUNCTIONS
Meter type:
Auto
Display Count:
4000
Battery:
Requires 2 AAA batteries
Input impedance:
10 Meg Ohm
AC Volt Ranges:
4V, 40V, 400V, 600V, best accuracy (0.8%+5)
DC Volt Ranges:
4V, 40V, 400V, and 600V, best accuracy (0.5%+3)
Temperature Ranges:
-40˚F - 1832˚F (-40˚C - 1000˚C)
Resistance Ranges:
400ohm, 4kohm, 40kohm, 400kohm,
4M ohm, and 20M ohm
Over Range Indication:
Displayed value > 4000 or the input
measurement range, displays OL
Polarity Indication:
"-" is displayed for negative polarity
Agency Approvals:
ETL, CE (IEC/EN61010:, CAT III 600V, Pollution Degree 2)
Operating Temperature: 32°F–104°F (0°C–40°C)
Relative Humidity:
< 95%
Storage Temperature:
-4°F–140°F (-10°- 50°C)
IP Degree:
IP20
Dimension:
142mm x 70mm x 25mm
Weight:
Around 116g (without batteries)
Altitude:
Maximum 2000m
Warranty Info:
Limited lifetime warranty
1.2 DISPLAY SYMBOLS (Figure 2)
1. °F °C: Temperature Measurement
2. (M)(k)
: Resistance Measurement
3. (m)V: Voltage Measurement
4.
: Diode measurement
A
400A
5.
: Continuity Measurement
A
400A
6. AUTO: Automatic power-off feature is enabled
7.
: The battery is low and must be replaced
Autorange
MAX MIN
8.
: The measuring voltage exceeds 30V AC/DC
1 . 8 . 8 . 8
9. AC: AC
10.
: Negative sign
Autorange
MAX MIN
1 . 8 . 8 . 8
AC
11. DC: DC
DC
12.
: Data Hold is enabled
AC
DC
