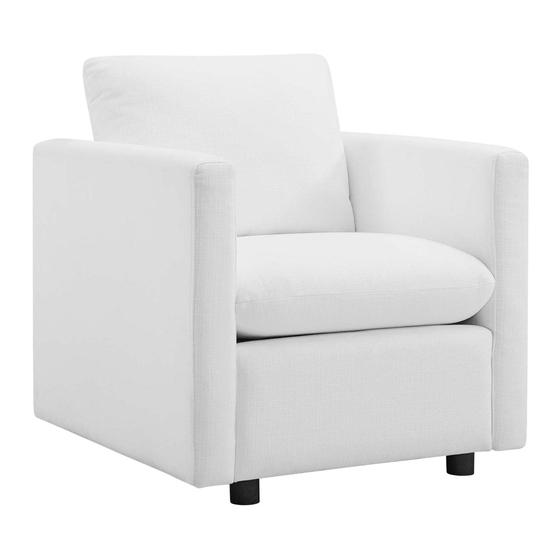

EEI-3045 Chair
Thank you for purchasing the MODWAY CHAIR.
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2. Owing to the size and weight of the chair, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 25 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
and environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten
the components from time to time, so please save the tools that have been provided.
6. Please keep all fitting out of reach of children.

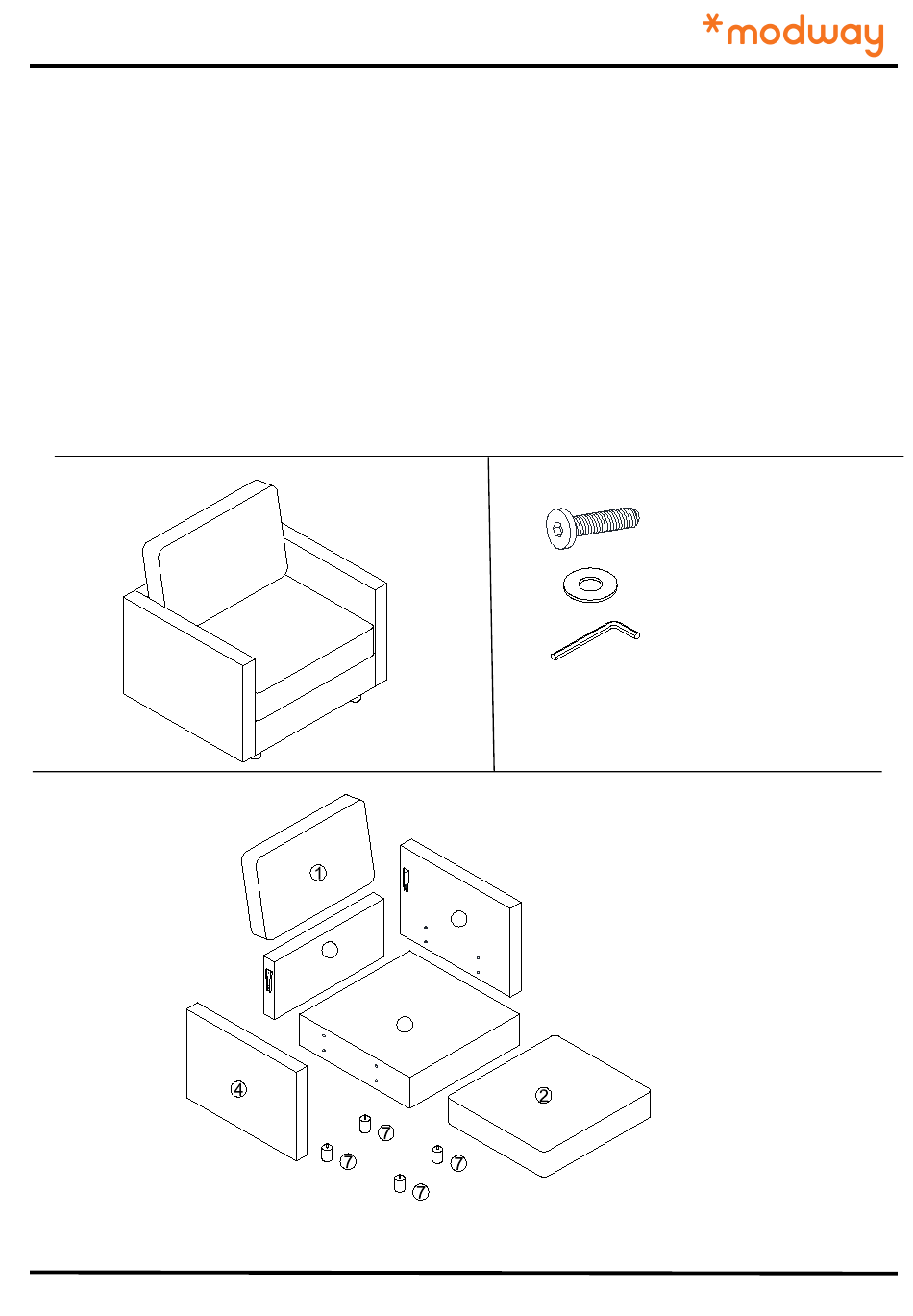

Component:
1
Back Cushion x1
5 Right Arm x1
Customer Service 908-368-1025︱www.modwayfurniture.com
3
6
2 Seat Cushion x1
6 Seat Frame x1
Hardware:
A.
B.
C.
5
3 Back Frame x1
7 Leg x4
Bolt M8x60mm
x 10
Flat Washer M8
x 10
Allen Wrench
x1
4 Left Arm x1
Page 1 of 5
Advertisement
Table of Contents
Related Manuals for modway EEI-3045
Summary of Contents for modway EEI-3045
- Page 1 EEI-3045 Chair Thank you for purchasing the MODWAY CHAIR. Before you start, here are some helpful advice: 1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions. 2. Owing to the size and weight of the chair, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 EEI-3045 Chair STEP 1: Please take t he compressed Seat Cushions (2), Back Cushions (1), all Legs and hardwares bag from the bottom of Seat Frame (6). Carefully remove plastic packaging of the compressed Seat Cushions (2) and Back Cushions (1).
- Page 3 EEI-3045 Chair STEP 3: Attach Left Arm (4) to the side of Seat Frame (6) by using 4 pieces of Bolts (A) with 4 pieces of Flat Washers (B) as shown. Tighten Bolts (A) by using Allen Wrench (C) as shown. Don't tight Bolts (A) fully.
- Page 4 EEI-3045 Chair STEP 5: Slide the two clips of Back Frame (3) to the clips of the side of the Left Arm (4), Right Arm (5) by hand in the direction of the arrow as shown. STEP 6: Insert 2 pieces of Bolts (A) with 2 pieces of Flat Washers (B) into the pre-drilled holes on Seat Frame (6) .
- Page 5 EEI-3045 Chair STEP 7: Put Back Cushion (1) and Seat Cushion (2) to the assembled chair as shown. Assembly is complete. Your Chair is ready to be used now! Customer Service 908-368-1025︱www.modwayfurniture.com Page 5 of 5...
