How to connect sofa sectional for
EEI-4394/4395 & EEI-4396/4397 & EEI-4398/4399 & EEI-4400/4401 & EEI-4402/4403
Thank you for purchasing the MODWAY CORNER/ CHAIR/ OTTOMAN
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2. Owing to the size and weight of the sofa section, we recommend that it is assembled by two adults, on a
carpeted or padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
and environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten
the components from time to time, so please save the tools that have been provided.
6. Please keep all pieces out of reach of children.

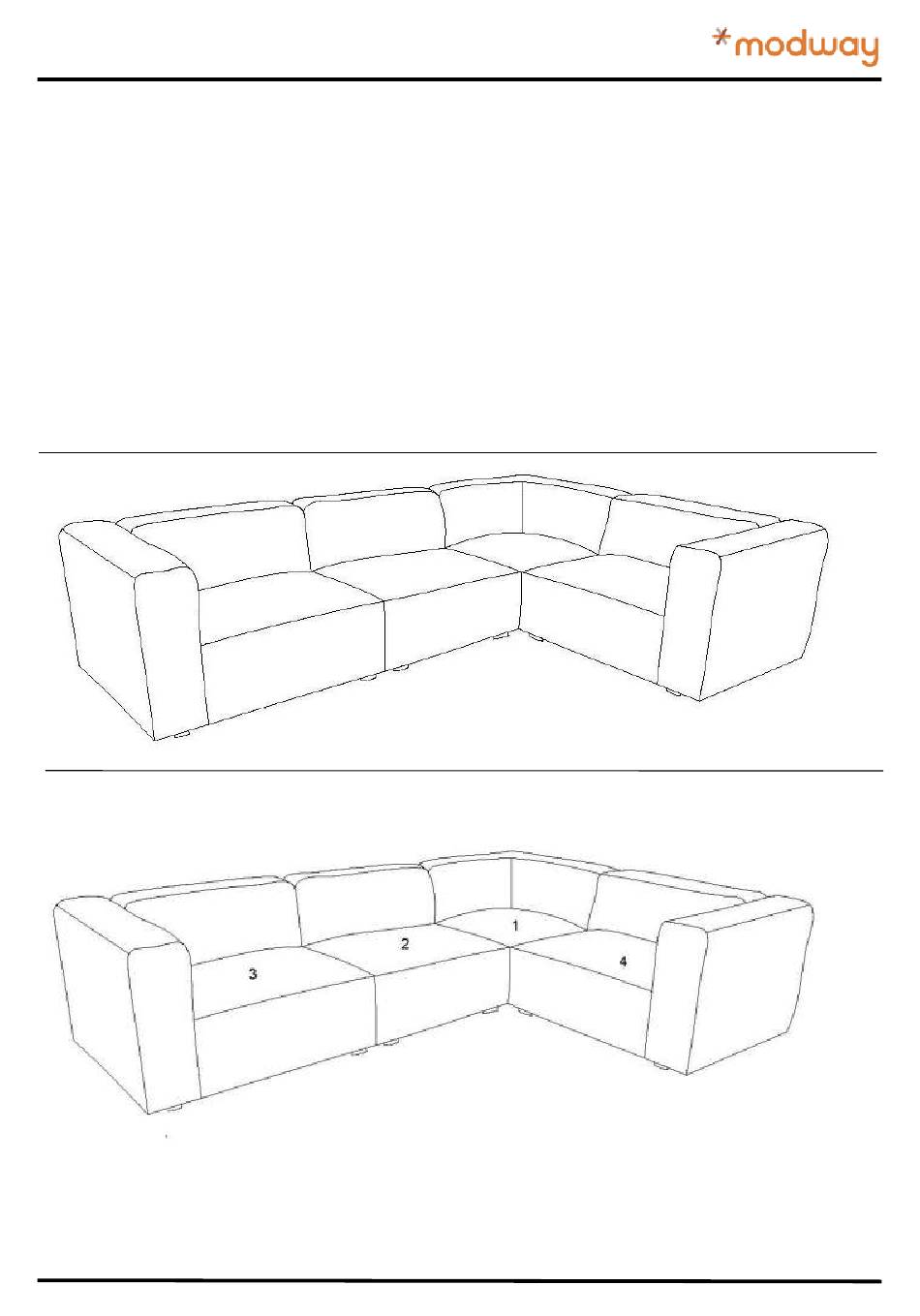

Components:
1. EEI-4402/EEI-4403 Corner
3. EEI-4396/EEI-4397 Left Arm Chair
Customer Service 609-256-9000︱www.modway.com
x1
2.EEI-4398/EEI-4399 Armless Chair
x1
4. EEI-4394/EEI-4395 Right Arm Chair
x1
x1
Page 1 of 7
Advertisement
Table of Contents
Related Manuals for modway EEI-4394
Summary of Contents for modway EEI-4394
- Page 1 How to connect sofa sectional for EEI-4394/4395 & EEI-4396/4397 & EEI-4398/4399 & EEI-4400/4401 & EEI-4402/4403 Thank you for purchasing the MODWAY CORNER/ CHAIR/ OTTOMAN Before you start, here are some helpful advice: 1. We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions.
- Page 2 EEI-4402/4403 Corner (1) . 2. Align the pre-installed Clip to the pre-installed Post as shown. 3. Push EEI-4398/4399 Armless Chair (2) and EEI-4394/4395 Right Arm Chair (4) slowly until the Clip and the Post click together tightly. Customer Service 609-256-9000︱www.modway.com...
- Page 3 How to connect sofa sectional for EEI-4394/4395 & EEI-4396/4397 & EEI-4398/4399 & EEI-4400/4401 & EEI-4402/4403 STEP 3: 1. Put EEI-4396/4397 Left Arm Chair (3) close to EEI-4398/4399 Armless Chair (2). 2. Align the pre-installed Clip to the pre-installed Post as shown.
- Page 4 1. Lift up EEI-4402/4403 Corner (1) and move EEI-4398/4399 Armless Chair (2) apart from EEI-4402/4403 Corner (1) as shown. 2. Lift up EEI-4394/4395 Right Arm Chair (4) and move EEI-4394/4395 Right Arm Chair (4) apart from EEI-4402/4403 Corner (1) as shown.
- Page 5 How to connect sofa sectional for EEI-4394/4395 & EEI-4396/4397 & EEI-4398/4399 & EEI-4400/4401 & EEI-4402/4403 1. Please find the extra hardware from EEI-4400/4401 Ottoman carton. 2. Put EEI-4400/4401 Ottoman upside down on a carpeted or padded area. 3. If you want to adjust the position of the installed Post/Clip, please use Phillip Head Screwdriver (Not provided) Tighten all Screws unscrew screw counterclockwise;...
- Page 6 How to connect sofa sectional for EEI-4394/4395 & EEI-4396/4397 & EEI-4398/4399 & EEI-4400/4401 & EEI-4402/4403 If you want to lock EEI-4400/4401 Ottoman to the sofa combination, the assembly instruction is as the following: Customer Service 609-256-9000︱www.modway.com Page 6 of 7...
- Page 7 How to connect sofa sectional for EEI-4394/4395 & EEI-4396/4397 & EEI-4398/4399 & EEI-4400/4401 & EEI-4402/4403 Customer Service 609-256-9000︱www.modway.com Page 7 of 7...
