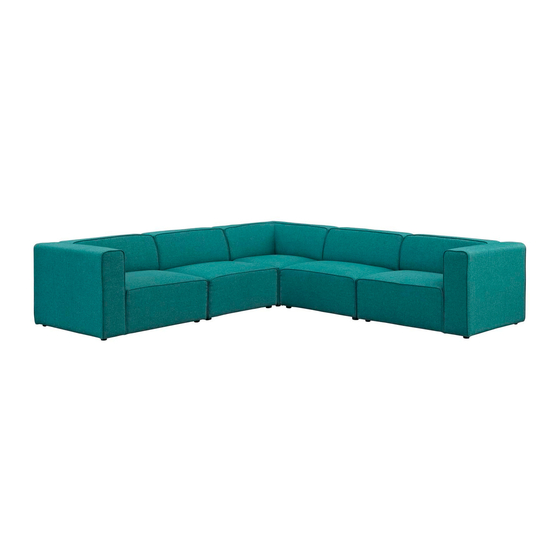

How to connect sofa sectional for EEI-2720/ EEI-2721&EEI-2722/ EEI-2723
& EEI-2724/ EEI-2725& EEI-2726/ EEI-2727& EEI-2728/ EEI-2729
Thank you for purchasing the MODWAY SOFA!
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2.Owing to the size and weight of the sofa section, we recommend that it is assembled by two adults, on a
carpeted or padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or instructions until you have checked all the components and
hardware and the furniture is fully assembled.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all pieces out of reach of children.
Component:
1
EEI-2728/EEI-2729 Corner Seat
3
EEI-2720/ EEI-2721
Customer Service 908-368-1025︱www.modwayfurniture.com
3
x1
Left Arm Chair
x1
1
2
2
EEI-2724/ EEI-2725
4
EEI-2722/ EEI-2723
4
Armless Chair
x1
Right Arm Chair
x1
Page 1 of 6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for modway EEI-2720
Summary of Contents for modway EEI-2720
- Page 1 How to connect sofa sectional for EEI-2720/ EEI-2721&EEI-2722/ EEI-2723 & EEI-2724/ EEI-2725& EEI-2726/ EEI-2727& EEI-2728/ EEI-2729 Thank you for purchasing the MODWAY SOFA! Before you start, here is some helpful advice: 1.We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions.
- Page 2 How to connect sofa sectional for EEI-2720/ EEI-2721&EEI-2722/ EEI-2723 & EEI-2724/ EEI-2725& EEI-2726/ EEI-2727& EEI-2728/ EEI-2729 STEP 1: Please carefully place EEI-2728/2729 Corner Seat (1) at your desired location. Pre-installed Post on the bottom of Corner Seat Pre-installed Clip on the...
- Page 3 Assembly is complete. Your sofa combination is ready to be used now! If you want to unlock the sofa combination: Lift up EEI-2724/2725 Armless Chair (2) and move EEI-2720/2721 Left Arm Chair (3) apart from EEI-2724/2725 Armless Chair (2) .
- Page 4 How to connect sofa sectional for EEI-2720/ EEI-2721&EEI-2722/ EEI-2723 & EEI-2724/ EEI-2725& EEI-2726/ EEI-2727& EEI-2728/ EEI-2729 Lift up EEI-2728/2729 Corner Seat (1) and move EEI-2724/2725 Armless Chair (2) apart from EEI-2728/2729 Corner Seat (1) as shown. Lift up EEI-2722/2723 Right Arm Chair (4) and move EEI-2722/2723 Right Arm Chair (4) apart from EEI-2728/2729 Corner Seat (1).
- Page 5 ASSEMBLY FOR EEI-2726/ EEI-2727 OTTOMAN Please find the extra hardware from EEI-2726/2727 Ottoman carton. Put EEI-2726/2727 Ottoman upside down on a carpeted or padded area. Place the required Post/Clip to the pre-marked position on the bottom of EEI-2726/2727 Ottoman as shown. Insert the Screws to the bottom of EEI-2726/2727 Ottoman through Clip/Post as shown.
- Page 6 ASSEMBLY FOR EEI-2726/ EEI-2727 OTTOMAN If you want to lock EEI-2726/2727 Ottoman to the sofa combination, the assembly instruction is as the following: EEI-2722/2723 EEI-2724/2725 EEI-2724/2725 EI-2720/2721 Right Arm Chair Armless Chair Armless Chair Left Arm Chair EI-2726/2727 Ottoman Option A EEI-2722/2723 EEI-2724/2725 EI-2720/2721...
