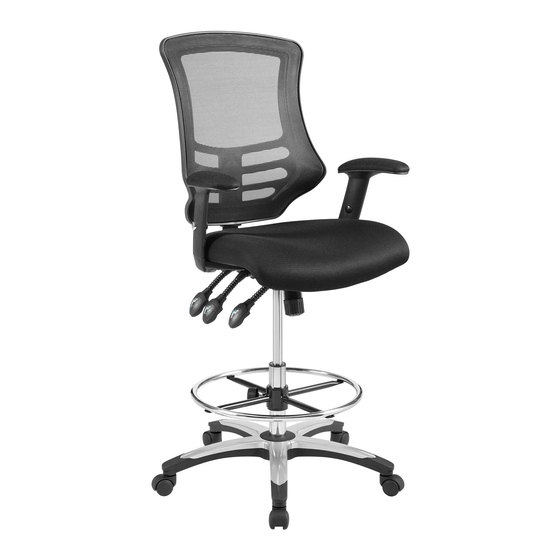

EEI –3043 Office Chair
Thank you for purchasing the MODWAY OFFICE CHAIR .
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2.Owing to the size and weight of the chair, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or the instruction until you have checked all the components
and hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
and environmentally friendly way.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all fitting out of reach of children.
Component:
1
Base x1
2 Cylinder Column x1
6 Right Arm x1 7 Left Arm x1
Customer Service 908-368-1025︱www.modwayfurniture.com
5
6
9
3
8
3 Control Mechanism x1
8 Castor x5
Hardware:
A.
B.
C.
D.
E.
7
4
2
10
1
8
9 Knob x1
Bolt M6x20mm
Bolt M6x30mm
Bolt M6x40mm
Flat Washer M6
Allen Wrench
4 Seat x1
5 Back Frame x1
10 Foot Ring x1
Page 1 of 5
x 2
x 2
x 6
x 6
x1
Advertisement
Related Manuals for modway EEI-3043
Summary of Contents for modway EEI-3043
- Page 1 EEI –3043 Office Chair Thank you for purchasing the MODWAY OFFICE CHAIR . Before you start, here is some helpful advice: 1.We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions. 2.Owing to the size and weight of the chair, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
- Page 2 EEI –3043 Office Chair STEP 1: Please put Base (1) on a carpeted or padded surface. Insert 1 piece of Castor (8) into the Base (1) as shown by hand. Repeat the same steps for the remaining 4 pieces of Castors (8). STEP 2: Carefully turn over the assembled base from step 1.
- Page 3 EEI –3043 Office Chair STEP 3: Insert the Foot Ring (10) into the assembled Cylinder Column (2) at your desired height，but at least one inch from the top of the outer circle of Cylinder Column (2). Tighten the knob by hand on the Foot Ring (10) and follow the direction of the arrow as shown. 1 inch Top of the Foot Ring...
- Page 4 EEI –3043 Office Chair STEP 5: Attach Control Mechanism (3) to the Seat (4) by using 2 pieces of Bolts (A) and 2 pieces of Bolts (B) as shown. Tighten Bolts (A) & (B) by using Allen Wrench (E) as shown. FRONT Hardware &...
- Page 5 EEI –3043 Office Chair STEP 7: Insert the Back Frame (5) to the Control Mechanism (3) hole as shown, use Knob (9) to lock it tightly. STEP 8: Assembly is completed. Your office chair is ready to be used now! Customer Service 908-368-1025︱www.modwayfurniture.com Page 5 of 5...
