CONVERSION TO LP GAS MUST BE PERFORMED
BY A CERTIFIED GAS TECHNICIAN:
LP Conversion Kit Model K00AA4615 must be used. Sold separately.
Conversion kit to be used ONLY with SABER EZ Outdoor Kitchen.
© 2015 Saber Grills, LLC. Columbus, GA 31902
1
Printed in USA

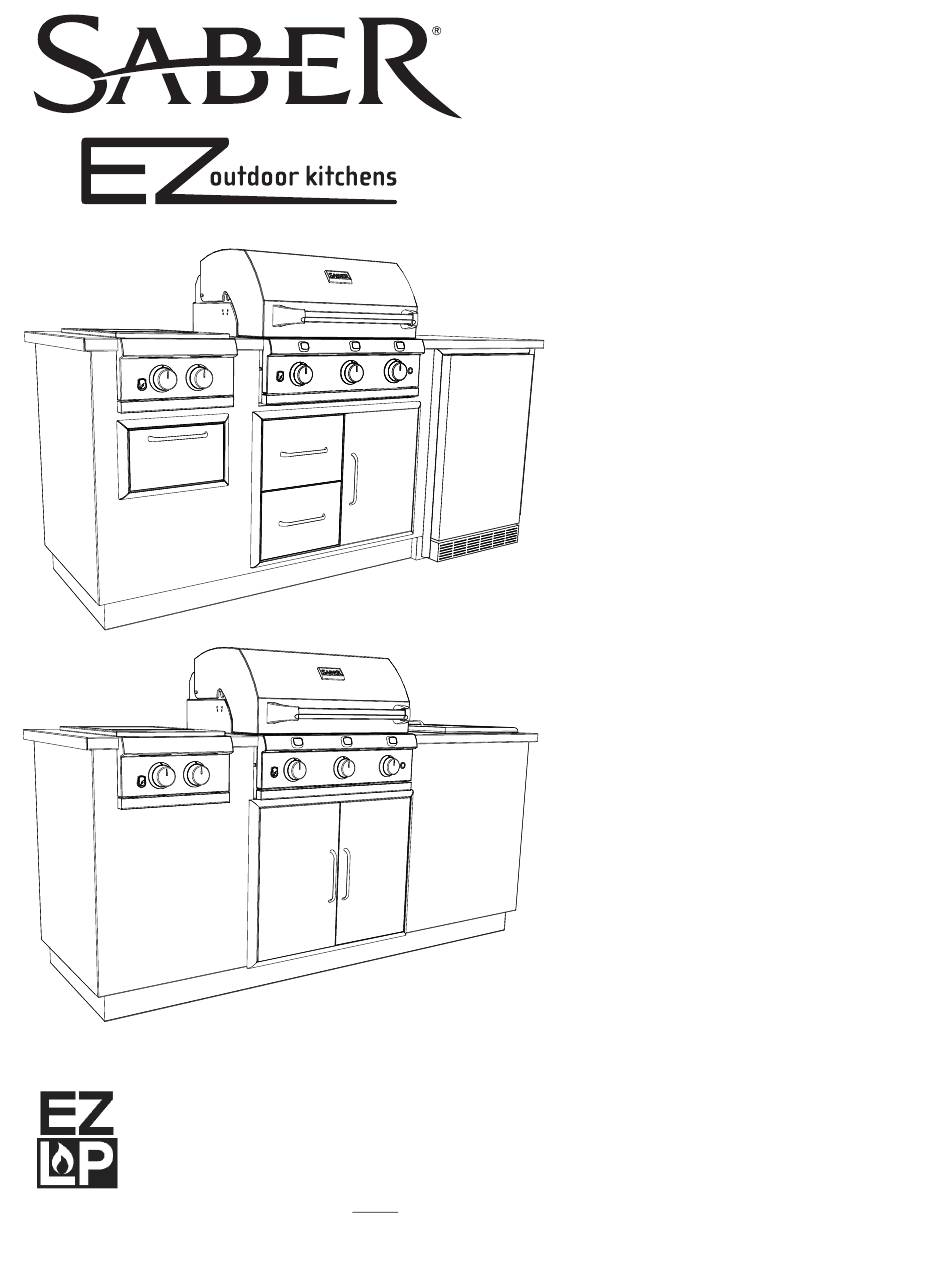

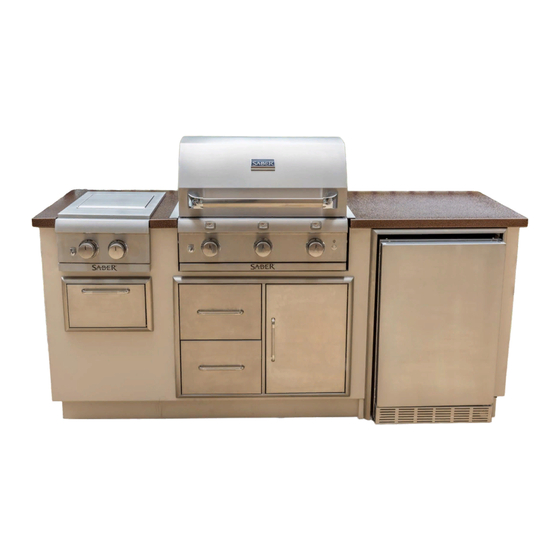

PRODUCT GUIDE
MODEL I50LK2015
If you have questions or need
assistance during assembly,
please call:
R Series
For support and to register
your grill, please visit us at:
Estimated island assembly time:
For patents see www.sabergrills.com/patents
I Series
Assembly instructions © 2015
I50LK2115
I50LK2215
I50LK2315
1-888-947-SABER
1-888-947-2237
www.sabergrills.com
45 minutes
08/25/15 • 80025233
Advertisement
Table of Contents
Related Manuals for Saber Compact EZ R Series
Summary of Contents for Saber Compact EZ R Series
- Page 1 PRODUCT GUIDE MODEL I50LK2015 I50LK2115 I50LK2215 I50LK2315 If you have questions or need assistance during assembly, please call: 1-888-947-SABER R Series 1-888-947-2237 For support and to register your grill, please visit us at: www.sabergrills.com Estimated island assembly time: 45 minutes For patents see www.sabergrills.com/patents I Series CONVERSION TO LP GAS MUST BE PERFORMED...
-
Page 2: Table Of Contents
Thank you for purchasing the SABER EZ Outdoor Kitchen INSTALLER/ASSEMBLER: TABLE OF CONTENTS This manual provides all of the information needed to enjoy Leave this manual with consumer. your kitchen for years to come. Your dealer can help you CONSUMER: understand if your city or county requires any permits for Keep this manual for future reference. - Page 3 WARNING WARNING CALIFORNIA PROPOSITION 65 For Safe Use of Your Grill and to avoid serious injury: 1. Combustion by-products produced when using this Do not let children operate or play near grill. Ÿ product contain chemicals known to the State of California Keep grill area clear and free from materials that burn.
-
Page 4: Delivery Plan
Additional Safety Tips SETUP AFTER DELIVERY When grill is not in use, turn off all control knobs and the Ÿ natural gas shut-off valve (external to the kitchen enclosure). IMPORTANT Use long-handled barbecue utensils and oven mitts to Ÿ avoid burns and splatters. For more detailed information on installing your grill, The grease tray must be inserted into grill during use and Ÿ... -
Page 5: Location Planning
Foundation for the Kitchen LOCATION PLANNING A solid and level foundation is necessary for the installation of the EZ Outdoor Kitchen. Damage caused by inadequate or improper The following should be considered when determining foundation support is not covered by the warranty. It is the where to place your new EZ Outdoor Kitchen. -
Page 6: Electrical Connections
The lighting voltage transformer can be mounted on the electrical ELECTRICAL CONNECTIONS panel using four drill point screws in the hardware pack. Plug it Electrical Requirements into the GFCI outlet located inside the rear panel of the kitchen. IMPORTANT Prior to construction, confirm with your dealer if any permits are required to comply with the state and local codes for electrical installation. -
Page 7: Natural Gas Connection
NATURAL GAS CONNECTION Step 1: Correctly Sizing the Natural Gas Supply Line In most cases, a pipe diameter of ½” to ¾” is sufficient to connect your outdoor kitchen to your home’s natural gas IMPORTANT supply system. The correct pipe size depends on the following: Prior to construction, confirm with your dealer if any 1. -
Page 8: Ice Chest Drainage
Step 3: Gas Connections Inside the Kitchen Enclosure Step 4: Leak Check All Gas Connections Prior to connecting the gas supply lines to both the grill and Prior to first use, leak check all gas connections made the side burner, the natural gas appliance regulators should both inside and outside the kitchen enclosure with be installed to the ½”... -
Page 9: Cleaning And Care Instructions
CLEANING AND CARE INSTRUCTIONS Stainless Steel Regular cleaning and maintenance promotes the beauty of your SABER EZ Outdoor Kitchen and ensures a lifetime of All exposed stainless steel surfaces require special attention if use. you want to keep them looking clean and bright. Following these simple instructions will help avoid scratching or We recommend regular care and cleaning of your outdoor damaging the finish and keep your stainless steel attractive. -
Page 10: Parts Lists
R-Series Parts List and Diagram QTY DESCRIPTION OUTER SIDE PANELS R-SERIES INNER PANEL R-SERIES CORNER PANEL R-SERIES BACK PANEL R-SERIES COUNTER TOP R-SERIES BASE BOARD R-SERIES FRONT PANEL R-SERIES FLOOR PANEL GRILL SUPPORT BRACKET KIT ELECTRICAL OUTLET PANEL EXTERNAL ELECTRICAL OUTLET COVER PANEL GFCI ELECTRICAL KIT GROMMET IGNITOR WIRE EXTENSION KIT (GRILL) -
Page 11: Warranty Terms
Item Warranty Term Painted Aluminum EZ Outdoor Kitchen Structure (frames/panels/construction) 5 years (excludes damage due to improper assembly or exposure to water and/or sub- freezing temperatures) Coatings 2 years no peeling, cracking, or blistering (excludes fading and abrasions) All Other Parts 2 years SPECIFIC WARRANTY COVERAGES FOR THE GRILL, DUAL SIDE BURNER, REFRIGERATOR, AND OTHER KITCHEN COMPONENTS CAN BE FOUND IN THEIR RESPECTIVE PRODUCT GUIDES. - Page 12 This warranty applies only to the original kitchen component owner and cannot/may not be transferred. This warranty does not apply to damages resulting from negligence, alteration, misuse, abuse, accident, natural disaster, loss of electrical power to the product for any reason, improper installation or improper operation, unauthorized adjustments or calibrations, dings, dents, scratches, or damages due to harsh cleaning chemicals.
- Page 13 Utilize our online customer service at: http://www.sabergrills.com/warrantyservice Call Saber directly at: 1-(888)-94S-ABER (947-2237) Or write us at: Saber ® Warranty Service P.O. Box 1977 Columbus, GA 31902 Please be prepared to furnish the following information: Purchaser’s name, model and serial number of the outdoor kitchen component (grill, side burner, or refrigerator, date of purchase and the accurate description of the problem.
