Volvo Trucks North America, Inc.
Greensboro, NC USA
Satellite Communication System

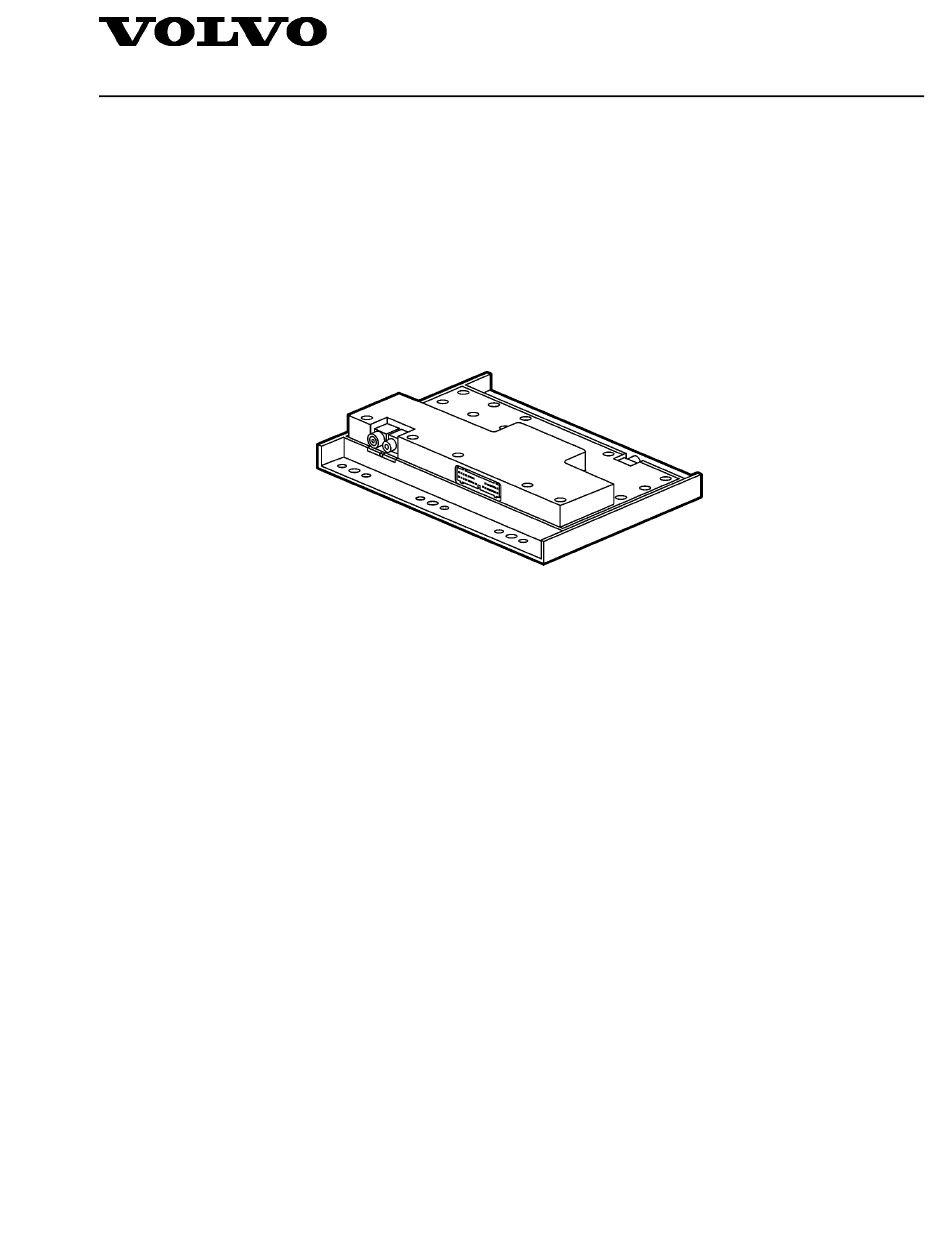

Volvo Link ECU
The Volvo Link System provides satellite communications between a driver and fleet. It
includes the Volvo Link ECU, GPS antenna, cable, and wiring harnesses. Some vehi-
cles also include a dash switch. This system allows communications between Volvo's
Web based (fleet) software and the vehicle.
This information includes design and troubleshooting of the vehicle portion of the sys-
tem. For repair procedures, see service procedures in group 397. For fleet software
troubleshooting, see the software help file.
This information contains:
•
"System Operation" page 3
•
"Simplified Schematic" page 12
•
"System Definitions" page 13
•
"MID 142 Satellite Communication" page 14
PV776-TSP156441
Service Bulletin
Date
Group
No.
397 001
3.2002
Volvo Link System
Design and Troubleshooting
W3004840
Trucks
Page
1(32)
USA10063
Advertisement
Table of Contents
Related Manuals for Volvo Link System
Summary of Contents for Volvo Link System
- Page 1 W3004840 Volvo Link ECU The Volvo Link System provides satellite communications between a driver and fleet. It includes the Volvo Link ECU, GPS antenna, cable, and wiring harnesses. Some vehi- cles also include a dash switch. This system allows communications between Volvo’s Web based (fleet) software and the vehicle.
-
Page 2: Special Tools
Page 2 Tools Special Tools See the special tool information in group 08 for ordering instructions. J-39200 J-43234 9998551 with J-43340 Fluke Multimeter 30-pin Breakout Harness 60-pin Breakout Box with Overlay... -
Page 3: Design And Function
The Volvo Link ECU is programmed differently for Cummins and Volvo engines. At the time of the original installation in the vehicle, the Volvo Link ECU acquires the Vehicle Identification Number (VIN) of the vehicle in which it is installed. Replacement of the ECU with one from another vehicle will not work. -
Page 4: System Diagram
Page 4 System Diagram W3004841 Volvo Link System Multiplex Whip Antennas RAMI Antenna Multiplexer box GPS Antenna Volvo Action Service Dash Switch Switch Illumination Radio *Switch is not available in all vehicles. -
Page 5: Sending And Receiving Messages
For more information on using the graphic display con- trols, see the Operator’s Manual, or service information on “Instrumentation” in group 38. Using the Graphic Display The Volvo Link menu should be the first item shown " VOLVO LINK in the graphic display. Use the up/down buttons to highlight it. - Page 6 Messages are received at the vehicle from the fleet operator. When a message is re- ceived by the Volvo Link ECU, the driver will be notified with the INFO lamp and a message in the instrument cluster’s graphic display. The message will appear one of...
-
Page 7: Viewing Messages
3.2002 7(32) Viewing Messages To view all stored messages, select “Volvo Link,” then “Read Messages” in the cluster’s graphic display. The messages will display, one at a time, with the most recent message shown first. Once the newest message is displayed, the driver can use the Up/Down buttons to scroll through the other messages. - Page 8 Page 8 Sending Messages from the Vehicle The driver of the vehicle can send messages from the vehicle to the fleet. Messages can be sent when the vehicle is stopped, but not while it is moving. If you attempt to send a message when the vehicle is moving, an error message will display, and the message will not be sent.
- Page 9 Wait briefly and try sending the message again. It may also be an indication that the Volvo Link ECU has been placed in the wrong vehicle (see “Cannot Send or Receive Messages, but No Fault Code” page 31 for more information).
- Page 10 Total miles, Total Idle Fuel used, Total Fuel used, Total Engine Idle hours, Total Engine hours, Vehicle Location (GPS). This data can be requested by the Web or can be set up in the Volvo Link ECU to be sent at predetermined time intervals.
-
Page 11: Ecu Pinout
J1587/1708+ J1587/1708 Data Link + INPUT1 (PWR) Ignition Supply (+) INPUT5 (GND) Volvo Action Service Dash Switch (not available in all vehi- cles) J1587/1708- J1587/1708 Data Link - NOTE: Pins 3, 5–13, 16–18 and 20–29 are not used. -
Page 12: Simplified Schematic
* “SW” is the Volvo Action Service dash switch, which is not available in all vehicles. Note: This simplified schematic should be used only to clarify the design features of the Volvo Link system. For detailed, vehicle-specific schematics, see the “VN/VHD Electrical Schematics” in Group 37. -
Page 13: System Definitions
– no text description. maintenance systems) that Volvo Link Volvo Link System. A satellite are compatible with the ATA communciation system inte- and SAE standard. grated into Volvo vehicles. It... -
Page 14: Troubleshooting
Page 14 Troubleshooting MID 142 Satellite Communication For Fault Based troubleshooting, see: • “Fault Code Troubleshooting” page 15 For Symptom Based troubleshooting, see: • “Troubleshooting the Messages Shown in the Graphic Display” page 29 • “Cannot Send or Receive Messages, but No Fault Code” page 31 •... - Page 15 Volvo Trucks North America, Inc. Date Group Page Service Bulletin 3.2002 15(32) Fault Code Troubleshooting The system has several failure conditions that can be detected by the ECU. Some of these conditions could be loss of data link and signals, output failures and GPS failures.
- Page 16 (see also PSID 5,6) MID 142 - PSID 004 GPS module/interface 2=bad GPS antenna, 12=bad Power and ground to Volvo Link ECU. See “MID 142 PSID 004 FMI 2 GPS An- tenna/Interface” page 25 and “MID 142 PSID 004 FMI 12 GPS Module/Interface”...
- Page 17 Missing update rate “MID 142 PSID 009 FMI 9 J1587/1708 Data Link Missing” page 28. NOTE: PSID is a Volvo Proprietary SID. Note that PSID’s will only show a numeric value in the graphic dis- play – no text description.
-
Page 18: Engine Faults
If there are no related faults on MID 128, the problem is most likely in the data link wiring or connections between the engine system and the Volvo Link ECU. Begin checking at the Volvo Link ECU, and the wiring connecting it to the data link. See the simplified schematic. - Page 19 Volvo Trucks North America, Inc. Date Group Page Service Bulletin 3.2002 19(32) Composite Fault Codes If you receive a fault containing SID 250 or 254, you Display for SID 250: must first check for other faults using VCADS Pro. MID142...
-
Page 20: General Information
• Key switch position: ON • Measuring: Voltage measurement at Truck Elec- trical Center (TEC) or Volvo Link ECU • Adapter J-43234 to be connected to the blue JAE connector on the ECU when applicable. Use the 30–pin side of Overlay J-43340. - Page 21 Conditions - Volvo Link requested VIN information from both the Cluster (MID 234) and Engine(MID 128). • Cause - Volvo Link requested VIN information and did not receive it due to missing/incorrect data in the ECUs. • Reaction from control unit - Set Active Fault.
- Page 22 This data is received from the J1587/1708 datalink as well as being calculated internally. The internally calcu- lated data is the total accumulated distance the vehicle has been driven since the installation of the Volvo Link system. Fault code FMI 9: Abnormal Update Rate This displays in the instrument cluster as “MID 142, Total Vehicle Dist, Communication Error”...
- Page 23 Volvo Action Service switch input, Orbcomm and GPS will be ignored. • Checks - If this fault code is reported, then the Volvo Link ECU is considered to contain fatal errors and the unit must be replaced.
- Page 24 Volvo Action Service switch input, Orbcomm and GPS will be ignored. • Checks - If this fault code is reported, then the Volvo Link ECU is considered to contain fatal errors and the unit must be replaced.
- Page 25 • or if there are no communications with the GPS module portion of the ECU for more than 1 minute. Check power and ground to Volvo Link ECU. Also check antenna connections at ECU and GPS antenna. Fault code FMI 2 Bad Antenna This displays in the instrument cluster as “MID142, PSID004, Data Error”...
- Page 26 All incoming mes- sages from datalink, ignition, Volvo Action Service switch input, Orbcomm and GPS will be ignored. • Checks - If this fault code is reported, the Volvo Link ECU is considered to contain fatal errors and should be replaced.
- Page 27 MID 142 PSID 006 FMI 2 Orbcomm Satellite Communications Mod- ule/Interface General Information The Volvo Link ECU polls the ORBCOMM network for satellite status. During a specified interval, ongoing communication is expected to be maintained. The ORB- COMM module is part of the Volvo Link ECU.
- Page 28 MID 142 PSID 009 FMI 9 J1587/1708 Data Link Missing General Information Indicates an expected input to the Volvo Link ECU from the data link is missing. This indicates the Volvo Link ECU has detected “ignition on” with no data link activity.
- Page 29 Measuring: Voltage measurement at Truck Electrical Center (TEC) or Volvo Link ECU • Adapter J-43234 to be connected to the blue JAE connector on the Volvo Link ECU when applicable. Use the 30–pin side of overlay J-43340. Function Check Expected...
- Page 30 The ECU is working properly, but has not been properly Message Sent configured by the Web site to allow the type of action re- This message is displayed when the Volvo Link ECU has quested. received a message to be sent to the web site. The...
- Page 31 Symptom: Reason: • If the VINs do not match, the Volvo Link ECU has The driver consistently sees the Sending Not Al- been placed in the wrong vehicle. This means the lowed when he tries to send a message (but the ECU has been tampered with: i.e.
-
Page 32: Preliminary Checks
Reception with antenna con- Radio and antenna system are OK. Fault may be in the nected directly to the radio Volvo Link ECU or cables. Check fault codes and test with VCADS Pro. Not OK Fault may be in the antenna system. See Service Infor- mation on antenna troubleshooting in group 39, "Audio...
