Champion 100204 Technical Bulletin

Recoil install for 3kw inverters
Hide thumbs Also See for 100204:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
Recoil Install for 3KW Inverters
This covers the following models (Read completely before performing service):
• 100204
• 100387
• 75537i
• 100476
• 100396
• 100233
• 100264
• 100262

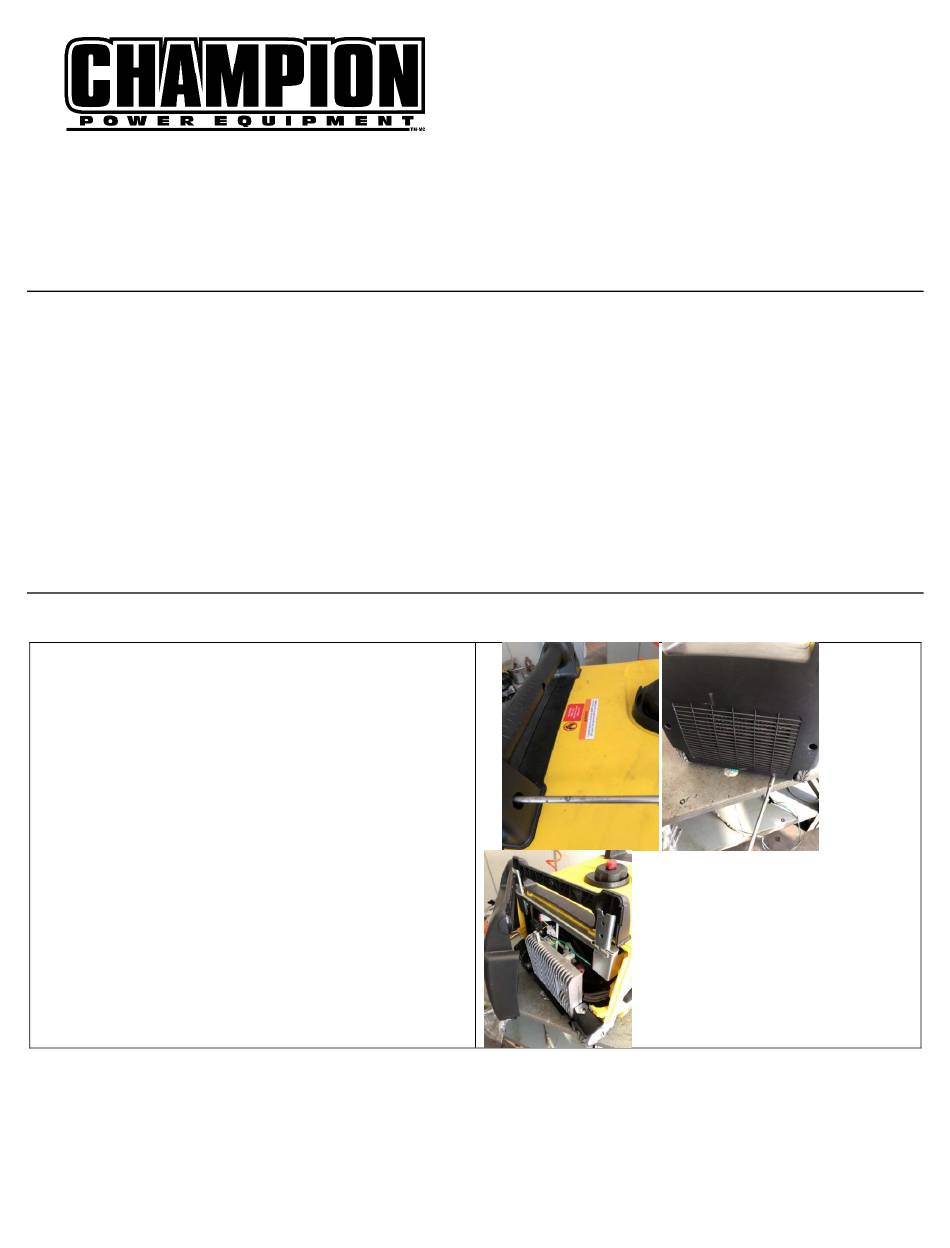

Unscrew the screws and bolts for the left side
1.
panel.
11/8/18
Technical Bulletin
Number: 181108-60-50-2
Date: 11/8/18
• 100158
• 100523
• 75531i
• 100477
• 100263
• 100269
• 100261
• All similar body style inverters
1
Champion Power Equipment, Inc.

Advertisement

loading

  Also See for Champion 100204

Champion 75537i Manual
Champion 75537i Manual 11 pages

  Related Manuals for Champion 100204

  Summary of Contents for Champion 100204

  • Page 1 • 75531i • 100476 • 100477 • 100396 • 100263 • 100233 • 100269 • 100264 • 100261 • 100262 • All similar body style inverters Unscrew the screws and bolts for the left side panel. 11/8/18 Champion Power Equipment, Inc.
  • Page 2 (4) bolts. Take out the battery and unplug all connectors on the controller module and remove the whole bracket) Loosen the cable holder on the recoil cover. 11/8/18 Champion Power Equipment, Inc.
  • Page 3 Take out the recoil assembly with the handle orientation plate. Pull rope out for some length and secure a stop- knot at the recoil cover end. 11/8/18 Champion Power Equipment, Inc.
  • Page 4 Remove the recoil handle and orientation plate. Unscrew the bolts of the recoil cover and remove the recoil assembly 8. Put the new spring into the pulley if need to replace a new spring. 11/8/18 Champion Power Equipment, Inc.
  • Page 5 Feed the rope out to the hole of recoil cover and pull it through the guide hole on the outside of the recoil cover. Place the guide plate / pull handle on the rope and secure with a stop-knot. 11/8/18 Champion Power Equipment, Inc.
  • Page 6 12. Place the (2) detent springs as shown Put 2 detents into the spring positions with some lubricant. Note the detents must press the springs when install the detents. 11/8/18 Champion Power Equipment, Inc.
  • Page 7 14. Put the bolt with some lubricant into the press plate, and then put a spring to the bolt. The bolt thread can have some locking glue. Put the press plate assembly onto the detents, and then tighten the bolt. 11/8/18 Champion Power Equipment, Inc.
  • Page 8 Install the new recoil assembly. Tighten the cable holder on the recoil cover. Install the orientation plate. Re-install the controller module. To check all wire harness and connectors at the suitable position after installation. 11/8/18 Champion Power Equipment, Inc.
  • Page 9 Re-install the left panel. If you have any questions regarding the previous procedure, please contact our technical department Monday-Friday from 8:30 AM-5:00 PM PST at 877-338-0999. If you have any questions, please contact Champion Power Equipment: Champion Power Equipment, Inc. 12039 Smith Ave.
