Champion 100261 Owner's Manual & Operating Instructions

3400 starting watts / 3100 running watts wireless remote, electric start portable inverter generator
Hide thumbs Also See for 100261:
Table of Contents

Advertisement

Quick Links

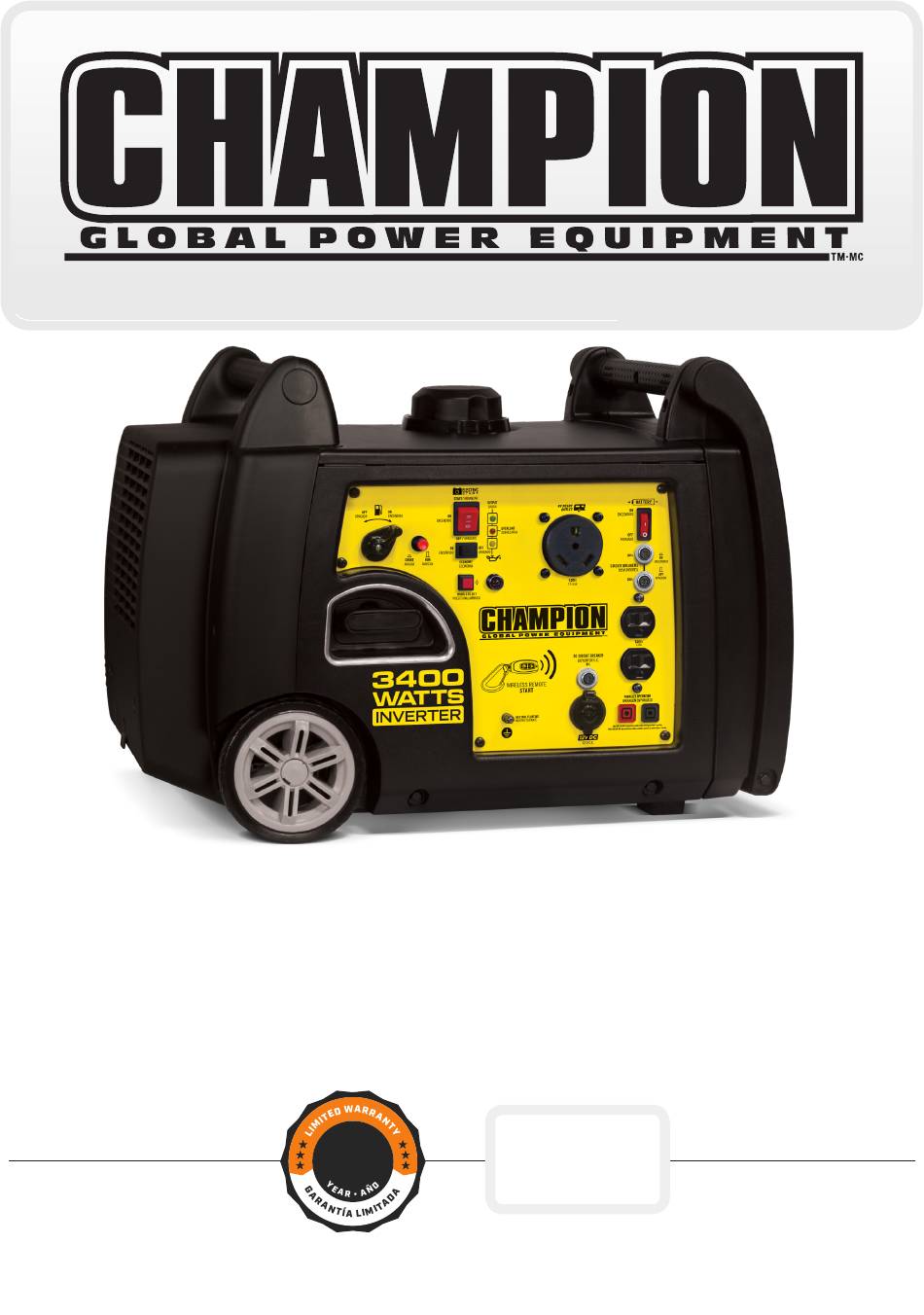

3400 Starting watts / 3100 Running watts
Wireless remote, electric start
PORTABLE INVERTER GENERATOR
SAVE THESE INSTRUCTIONS
Important Safety Instructions
are included in this manual.
OWNER'S MANUAL & OPERATING INSTRUCTIONS
3
100261
MADE IN CHINA
REV 100261-20181227
MODEL NUMBER
www.championpowerequipment.com
12039 Smith Ave.
Santa Fe Springs CA 90670 USA
1-877-338-0999

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 100261 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Champion 100261

Summary of Contents for Champion 100261

  • Page 1 3400 Starting watts / 3100 Running watts Wireless remote, electric start PORTABLE INVERTER GENERATOR MODEL NUMBER 100261 12039 Smith Ave. SAVE THESE INSTRUCTIONS Santa Fe Springs CA 90670 USA Important Safety Instructions 1-877-338-0999 MADE IN CHINA are included in this manual. REV 100261-20181227 www.championpowerequipment.com...
  • Page 2 FCC Statement This device complies with Part 15 of the FCC Rules. accordance with the instructions, may cause harmful Operation is subject to the following two conditions: interference to radio communications. However, there (1) This device may not cause harmful interference. is no guarantee that interference will not occur in a (2) This device must accept any interference particular installation.

  • Page 3: Table Of Contents

    100261 3400 Starting Watts / 3100 Running Watts Wireless Remote, electric start PORTABLE INVERTER GENERATOR TABLE OF CONTENTS Introduction ......

  • Page 4: Introduction

    Congratulations on your purchase of a Champion Power Equipment product. Champion Power Equipment and Champion Engine Technology designs, builds, and supports all of our products to strict specifications and guidelines. With proper product knowledge, safe use, and regular maintenance, this product should bring years of satisfying service.

  • Page 5: Manual Conventions

    100261 ENGLISH MANUAL CONVENTIONS This manual uses the following symbols to help differentiate between different kinds of information. The safety symbol is used with a key word to alert you to potential hazards in operating and owning power equipment. Follow all safety messages to avoid or reduce the risk of serious injury or death.

  • Page 6: Safety Rules

    100261 ENGLISH SAFETY RULES WARNING DANGER Generator produces powerful voltage. Read this manual thoroughly before operating your generator. Failure to follow instructions could result DO NOT touch bare wires or receptacles. in serious injury or death. DO NOT use electrical cords that are worn, damaged or frayed.
  • Page 7 100261 ENGLISH SAFETY RULES DANGER WARNING Fuel and fuel vapours are highly flammable and Rapid retraction of the starter cord will pull hand and extremely explosive. arm towards the engine faster than you can let go. Fire or explosion can cause severe burns or death.

  • Page 8: Controls And Features

    (9) Battery Access Cover Parts Included Your 100261 gasoline powered generator ships with the following parts: – Dual 2.4A Port USB Adapter ....

  • Page 9: Power Panel

    100261 ENGLISH CONTROLS AND FEATURES Power Panel (1) Fuel Valve Knob (11) Battery Switch (2) Push-Button Choke (12) 120 Volt AC, 30 Amp Receptacle (NEMA TT-30R) – May be used to supply electrical power for the (3) Economy Control Switch...

  • Page 10: Safety Label Locations

    Safety Label Locations These labels warn you of potential hazards that can cause serious injury. Read them carefully. If a label comes off or becomes hard to read, contact Champion Power Equipment’s customer service department for possible replacement. Using a generator indoors CAN KILL...

  • Page 11: Wireless Remote Control

    (6) times. The RCM controls the Auto Choke during each attempt to start. If the generator does not start, call Champion Customer Care team for assistance at 1-877-338-0999. To stop the generator by Remote Control, press the “STOP”...

  • Page 12: Assembly

    100261 ENGLISH ASSEMBLY Your generator requires some assembly. This unit ships Connecting the Battery Cont’d. from our factory without oil. It must be properly serviced NOTE with fuel and oil before operation. If you have any questions regarding the assembly of your If the battery cables are not visible once the battery generator, call our help line at 1-877-338-0999.

  • Page 13: Add Engine Oil

    100261 ENGLISH ASSEMBLY Add Engine Oil Add Engine Oil Cont’d. CAUTION Degrees Celsiusº (Outside) DO NOT attempt to crank or start the engine before it has been properly filled with the recommended type and Full Synthetic 5W-30 amount of oil. Damage to the generator as a result of failure to follow these instructions will void your warranty.

  • Page 14: Add Fuel

    100261 ENGLISH ASSEMBLY Add Fuel Add Fuel Cont’d. Use clean, fresh, regular unleaded fuel with a NOTE minimum octane rating of 85 and an ethanol content of less than 10% by volume. Our engines work well with 10% or less ethanol DO NOT mix oil with fuel.

  • Page 15: Operation

    100261 ENGLISH OPERATION Generator Location Grounding NEVER operate the generator inside any building, The generator system ground connects the frame to the including garages, basements, crawlspaces and sheds, ground terminals on the power panel. enclosure or compartment, including the generator –...

  • Page 16: Electric And Recoil Start

    100261 ENGLISH OPERATION Electric and Recoil Start Cont’d. Electric and Recoil Start Make certain the generator is on a flat, level surface. within five seconds, release the switch and wait at Disconnect all electrical loads from the generator. least ten seconds before attempting to start the Never start or stop the generator with electrical engine again.

  • Page 17: Manual Choke Start

    100261 ENGLISH OPERATION Manual Choke Start Manual Choke Start Cont’d. If the battery is dead or not able to produce enough NOTE current to power the push button choke, the choke itself Keep choke lever in “Choke” (right) position for only can be operated manually to help start the engine.

  • Page 18: Connecting Electrical Loads

    100261 ENGLISH OPERATION Connecting Electrical Loads 12V DC Outlet Let the engine stabilize and warm up for a few The 12V DC outlet can be used with the supplied minutes after starting charge cable and USB charger and other commercially Plug in and turn on the desired 120 Volt AC single available 12V DC automotive style plugs.

  • Page 19: Do Not Overload Generator

    To alleviate high altitude issues other than the natural calculated in step 2. Surge wattage is the extra power loss, Champion Power Equipment can provide a burst of power needed to start some electric driven high altitude carburetor main jet. The alternative main equipment.

  • Page 20: Wireless Set Button

    OPERATION Wireless Set Button Parallel Operation Two (2) Champion model 100261 generators can The wireless set button is a feature that lets the user sync remotes to the generator. One can set up to two be operated in parallel to increase the total available remote controls or reset a remote control with the electrical power.

  • Page 21: Maintenance And Storage

    100261 ENGLISH MAINTENANCE AND STORAGE The owner/operator is responsible for all periodic Oil Cont’d. maintenance. NOTE WARNING Once oil has been added, a visual check should show Never operate a damaged or defective generator. oil about 1-2 threads from running out of the fill hole.

  • Page 22: Air Filter

    Service your generator more frequently when operating CAUTION in adverse conditions. Contact our help line at 1-877-338-0999 to locate the nearest Champion Power Equipment certified service DO NOT spray generator with water. dealer for your generator or engine maintenance needs. Water can contaminate the fuel system.

  • Page 23: Charge The Battery

    100261 ENGLISH MAINTENANCE AND STORAGE Generator Maintenance Cont’d. Charge the Battery For a generator equipped with batteries for electric Use a damp cloth to clean exterior surfaces of the generator. starting, proper battery maintenance and storage should Use a soft bristle brush to remove dirt and oil.

  • Page 24: Specifications

    ....1.6 gal. (6 L) Your Champion Power Equipment product is designed – Gross Weight ....

  • Page 25: Wiring Diagram

    100261 ENGLISH SPECIFICATIONS Wiring Diagram...

  • Page 26: Parts Diagram

    100261 ENGLISH SPECIFICATIONS Parts Diagram...

  • Page 27: Parts List

    100261 ENGLISH Parts List Part Number Description Part Number Description 83.200205.02 Hasp, Maintenance Cover 83.200705.02 Handle, Lower, Black Screw/Washer Assembly 2.08.055.1 Bolt, Maintenance Cover, Black 1.9074.3.0512.1 M5 x 12, Black Maintenance Cover, Battery, 83.200204.02 1.5789.0635.1 Flange Bolt M6 x 35, Black Black 83.190006.01...
  • Page 28 100261 ENGLISH SPECIFICATIONS Part Number Description 2.05.050 Clamp, 100 mm, Wire 1.97.1.05 Washer Ø5 1.845.4819 Screw ST4.8 x 19 Fuel Pipe, 83.070011.02 Fuel Valve To Carburetor 5.1820.001 Charger 1.845.3516 Screw ST3.5 x 16 1.97.1.04 Washer Ø4 5.1830.017 Remote Module 83.200101.02 Front Cover, Black 100261.21...
  • Page 29 100261 ENGLISH SPECIFICATIONS This page intentionally left blank.

  • Page 30: Engine Parts Diagram

    100261 ENGLISH SPECIFICATIONS Engine Parts Diagram...

  • Page 31: Engine Parts List

    100261 ENGLISH Engine Parts List Part Number Description Part Number Description Hose, Oil Drain 1.5789.0835 Flange Bolt M8 x 35 83.032000.00 2.11.014 Oil Seal 28.030009.00 Gasket, Cylinder Head 83.030007.01 Cover, Crankcase 2.04.003 Dowel Pin, Ø10 x 14 83.127000.01 Oil Level Sensor 83.040006.01...

  • Page 32: Troubleshooting

    100261 ENGLISH TROUBLESHOOTING Problem Cause Solution Generator will not start No fuel Add fuel Faulty spark plug Replace spark plug Unit loaded during start up Remove load from unit Generator will not start; Low oil level Fill crankcase to the proper level Generator starts but runs roughly Place generator on a flat, level surface...
  • Page 33 To complete registration you will need to include a copy of the – Problems caused by parts that are not original Champion purchase receipt as proof of original purchase. Proof of purchase Power Equipment parts.
  • Page 34 THE UNITED STATES ENVIRONMENT PROTECTION AGENCY (U.S. EPA) AND THE CALIFORNIA AIR RESOURCES BOARD (CARB) EMISSION CONTROL SYSTEM WARRANTY Your Champion Power Equipment (CPE) engine complies with both the U.S. EPA and state of California Air Resources Board (CARB) Exhaust and Evaporative emissions regulations.
  • Page 35 EXHAUST AND EVAPORATIVE EMISSION CONTROL SYSTEM WARRANTY The following are specific provisions relative to your Exhaust and Evaporative Emission Control System (ECS) Warranty Coverage. 1. APPLICABILITY: This warranty shall apply to 1995 and later model year California small off-road engines (SORE) (for other states, 1997 and later model year engines).
  • Page 36 You must take your CPE engine or the product on which it is installed, along with your warranty registration card or other proof of original purchase date, at your expense, to any Champion Power Equipment dealer who is authorized by Champion Power Equipment, Inc. to sell and service that CPE product during his normal business hours.
