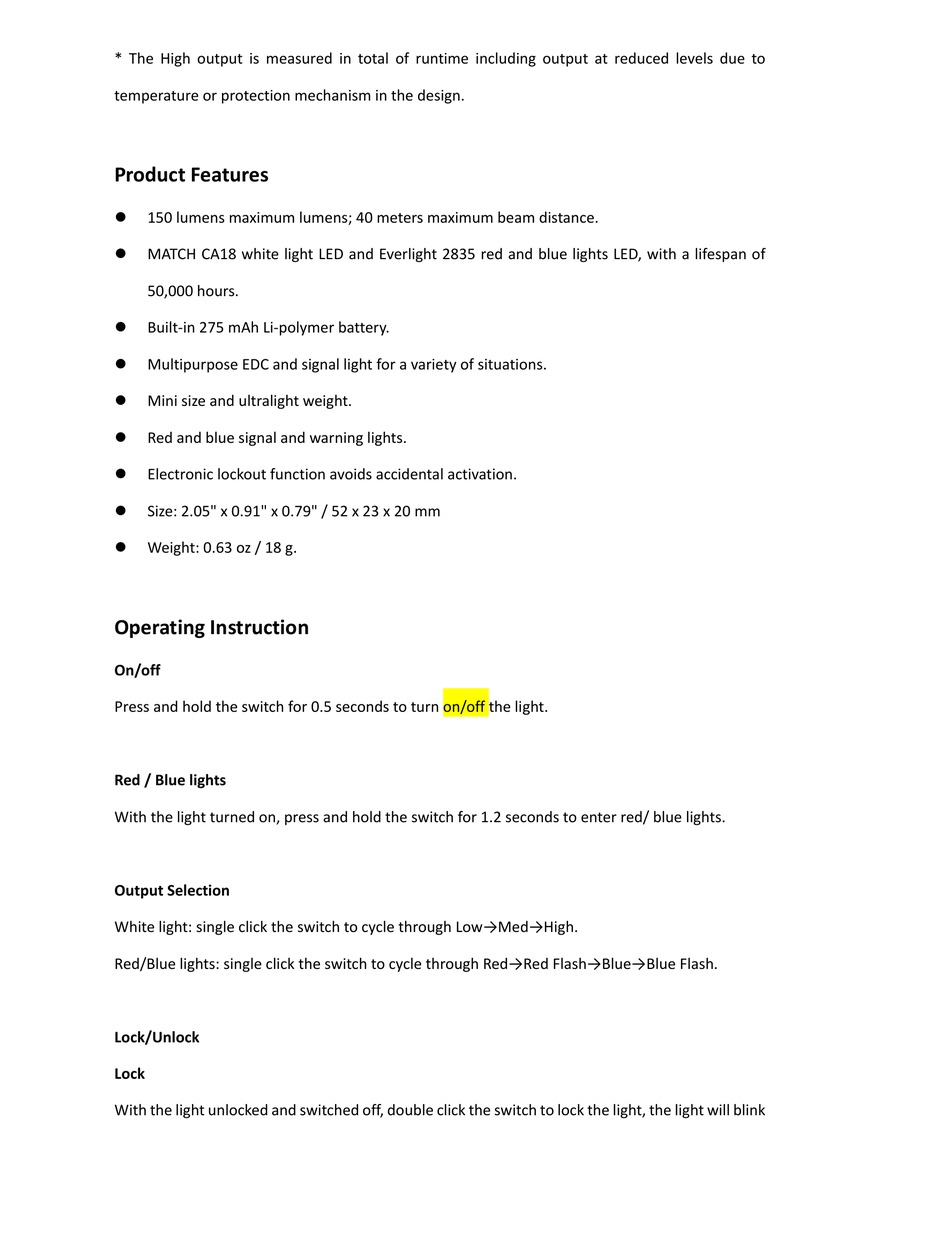

Product Features; Operating Instruction - Fenix E LITE Quick Start Manual

* The High output is measured in total of runtime including output at reduced levels due to
temperature or protection mechanism in the design.
Product Features

150 lumens maximum lumens; 40 meters maximum beam distance.

MATCH CA18 white light LED and Everlight 2835 red and blue lights LED, with a lifespan of
50,000 hours.

Built‐in 275 mAh Li‐polymer battery.

Multipurpose EDC and signal light for a variety of situations.

Mini size and ultralight weight.

Red and blue signal and warning lights.

Electronic lockout function avoids accidental activation.

Size: 2.05" x 0.91" x 0.79" / 52 x 23 x 20 mm

Weight: 0.63 oz / 18 g.
Operating Instruction
On/off
Press and hold the switch for 0.5 seconds to turn on/off the light.
Red / Blue lights
With the light turned on, press and hold the switch for 1.2 seconds to enter red/ blue lights.
Output Selection
White light: single click the switch to cycle through Low→Med→High.
Red/Blue lights: single click the switch to cycle through Red→Red Flash→Blue→Blue Flash.
Lock/Unlock
Lock
With the light unlocked and switched off, double click the switch to lock the light, the light will blink
