ECS4510-28T/P/F
ECS4510-52T/P
Installation Guide
28/52-Port Layer 2+
Stackable GE Switch
www.edge-core.com

Advertisement

Table of Contents
loading

Related Manuals for Edge-Core ECS4510-52P

Summary of Contents for Edge-Core ECS4510-52P

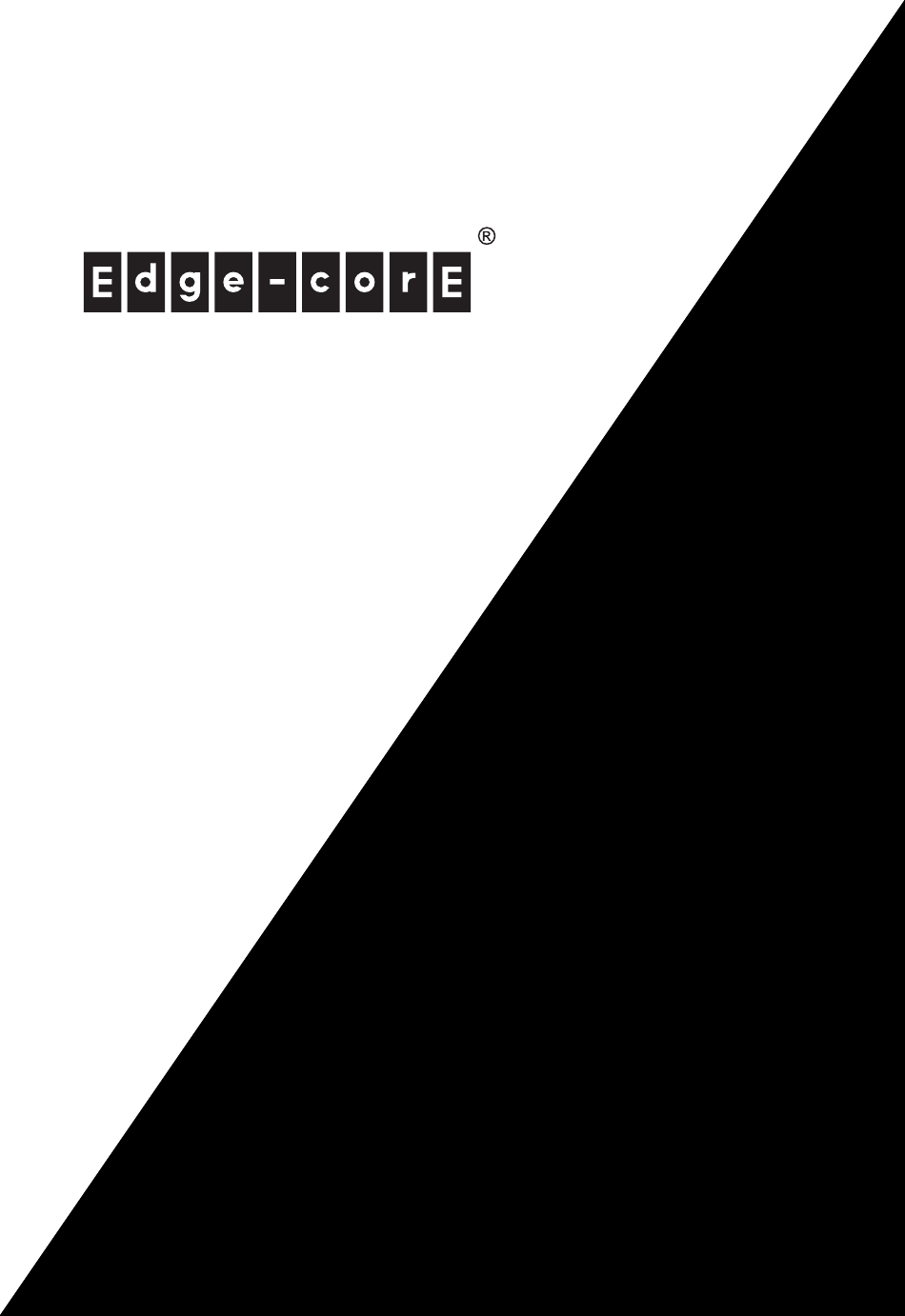

  • Page 1 ECS4510-28T/P/F ECS4510-52T/P Installation Guide 28/52-Port Layer 2+ Stackable GE Switch www.edge-core.com...
  • Page 3 WITCH Layer 2+ Stackable Gigabit Ethernet Switch with 48 10/100/1000BASE-T (RJ-45) Ports, 2 10 Gigabit SFP+ Ports, and 1 10-Gigabit SFP+ Extender Module Slot ECS4510-52P G IGABIT THERNET WITCH Layer 2+ Stackable Gigabit Ethernet Switch with 48 10/100/1000BASE-T (RJ-45) PoE Ports,...

  • Page 5: Compliances And Safety Statements

    OMPLIANCES AND AFETY TATEMENTS FCC - C LASS This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 6 OMPLIANCES AND AFETY TATEMENTS CE M (EEC) ECLARATION OF ONFORMANCE FOR AFETY This information technology equipment complies with the requirements of the Council Directive 89/336/EEC on the Approximation of the laws of the Member States relating to Electromagnetic Compatibility and 73/23/EEC for electrical equipment used within certain voltage limits and the Amendment Directive 93/ 68/EEC.
  • Page 7 OMPLIANCES AND AFETY TATEMENTS AFETY OMPLIANCE Warning: Fiber Optic Port Safety When using a fiber optic port, never look at the transmit laser while it is powered on. Also, never look directly at the fiber TX port and fiber CLASS I cable ends when they are powered on.
  • Page 8 OMPLIANCES AND AFETY TATEMENTS OWER AFETY Please read the following safety information carefully before installing the switch: Installation and removal of the unit must be carried out by qualified WARNING: personnel only. The unit must be connected to an earthed (grounded) outlet to comply with ◆...
  • Page 9 OMPLIANCES AND AFETY TATEMENTS Power Cord Set U.S.A. and Canada The cord set must be UL-approved and CSA certified. The minimum specifications for the flexible cord are: - No. 18 AWG - not longer than 2 meters, or 16 AWG. - Type SV or SJ - 3-conductor The cord set must have a rated current capacity of at least 12 A...
  • Page 10 OMPLIANCES AND AFETY TATEMENTS La prise secteur doit se trouver à proximité de l’appareil et son accès doit ◆ être facile. Vous ne pouvez mettre l’appareil hors circuit qu’en débranchant son cordon électrique au niveau de cette prise. L’appareil fonctionne à une tension extrêmement basse de sécurité qui est ◆...
  • Page 11 OMPLIANCES AND AFETY TATEMENTS Bitte unbedingt vor dem Einbauen des Switches die folgenden Sicherheitsanweisungen durchlesen: Die Installation und der Ausbau des Geräts darf nur durch WARNUNG: Fachpersonal erfolgen. Das Gerät sollte nicht an eine ungeerdete Wechselstromsteckdose ◆ angeschlossen werden. Das Gerät muß an eine geerdete Steckdose angeschlossen werden, welche ◆...
  • Page 12 OMPLIANCES AND AFETY TATEMENTS ARNINGS AND AUTIONARY ESSAGES This product does not contain any serviceable user parts. ARNING Installation and removal of the unit must be carried out by ARNING qualified personnel only. When connecting this device to a power outlet, connect the ARNING field ground lead on the tri-pole power plug to a valid earth ground line to prevent electrical hazards.
  • Page 13 OMPLIANCES AND AFETY TATEMENTS ND OF RODUCT This product is manufactured in such a way as to allow for the recovery and disposal of all included electrical components once the product has reached the end of its life. ANUFACTURING ATERIALS There are no hazardous nor ozone-depleting materials in this product.
  • Page 14 OMPLIANCES AND AFETY TATEMENTS – 14 –...

  • Page 15: About This Guide

    BOUT UIDE URPOSE This guide details the hardware features of the switch, including the physical and performance-related characteristics, and how to install the switch. UDIENCE The guide is intended for use by network administrators who are responsible for installing and setting up network equipment; consequently, it assumes a basic working knowledge of LANs (Local Area Networks).
  • Page 16 ◆ 2013 R UGUST EVISION This is the second revision of this guide. It includes the following change: Added redundant power supply specifications for ECS4510-52P. ◆ 2013 R EVISION This is the first revision of this guide. – 16 –...

  • Page 17: Table Of Contents

    ONTENTS OMPLIANCES AND AFETY TATEMENTS BOUT UIDE ONTENTS ABLES IGURES NTRODUCTION Overview Description of Hardware ETWORK LANNING Introduction to Switching Application Examples Application Notes NSTALLING THE WITCH Selecting a Site Ethernet Cabling Equipment Checklist Mounting Installing an Optional Module into the Switch Installing an SFP or SFP+ Transceiver Connecting Switches in a Stack Connecting to a Power Source...
  • Page 18 ONTENTS AKING ETWORK ONNECTIONS Connecting Network Devices Twisted-Pair Devices Fiber Optic SFP Devices 10 Gbps Fiber Optic Connections 10 Gbps DAC Connections Connectivity Rules Cable Labeling and Connection Records ROUBLESHOOTING Diagnosing Switch Indicators Power and Cooling Problems Installation In-Band Access ABLES Twisted-Pair Cable and Pin Assignments Fiber Standards...

  • Page 19: Tables

    ABLES Table 1: Port Status LEDs Table 2: System Status LEDs Table 3: Optional Transceivers Table 4: Serial Cable Wiring Table 5: Maximum 1000BASE-SR Gigabit Ethernet Cable Lengths Table 6: Maximum 10GBASE-LR 10 Gigabit Ethernet Cable Length Table 7: Maximum 10GBASE-ER 10 Gigabit Ethernet Cable Length Table 8: Maximum 10GBASE-CR 10 Gigabit Ethernet Cable Lengths Table 9:...
  • Page 20 ABLES – 20 –...

  • Page 21: Figures

    IGURES Figure 1: 28-Port Switch Front Panels Figure 2: 52-Port Switch Front Panels Figure 3: Rear Panel Figure 4: Port LEDs Figure 5: System LEDs Figure 6: Power Supply Sockets Figure 7: Dual-Port 10GBASE Module (SFP+) Figure 8: PoE Connections Figure 9: Collapsed Backbone Figure 10:...
  • Page 22 IGURES – 22 –...

  • Page 23: Introduction

    The ECS4510-28T, ECS4510-28P, ECS4510-52T, and ECS4510-52P are intelligent Layer 2+ stackable switches with 24 or 48 10/100/1000BASE-T ports, and 2 10G SFP+ slots. The ECS4510-28P and ECS4510-52P front-panel ports all support Power-over-Ethernet Plus (PoE+). The ECS4510-28F provides 24 100/1000BASE-X SFP transceiver slots, two combination ports, comprised of two RJ-45 ports and two SFP+ transceiver slots, and two 10G SFP+ slots.

  • Page 24: Figure 2: 52-Port Switch Front Panels

    | Introduction HAPTER Overview Figure 2: 52-Port Switch Front Panels ECS4510-52T ECS4510-52P Figure 3: Rear Panel WITCH RCHITECTURE This Gigabit Ethernet switch employs a wire-speed, non-blocking switching fabric. This permits simultaneous wire-speed transport of multiple packets at low latency on all ports. The switch also features full-duplex capability on all ports, which effectively doubles the bandwidth of each connection.
  • Page 25 OVER THERNET APABILITY The ECS4510-28P and ECS4510-52P 10/100/1000 Mbps RJ-45 ports support the IEEE 802.3at Power-over-Ethernet Plus (PoE+) standard that enables DC power to be supplied to attached devices using wires in the connecting Ethernet cable. Any 802.3at compliant device attached to a port can directly draw power from the switch over the Ethernet cable without requiring its own separate power source.

  • Page 26: Description Of Hardware

    | Introduction HAPTER Description of Hardware ESCRIPTION OF ARDWARE 10/100/1000BASE-T RJ-45 P ORTS The switch contains 24/48 RJ-45 ports that operate at 10 Mbps or 100 Mbps, half or full duplex, or at 1000 Mbps, full duplex. Because all ports on the switch support automatic MDI/MDI-X operation, you can use straight-through cables for all network connections to PCs or servers, or to other switches or hubs.

  • Page 27: Table 1: Port Status Leds

    | Introduction HAPTER Description of Hardware TACKING ORTS The 10G SFP+ ports on the front panel can also be used as stacking ports to provide a 40 Gbps stack backplane connection. Up to eight 24-port or 48-port switches can be connected together using SFP+ transceivers and cables. One unit in the stack acts as the Master for configuration tasks, all of the other units function in Slave mode, but can automatically take over management of the stack if the Master unit fails.

  • Page 28: Table 2: System Status Leds

    | Introduction HAPTER Description of Hardware Figure 5: System LEDs Table 2: System Status LEDs Condition Status Power On Green Internal power is operating normally. On Amber Internal power supply failure. Power off. Diag Flashing Green System self-diagnostic test in progress. On Green System self-diagnostic test successfully completed.

  • Page 29: Figure 6: Power Supply Sockets

    | Introduction HAPTER Description of Hardware PTIONAL EDUNDANT OWER UPPLY The switch supports an optional Redundant Power Supply (RPS), that can supply power to the switch in the event the internal power supply fails. OWER UPPLY OCKETS There are two power sockets on the rear panel of the switch. The standard power socket is for the AC power cord.
  • Page 30 | Introduction HAPTER Description of Hardware – 30 –...

  • Page 31: Network Planning

    ETWORK LANNING NTRODUCTION TO WITCHING A network switch allows simultaneous transmission of multiple packets via non- crossbar switching. This means that it can partition a network more efficiently than bridges or routers. Switches have, therefore, been recognized as one of the most important building blocks for today’s networking technology.

  • Page 32: Application Examples

    | Network Planning HAPTER Application Examples PPLICATION XAMPLES The Gigabit Ethernet Switch is not only designed to segment your network, but also to provide a wide range of options in setting up network connections. Some typical applications are described below. UPPLYING The switch is an excellent choice for supplying power to connected PoE devices such as web cameras, IP telephones or access points.

  • Page 33: Figure 9: Collapsed Backbone

    | Network Planning HAPTER Application Examples OLLAPSED ACKBONE The Gigabit Ethernet Switch is an excellent choice for mixed Ethernet, Fast Ethernet, and Gigabit Ethernet installations where significant growth is expected in the near future. In a basic stand-alone configuration, it can provide direct full- duplex connections for up to 28/52 workstations or servers.

  • Page 34: Figure 10: Network Aggregation Plan

    | Network Planning HAPTER Application Examples ETWORK GGREGATION With 28/52 parallel bridging ports (i.e., 28/52 distinct collision domains), a Gigabit switch can collapse a complex network down into a single efficient bridged node, increasing overall bandwidth and throughput. In the figure below, the 10/100/1000BASE-T ports of a 28-port Gigabit Ethernet switch are providing 1000 Mbps connectivity through other switches.

  • Page 35: Figure 11: Remote Connections With Fiber Cable

    | Network Planning HAPTER Application Examples EMOTE ONNECTIONS WITH IBER ABLE Fiber optic technology allows for longer cabling than any other media type. A 1000BASE-SX (MMF) link can connect to a site up to 550 meters away, a 1000BASE-LX (SMF) link up to 10 km, and a 1000BASE-ZX link up to 100 km. This allows a switch to serve as a collapsed backbone, providing direct connectivity for a widespread LAN.

  • Page 36: Figure 12: Making Vlan Connections

    | Network Planning HAPTER Application Examples VLAN C AKING ONNECTIONS This switch supports VLANs which can be used to organize any group of network nodes into separate broadcast domains. VLANs confine broadcast traffic to the originating group, and can eliminate broadcast storms in large networks. This provides a more secure and cleaner network environment.

  • Page 37: Application Notes

    | Network Planning HAPTER Application Notes PPLICATION OTES Full-duplex operation only applies to point-to-point access (such as when a switch is attached to a workstation, server or another switch). When the switch is connected to a hub, both devices must operate in half-duplex mode.
  • Page 38 | Network Planning HAPTER Application Notes – 38 –...

  • Page 39: Installing The Switch

    NSTALLING THE WITCH ELECTING A Switch units can be mounted in a standard 19-inch equipment rack or on a flat surface. Be sure to follow the guidelines below when choosing a location. ◆ The site should: be at the center of all the devices you want to link and near a power ■...

  • Page 40: Ethernet Cabling

    | Installing the Switch HAPTER Ethernet Cabling THERNET ABLING To ensure proper operation when installing the switch into a network, make sure that the current cables are suitable for 10BASE-T, 100BASE-TX or 1000BASE-T operation. Check the following criteria against the current installation of your network: ◆...

  • Page 41: Equipment Checklist

    ACKAGE ONTENTS ◆ 28/52-port Gigabit Ethernet Switch (ECS4510-28T, ECS4510-28P, ECS4510-28F, ECS4510-52T, or ECS4510-52P) ◆ Four adhesive foot pads ◆ Bracket Mounting Kit containing two brackets and eight screws for attaching the brackets to the switch ◆...

  • Page 42: Mounting

    | Installing the Switch HAPTER Mounting OUNTING The switch can be mounted in a standard 19-inch equipment rack or on a desktop or shelf. Mounting instructions for each type of site follow. OUNTING Before rack mounting the switch, pay particular attention to the following factors: ◆...

  • Page 43: Figure 14: Attaching The Brackets

    | Installing the Switch HAPTER Mounting Figure 14: Attaching the Brackets Mount the device in the rack, using four rack-mounting screws (not provided). Figure 15: Installing the Switch in a Rack If installing a single switch only, turn to “Connecting to a Power Source” on page –...

  • Page 44: Figure 16: Attaching The Adhesive Feet

    | Installing the Switch HAPTER Mounting If installing multiple switches, mount them in the rack, one below the other, in any order. If also installing an RPS, mount it in the rack below the other devices. ESKTOP OR HELF OUNTING Attach the four adhesive feet to the bottom of the first switch.

  • Page 45: Installing An Optional Module Into The Switch

    | Installing the Switch HAPTER Installing an Optional Module into the Switch NSTALLING AN PTIONAL ODULE INTO THE WITCH Figure 17: Installing an Optional Module The slide-in modules are hot-swappable, you do not need to power off the switch before installing or removing a module. To install an optional module into the switch, do the following: Remove the blank metal plate (or a previously installed module) from the appropriate slot by removing the two screws with a flat-head screwdriver.

  • Page 46: Installing An Sfp Or Sfp+ Transceiver

    | Installing the Switch HAPTER Installing an SFP or SFP+ Transceiver SFP+ T NSTALLING AN RANSCEIVER Figure 18: Inserting an SFP Transceiver into a Slot The switch supports the following optional transceivers: Table 3: Optional Transceivers SFP+ 1000BASE-SX (ET4201-SX) 10GBASE-SR (ET5402-SR) 1000BASE-LX (ET4201-LX) 10GBASE-LR (ET5402-LR) 1000BASE-ZX (ET4201-ZX)

  • Page 47: Connecting Switches In A Stack

    | Installing the Switch HAPTER Connecting Switches in a Stack Slide the transceiver into the slot until it clicks into place. SFP/SFP+ transceivers are hot-swappable. The switch does not need to be powered off before installing or removing a transceiver. However, always first disconnect the network cable before removing a transceiver.

  • Page 48: Figure 19: Making Stack Connections

    | Installing the Switch HAPTER Connecting Switches in a Stack Repeat steps 1 and 2 for each unit in the stack. Form a simple chain starting at the right port on the top unit and ending at the left port on the bottom unit (stacking up to 8 units).

  • Page 49: Connecting To A Power Source

    | Installing the Switch HAPTER Connecting to a Power Source ONNECTING TO A OWER OURCE To connect a switch to a power source: Insert the power cable plug directly into the AC socket located at the back of the switch. Figure 20: Power Socket Plug the other end of the cable into a grounded, 3-pin, AC power source.

  • Page 50: Connecting To The Console Port

    | Installing the Switch HAPTER Connecting to the Console Port ONNECTING TO THE ONSOLE The RJ-45 serial port on the switch’s front panel is used to connect to the switch for out-of-band console configuration. The on-board configuration program can be accessed from a terminal or a PC running a terminal emulation program. The pin assignments used to connect to the serial port are provided in the following table.
  • Page 51 | Installing the Switch HAPTER Connecting to the Console Port The serial port’s configuration requirements are as follows: ◆ Default Baud rate—115,200 bps ◆ Character Size—8 Characters ◆ Parity—None ◆ Stop bit—One ◆ Data bits—8 ◆ Flow control—none – 51 –...
  • Page 52 | Installing the Switch HAPTER Connecting to the Console Port – 52 –...

  • Page 53: Making Network Connections

    AKING ETWORK ONNECTIONS ONNECTING ETWORK EVICES This switch is designed to interconnect multiple segments (or collision domains). It can be connected to network cards in PCs and servers, as well as to hubs, switches or routers. It may also be connected to devices using optional 1G SFP or 10 SFP+ transceivers.

  • Page 54: Figure 22: Making Twisted-Pair Connections

    | Making Network Connections HAPTER Twisted-Pair Devices ONNECTING TO ERVERS UBS AND WITCHES Attach one end of a twisted-pair cable segment to the device’s RJ-45 connector. Figure 22: Making Twisted-Pair Connections If the device is a network card and the switch is in the wiring closet, attach the other end of the cable segment to a modular wall outlet that is connected to the wiring closet.

  • Page 55: Figure 23: Network Wiring Connections

    | Making Network Connections HAPTER Twisted-Pair Devices If not already in place, attach one end of a cable segment to the back of the patch panel where the punch-down block is located, and the other end to a modular wall outlet. Label the cables to simplify future troubleshooting.

  • Page 56: Fiber Optic Sfp Devices

    | Making Network Connections HAPTER Fiber Optic SFP Devices SFP D IBER PTIC EVICES An optional Gigabit SFP transceiver (1000BASE-SX, 1000BASE-LX, or 1000BASE-ZX) can be used for a backbone connection between switches, or for connecting to a high-speed server. Each single-mode fiber port requires 9/125 micron single-mode fiber optic cable with an LC connector at both ends.

  • Page 57: Figure 24: Making Fiber Port Connections

    | Making Network Connections HAPTER Fiber Optic SFP Devices Figure 24: Making Fiber Port Connections As a connection is made, check the Link LED on the switch corresponding to the port to be sure that the connection is valid. The 1000BASE-SX, 1000BASE-LX, 1000BASE-ZX fiber optic ports operate at 1 Gbps, full duplex, with auto-negotiation of flow control.

  • Page 58: Gbps Fiber Optic Connections

    | Making Network Connections HAPTER 10 Gbps Fiber Optic Connections 10 G IBER PTIC ONNECTIONS An optional 10 Gigabit transceiver (SFP+) can be used for a backbone connection between switches. Single-mode fiber ports require 9/125 micron single-mode fiber optic cable. Multimode fiber optic ports require 50/125 or 62.5/125 micron multimode fiber optic cable.

  • Page 59: 10 Gbps Dac Connections

    | Making Network Connections HAPTER 10 Gbps DAC Connections 10 G DAC C ONNECTIONS Direct Attach Cable (DAC) is a method of connecting two SFP+ interfaces without using optics and fiber cable. A fixed length of twinax copper cable is terminated at each end with physically-compliant SFP+ transceivers that do not include all their normal electronic and optical components.

  • Page 60: Connectivity Rules

    | Making Network Connections HAPTER Connectivity Rules ONNECTIVITY ULES When adding hubs (repeaters) to your network, please follow the connectivity rules listed in the manuals for these products. However, note that because switches break up the path for connected devices into separate collision domains, you should not include the switch or connected cabling in your calculations for cascade length involving other devices.

  • Page 61: Table 7: Maximum 10Gbase-Er 10 Gigabit Ethernet Cable Length

    | Making Network Connections HAPTER Connectivity Rules Table 7: Maximum 10GBASE-ER 10 Gigabit Ethernet Cable Length Fiber Size Fiber Bandwidth Maximum Cable Length Connector 9/125 micron single- 40 km (24.85 miles) mode fiber Table 8: Maximum 10GBASE-CR 10 Gigabit Ethernet Cable Lengths Cable Type Cable Lengths Connector...

  • Page 62: Cable Labeling And Connection Records

    | Making Network Connections HAPTER Cable Labeling and Connection Records Table 12: Maximum 1000BASE-ZX Gigabit Ethernet Cable Length Fiber Size Fiber Bandwidth Maximum Cable Length Connector 9/125 micron single- 2 m - 100 km mode fiber (7 ft - 62 miles) 100 M THERNET OLLISION...
  • Page 63 | Making Network Connections HAPTER Cable Labeling and Connection Records ◆ Note the length of each cable and the maximum cable length supported by the switch ports. ◆ For ease of understanding, use a location-based key when assigning prefixes to your cable labeling. ◆...
  • Page 64 | Making Network Connections HAPTER Cable Labeling and Connection Records – 64 –...

  • Page 65: A Troubleshooting

    ROUBLESHOOTING IAGNOSING WITCH NDICATORS Table 15: Troubleshooting Chart Symptom Action ◆ Power LED is Off Check connections between the switch, the power cord and the wall outlet. ◆ Contact your dealer for assistance. ◆ Power LED is Amber Internal power supply has failed. Contact your local dealer for assistance.

  • Page 66: Power And Cooling Problems

    | Troubleshooting HAPTER Power and Cooling Problems Table 16: Power/RPS LEDs Power LED RPU LED Status Green Green Internal power functioning normally; RPS is present. Green Amber Internal power functioning normally; RPS plugged in but faulty. Green Internal power functioning normally; RPS not plugged in. Amber Green Internal power faulty;...

  • Page 67: In-Band Access

    | Troubleshooting HAPTER In-Band Access CCESS You can access the management agent in the switch from anywhere within the attached network using Telnet, a web browser, or other network management software tools. However, you must first configure the switch with a valid IP address, subnet mask, and default gateway.
  • Page 68 | Troubleshooting HAPTER In-Band Access – 68 –...

  • Page 69: Cables

    ABLES WISTED ABLE AND SSIGNMENTS For 10/100BASE-TX connections, the twisted-pair cable must have two pairs of wires. For 1000BASE-T connections the twisted-pair cable must have four pairs of wires. Each wire pair is identified by two different colors. For example, one wire might be green and the other, green with white stripes.

  • Page 70: Table 17: 10/100Base-Tx Mdi And Mdi-X Port Pinouts

    | Cables HAPTER Twisted-Pair Cable and Pin Assignments 10BASE-T/100BASE-TX P SSIGNMENTS Use unshielded twisted-pair (UTP) or shielded twisted-pair (STP) cable for RJ-45 connections: 100-ohm Category 3 or better cable for 10 Mbps connections, or 100-ohm Category 5 or better cable for 100 Mbps connections. Also be sure that the length of any twisted-pair connection does not exceed 100 meters (328 feet).

  • Page 71: Figure 26: Straight-Through Wiring

    | Cables HAPTER Twisted-Pair Cable and Pin Assignments Figure 26: Straight-through Wiring EIA/TIA 568B RJ-45 Wiring Standard 10/100BASE-TX Straight-through Cable White/Orange Stripe Orange White/Green Stripe End A End B Blue White/Blue Stripe Green White/Brown Stripe Brown ROSSOVER IRING If the twisted-pair cable is to join two ports and either both ports are labeled with an “X”...

  • Page 72: Table 18: 1000Base-T Mdi/Mdi-X Port Pinouts

    | Cables HAPTER Twisted-Pair Cable and Pin Assignments 1000BASE-T P SSIGNMENTS All 1000BASE-T ports support automatic MDI/MDI-X operation, so you can use straight-through cables for all network connections to PCs or servers, or to other switches or hubs. The table below shows the 1000BASE-T MDI and MDI-X port pinouts. These ports require that all four pairs of wires be connected.

  • Page 73: Fiber Standards

    | Cables HAPTER Fiber Standards 1000BASE-T DJUSTING XISTING ABLING FOR If your existing cable installation does not meet one of the test parameters for 1000BASE-T, there are basically three measures that can be applied to try and correct the problem: Replace any Category 5 patch cables with high-performance Category 5e or Category 6 cables.
  • Page 74 | Cables HAPTER Fiber Standards Table 19: Fiber Standards (Continued) ITU-T Description Application Standard G.654 1550-nm Loss-Minimized Fiber Extended long-haul applications. Optimized for high-power Single-mode, 9/125-micron core transmission in the 1500 to 1600-nm region, with low loss in the 1550-nm band.

  • Page 75: Specifications

    PECIFICATIONS HYSICAL HARACTERISTICS ORTS 24/48 10/100/1000BASE-T (RJ-45) ports 2 10 Gigabit SFP+ ports (for uplink or stacking) 1 expansion module slot (supporting dual-port 10G SFP+ module) ECS4510-28F: 24 1000BASE-SFP, with auto-negotiation 2 10/100/1000BASE-T, shared with two SFP transceiver slots 2 10 Gigabit SFP+ ports 1 expansion module slot (supporting dual-port 10G SFP+ module) ETWORK NTERFACE...
  • Page 76 ECS4510-28P: 100 to 240 V, 50-60 Hz, 10 A ECS4510-28F: 100 to 240 V, 50-60 Hz, 2 A ECS4510-52T: 100 to 240 V, 50-60 Hz, 2 A ECS4510-52P: 50-60 Hz 100 to 127 VAC, 12 A 200 to 240 VAC, 6 A...

  • Page 77: Switch Features

    ECS4510-28F: 50 W max. (with one expansion module) ECS4510-52T: 63 W max. (with one expansion module) ECS4510-52P: 871 W max. (with one expansion module and PoE enabled) The ECS4510-52P maximum power consumption is reduced to 780 W when the device is powered from a connected RPS.

  • Page 78: Management Features

    | Specifications HAPTER Management Features ANAGEMENT EATURES ANAGEMENT Telnet, SSH, SNMP, or HTTP ANAGEMENT RS-232 RJ-45 console port OFTWARE OADING FTP/TFTP or HTTP in-band, or XModem out-of-band TANDARDS IEEE 802.3-2008 Ethernet, Fast Ethernet, Gigabit Ethernet, and 10 Gigabit Ethernet (10GBASE-SR, 10GBASE-LR, 10GBASE-ER) IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol...

  • Page 79: 10Gbase-Sfp+ Extender Module

    | Specifications HAPTER 10GBASE-SFP+ Extender Module EN55022 (CISPR 22) Class A EN 61000-3-2/3 VCCI Class A MMUNITY EN 61000-4-2/3/4/5/6/8/11 AFETY UL 60950-1 & CSA 60950-1 IEC 60950-1 & EN 60950-1 ECS4510-28F: UL/CUL (CSA 22.2 NO 60950-1 & UL 60950-1) CB (IEC/EN60950-1) 10GBASE-SFP+ E XTENDER ODULE...

  • Page 80: Redundant Power Supply

    | Specifications HAPTER Redundant Power Supply EDUNDANT OWER UPPLY This accessory and specifications only apply to the ECS4510-52P. NPUT OWER 100-240 VAC, 50-60 Hz, 12 A UTPUT OWER 12 VDC, 10 A -54.5 VDC, 14.3 A – 80 –...

  • Page 81: Glossary

    LOSSARY 10BASE-T IEEE 802.3 specification for 10 Mbps Ethernet over two pairs of Category 3, 4, or 5 UTP cable. 100BASE-TX IEEE 802.3u specification for 100 Mbps Ethernet over two pairs of Category 5 UTP cable. 1000BASE-LH Specification for long-haul Gigabit Ethernet over two strands of 9/125 micron core fiber cable.
  • Page 82 LOSSARY 10GBASE-LR IEEE 802.3ae specification for 10 Gigabit Ethernet over two strands of 9/125 micron core single-mode fiber cable. 10GBASE-SR IEEE 802.3ae specification for 10 Gigabit Ethernet over two strands of 62.5/125 micron core multimode fiber cable. 10 G IGABIT THERNET A 10 Gbps network communication system based on Ethernet.
  • Page 83 LOSSARY THERNET A network communication system developed and standardized by DEC, Intel, and Xerox, using baseband transmission, CSMA/CD access, logical bus topology, and coaxial cable. The successor IEEE 802.3 standard provides for integration into the OSI model and extends the physical layer and media with repeaters and implementations that operate on fiber, thin coax and twisted-pair cable.
  • Page 84 LOSSARY IEEE 802.3 Defines CSMA/CD access method and physical layer specifications for 100BASE- TX Fast Ethernet. (Now incorporated in IEEE 802.3-2008.) IEEE 802.3 Defines Ethernet frame start and stop requests and timers used for flow control on full-duplex links. (Now incorporated in IEEE 802.3-2008.) IEEE 802.3 Defines CSMA/CD access method and physical layer specifications for 1000BASE Gigabit Ethernet.
  • Page 85 LOSSARY specified in units of MHz per km, which indicates the amount of bandwidth supported by the fiber for a one km distance. ETWORK IAMETER Wire distance between two end stations in the same collision domain. (RPS) EDUNDANT OWER UPPLY A backup power supply unit that automatically takes over in case the primary power supply should fail.
  • Page 86 LOSSARY – 86 –...

  • Page 87: Index

    NDEX UMERICS 10 Gbps connectivity rules desktop mounting 10 Mbps connectivity rules 100 Mbps connectivity rules 1000 Mbps connectivity rules 1000BASE-LH fiber cable Lengths electrical interference, avoiding 1000BASE-LX fiber cable Lengths equipment checklist 1000BASE-SX fiber cable Lengths Ethernet connectivity rules 1000BASE-T pin assignments ports...
  • Page 88 NDEX management Telnet agent temperature within a rack features troubleshooting SNMP in-band access mounting the switch power and cooling problems in a rack twisted-pair connections on a desktop or shelf VLANS, tagging network connections examples optional modules, installation package contents pin assignments 1000BASE-T 10BASE-T/100BASE-TX...
  • Page 90 Declaration of Conformity (DoC) can be obtained from www.edge-core.com -> support -> download -> declarations & certifications ECS4510-28T/P/F ECS4510-52T/P E052014-CS-R03 150200000439A...
