Edge-Core ECS4650-54T Quick Start Manual

Quick Start Guide
L3 GIGABIT ETHERNET (POE) SWITCH
ECS4650-54T | ECS4650-54P
1.

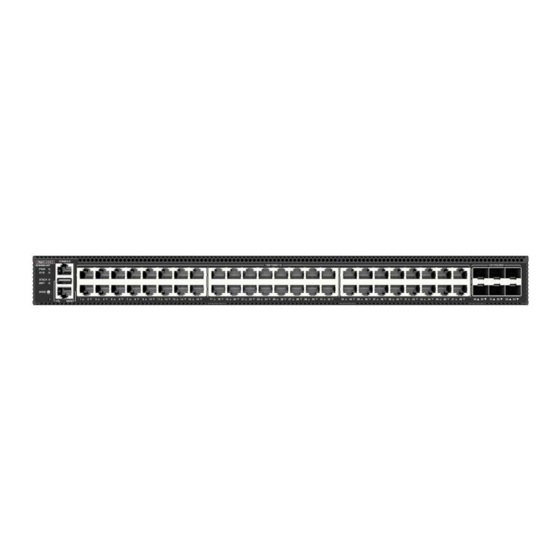

L3 Gigabit Ethernet (PoE) Switch
2.
Rack mounting kit—2 brackets and 8 screws
3.
Power cord
4.
Console cable—RJ-45 to DE-9
1 3
2
5
1. System LEDs
2.
Management port, Console port, and USB port
3.
48 x 10/100/1000M RJ-45 ports
4.
6 x 1/10/25G SFP28 ports
5.
Ground screw
6.
AC power socket
3
4
6
1. PWR: Green (OK)
2.
SYS: Green (OK), Blinking Green (booting)
3.
STACK: Green (valid stack link)
4.
MST: Green (stack master)
5.
PoE: Green (OK)

1
ECS4650-54T
System/Port LEDs & Buttons
1
2
5

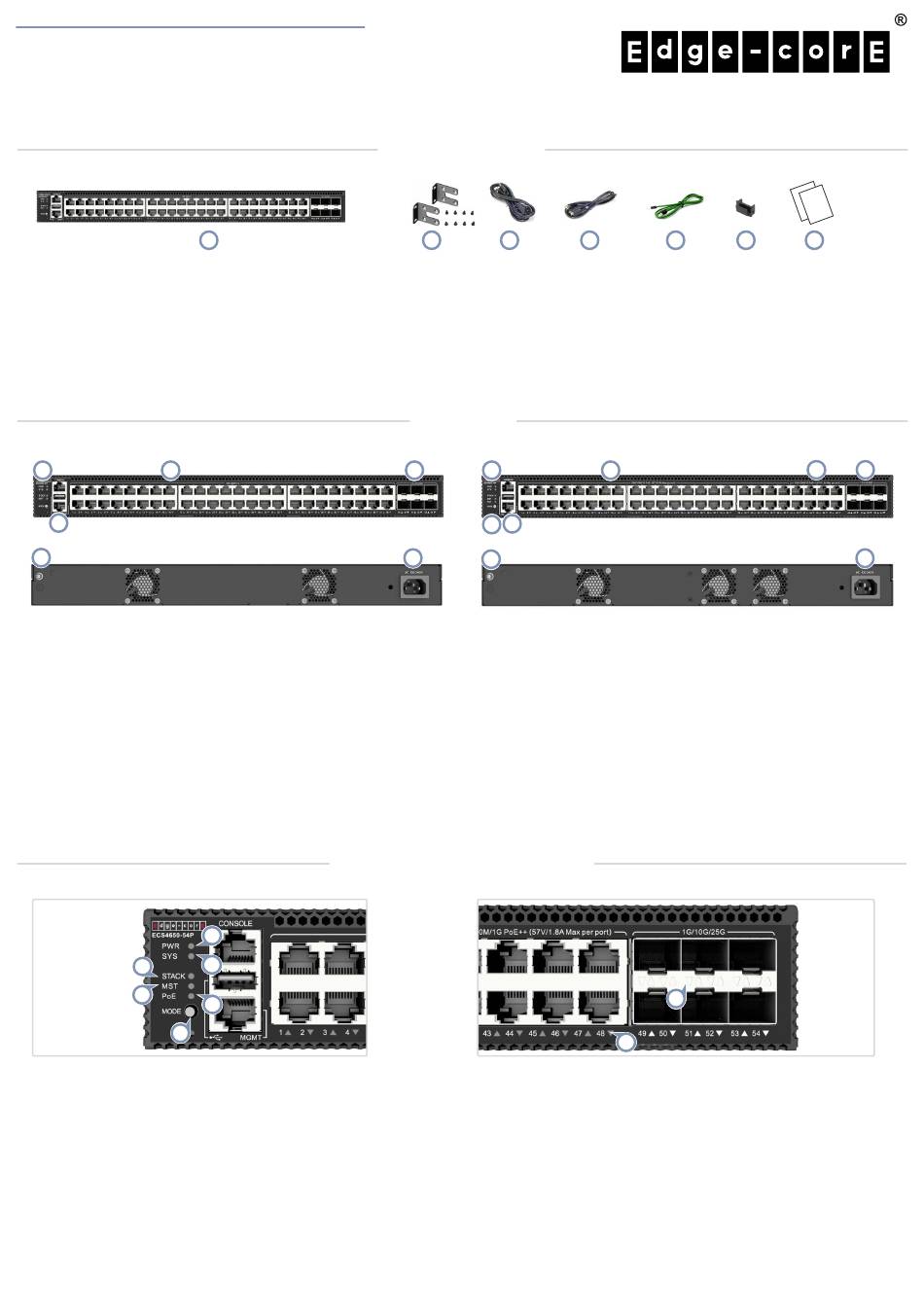

Package Contents
2 3
5.
Grounding wire
6.
Six port dust covers
7.
Documentation—Quick Start Guide (this document) and Safety
and Regulatory Information
Overview
4 1
3
2
6
7
1. System LEDs
2.
PoE LED and Mode button
3.
Management port, Console port, and USB port
4.
40 x 10/100/1000M RJ-45 PoE+ (IEEE 802.3at) ports
5.
8 x 10/100/1000M RJ-45 PoE++ (IEEE 802.3bt) ports
6.
6 x 1/10/25G SFP28 ports
7.
Ground screw
8.
AC power socket
6. Mode Button: Cycles through three modes
First Press: PoE Mode (PoE LED is on, STACK LED is off)
Second Press: Stack Mode (PoE LED is off, STACK LED is on)
Third Press: Switch Mode (PoE and STACK LEDs are off)
7.
RJ-45 1G Ports: Green/Blinking (link/activity)
8.
SFP28 25G Ports: Green/Blinking (link/activity)
– 1 –
www.edge-core.com
4 5 6
ECS4650-54P
4
8
7
7
5 6
8
E122023-CS-R02
150200002560H
