Edge-Core ECS4510-12PD Quick Start Manual

Quick Star t Guide
L2 Gigabit Ethernet Switch
ECS4510-12PD
1. Unpack the Switch
www.edge-core.com
The ECS4510-12PD is a high-performance enterprise Layer 2 switch that provides
ten 10/100BASE-T RJ-45 ports and two Gigabit Small Form Factor Pluggable (SFP)
slots that support 1000BASE-SX and 1000BASE-LX transceivers. RJ-45 ports 1 to 8
on the switch are 802.3at PoE PD ports, and RJ-45 port 10 is an 802.3af PoE PSE port.
Note: For detailed switch installation information, refer to the Installation Guide,
which is on the Documentation CD included with the switch.
Note: For Safety and Regulatory information, refer to the Safety and Regulatory
Information document included with the switch.
Warning For Indoor use only:
designed for outdoor use.
The switch is designed to be installed in a standard 19-inch equipment rack.
However, you can also install the switch on any flat surface, such as a desktop.
Follow the steps in this guide to install the switch in your network.
Unpack the switch and check the package contents.
◆

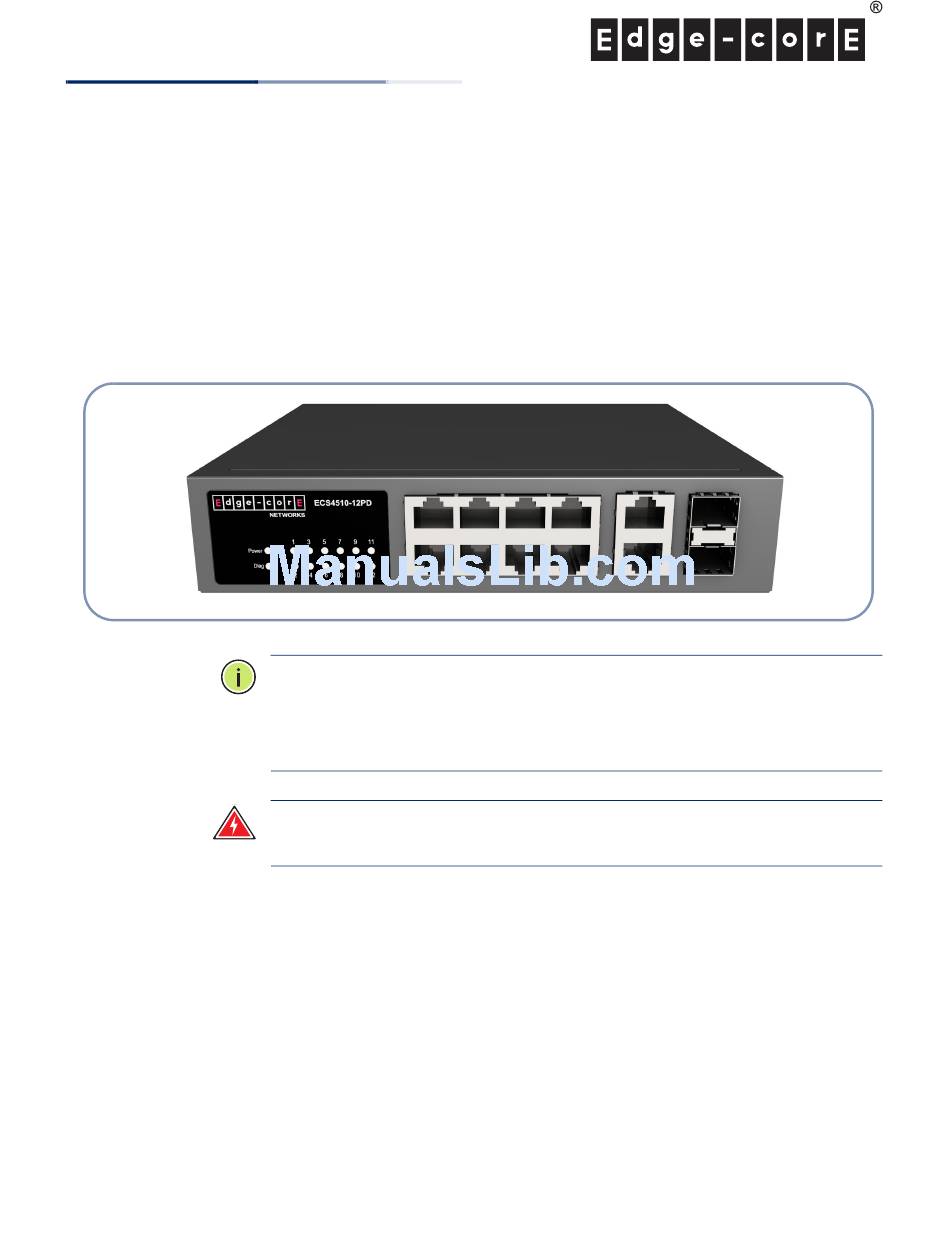

ECS4510-12PD L2 Gigabit Ethernet Switch
◆
Rack Mounting Kit containing two brackets and eight screws for attaching the
brackets to the switch
◆
Four adhesive foot pads
◆
3 Pin 5.08 mm pitch DC Terminal Block/Power Plug—Dinkle Cat. No. 2ESDV-03P
The switch and all connected cables are not
