Quick Star t Guide
28/52-Port L3 Stackable Gigabit Ethernet Switch
ECS4620-28T / ECS4620-28P / ECS4620-28F
ECS4620-52T / ECS4620-52P

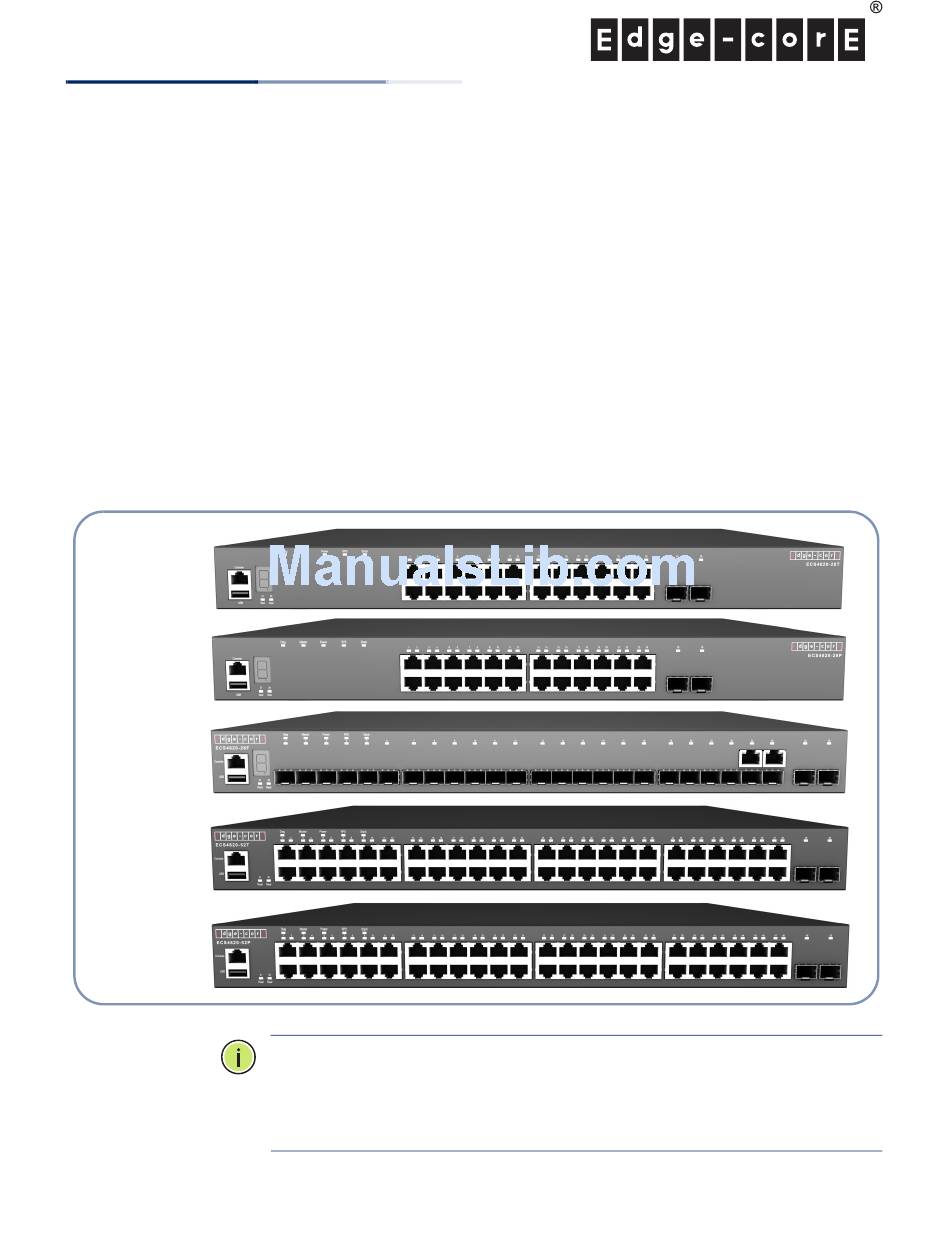

ECS4620-28T
ECS4620-28P
ECS4620-28F
ECS4620-52T
ECS4620-52P
www.edge-core.com
The ECS4620-28T, ECS4620-28P, ECS4620-52T, and ECS4620-52P are stackable
Layer 3 switches that provide 24/48 10/100/1000BASE-T RJ-45 ports, and two 10
Gigabit (10G) Small Form Factor Pluggable Plus (SFP+) slots that support 1G and
10G transceivers. The ECS4620-28F is a Layer 3 switch that provides 22 SFP 1G
transceiver slots, two combination Gigabit RJ-45/SFP ports, and two 10G SFP+ slots.
The ECS4620-28P and ECS4620-52P also provide Power-over-Ethernet Plus (PoE+)
capability on the RJ-45 ports.
All switches also provide one rear-panel slot for a dual-port 10G hot-swappable
expansion module.
Note:
For detailed switch installation information, refer to the Installation Guide,
which is on the Documentation CD included with the switch.
Note:
For Safety and Regulatory information, refer to the Safety and Regulatory
Information document included with the switch.
– 1 –
E072014-CS-R03
150200000789A
