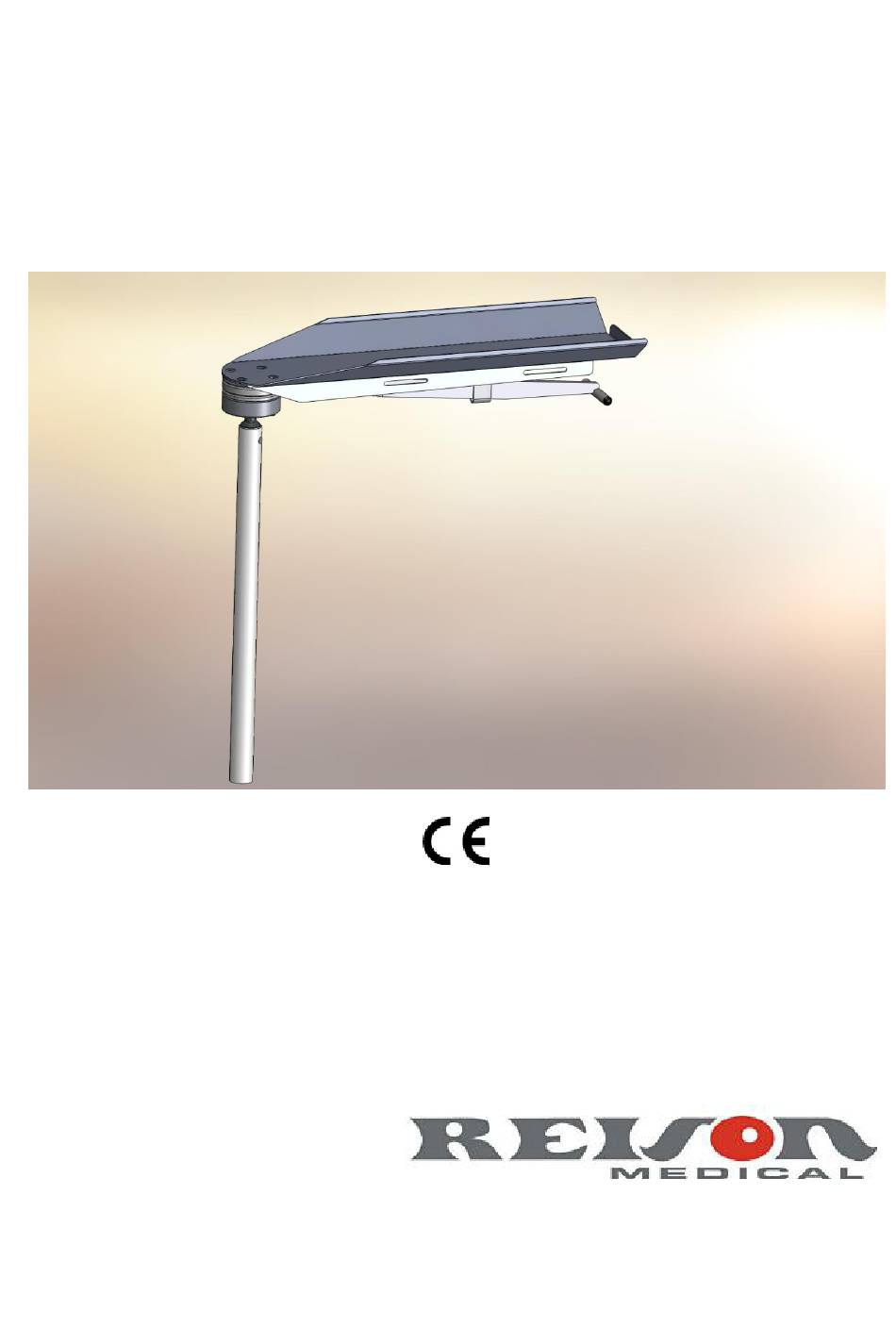

- Page 1 USERS MANUAL ARM SUPPORT 10-380-KL GMDN 10184 PID 122493 10-380-KL Edit 3 Page 1 (5...
- Page 2 When the top is in desired position, lock by releasing the lever. CAUTION! To avoid malfunction in the ball joint, no fluids shall be applied to the ball joint. The oil film on the ball shall not be removed. 10-380-KL Edit 3 Page 2 (5...
- Page 3 ❖ Before every use with a patient, a function control of the arm support must always be done. ❖ Service and preventing maintenance shall be done by authorized personnel and according to issued intervals. 10-380-KL Edit 3 Page 3 (5...
- Page 4 This is made to prevent damages to the arm support or on other equipment at a collision. The ball in the ball joint device shall be oiled with a hydraulic oil ISO VG 32 or similar viscosity 10-380-KL Edit 3 Page 4 (5...
- Page 5 Width 18cm Weight 3,1kg Safe Working Load 15 kg Max patient weight 200 kg Box 240 Eriksbergsvägen 32 A 734 25 Hallstahammar Sweden Phone: +46 220 43399 Fax: +46 220 29016 E-mail: info@reison.se www.reison.se 10-380-KL Edit 3 Page 5 (5...
