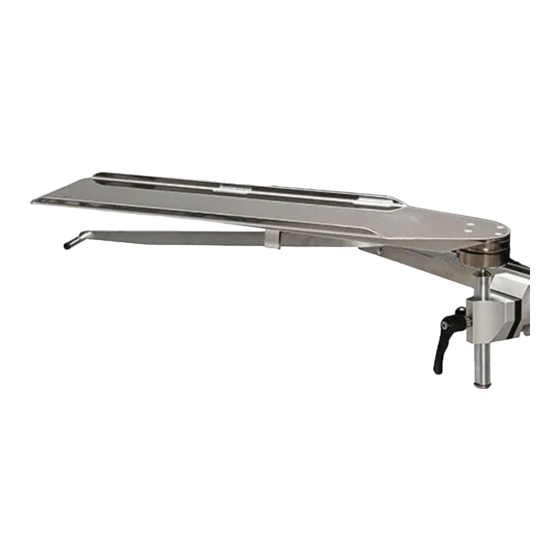

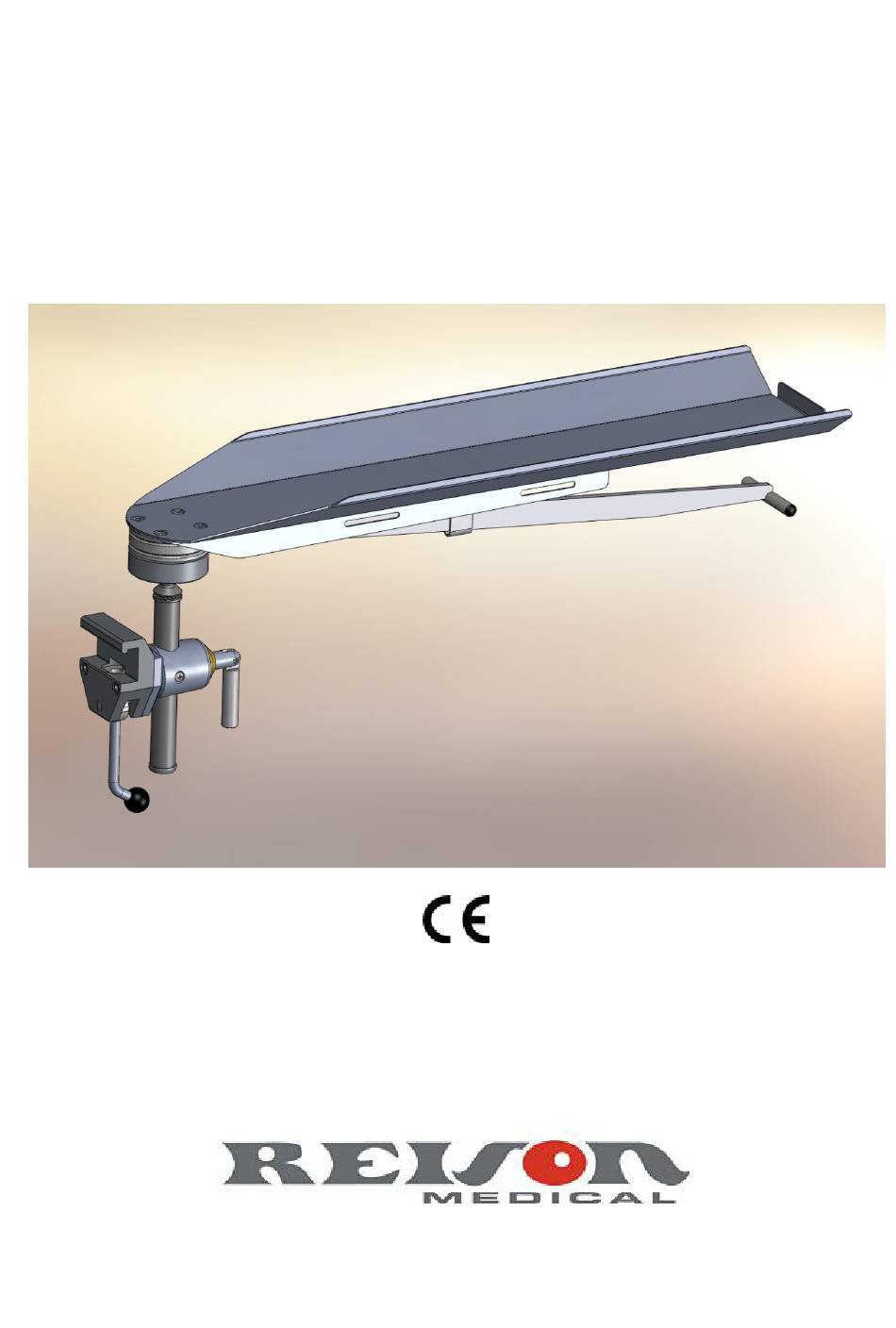

- Page 1 USERS MANUAL ARM BOARD 10-387 GMDN 10184 PID 51387 10-387 Edit.6 Page 1 ( 5...
- Page 2 For height adjustment, turn the height adjustment lever anticlockwise, adjust the height and lock by turning the lever clockwise.CAUTION! To avoid malfunction in the ball joint, no fluids shall be applied to the ball joint. The oil film on the ball shall not be removed. 10-387 Edit.6 Page 2 ( 5...
- Page 3 ❖ Before every use with a patient, a function control of the arm board must always be done. ❖ Service and preventing maintenance shall be done by authorized personnel and according to issued intervals. 10-387 Edit.6 Page 3 ( 5...
- Page 4 The ball in the ball joint device shall be oiled with a hydraulic oil ISO VG 32 or similar viscosity. 10-387 Edit.6 Page 4 ( 5...
- Page 5 18cm Length 67cm Weight 4,5kg Safe Working Load 15kg evenly applied Max patient weight 200kg Box 240 Eriksbergsvägen 32A 734 25 Hallstahammar Sweden Phone: +46 220 43399 Fax: +46 220 29016 E-mail: info@reison.se www.reison.se 10-387 Edit.6 Page 5 ( 5...
