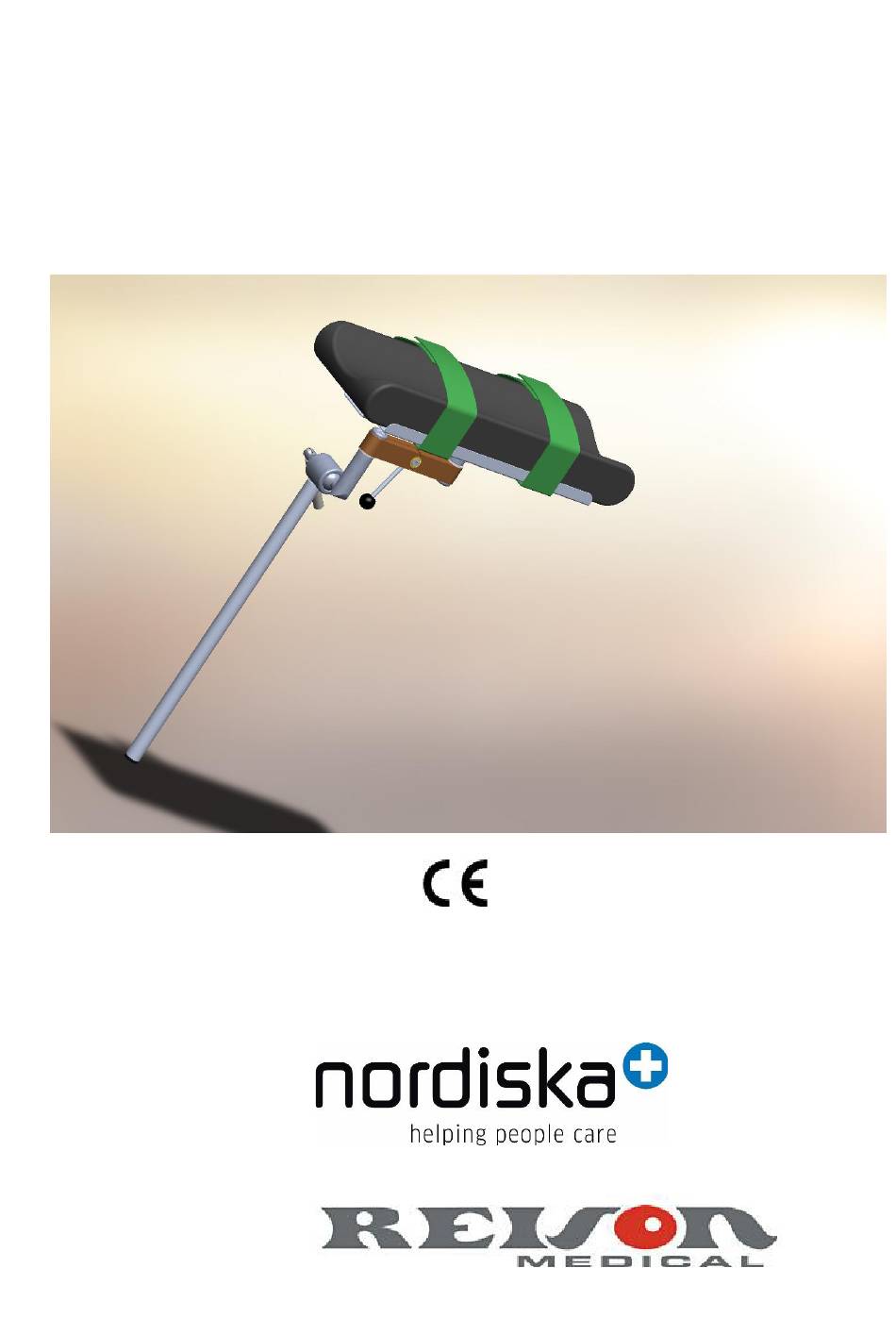

- Page 1 USERS MANUAL ARM SUPPORT 10-389 GMDN 37047 PID 100087 10-389 Edit.3 Page 1 ( 5...
- Page 2 INTRODUCTION This arm support is intended to be a support for the upper arm of a side lying patient during surgical procedures when a side lying patient gives better access to the surgeon. The arm support can be adjusted in several different positions for best possible comfort to the patient. The support can be adjusted in height, it can be turned around horizontally and it can be slanted vertically 40°...
- Page 3 GENERAL DESCRIPTION Soft upholstered pad with straps Lever for lock/unlock of the joint of the post for slanting the support. Anti-clockwise turning unlocks and clockwise turning locks the joint. Lever for lock/unlock of the pivot link. To lock, push the lever towards the post.
- Page 4 SPARE PARTS 1. Arm plate 11330 1pc. 2. Washer 11547 2pcs. 3. Link 10300 1pc. 4. Velcro strap hook 11550 2pcs 5. Washer 10004 2pcs. 6. Screw MF6S M6x12 A2 2pcs. 7. Strap 10-383-L 11552 2pcs. 8. Pad 11551 1pc. 9.
- Page 5 Vertical slanting ±90° (10° steps) Safe Working Load 15kg evenly applied Max patient weight 200kg Box 240 Eriksbergsvägen 32 A 734 25 Hallstahammar Sweden Phone: +46 220 43399 Fax: +46 220 29016 E-mail: info@reison.se www.reison.se 10-389 Edit.3 Page 5 ( 5...
