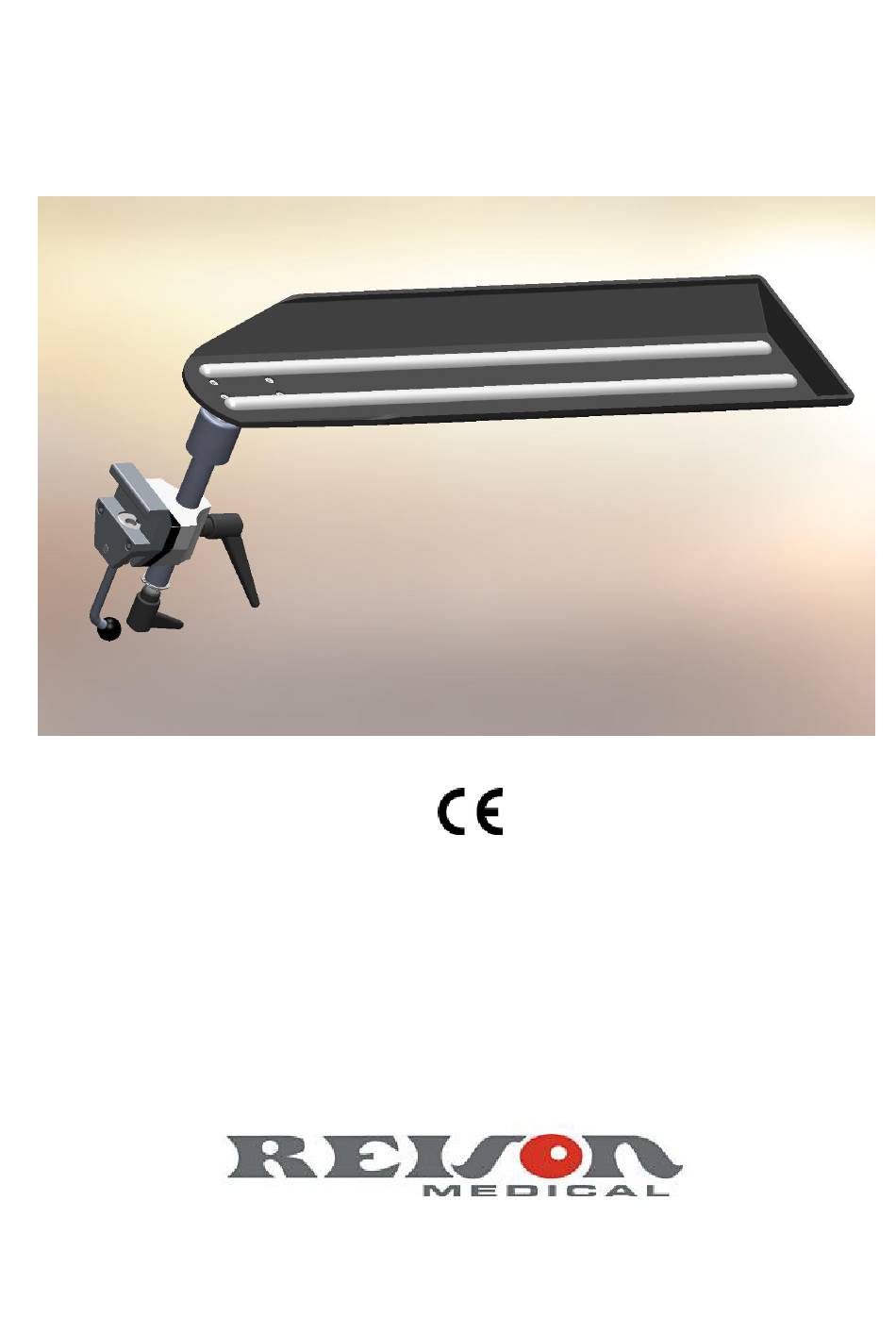

- Page 1 USERS MANUAL ARMBOARD 10-385 GMDN 10184 PID 51385 10-385 Edit.2 Page 1 (5...
- Page 2 INTRODUCTION The 10-385 arm board is designed for use with a C-arm image intensifier. It has a radio translucent top, making it perfect for fluoroscopy of the arms of the patient. Of course, it is also useable as a traditional arm board to put a drip needle into the arm of the patient. ABOUT USERS MANUAL This user manual is for clinical personnel, service personnel and others, who need the knowledge about and understanding of how the arm board works and how it can be used.
- Page 3 IMPORTANT SAFETY INSTRUCTIONS • A control of the locking function shall be done before every use. • Service and preventing maintenance must be done by authorized personnel and according to issued intervals. • • Changing of any part in the construction without a written permission from the manufacturer is strictly forbidden.
- Page 4 SPARE PARTS 1. Plate fitting 10242 1pc. 2. Clamp house 10031 1pc. 3. Plate 10081 1pc. 4. Screw 10892 1pc. 5. Adjustable lever GN 300 S 78 M10 1pc. 6. Screw MFX-Z-A4-70 M4x10 4pcs. 7. Snap ring SGA 20 1pc. 8.
- Page 5 Width 17cm Height 32cm Weight 2,2kg Height adjustment Angel adjustment ± 40° Max patient weight 200kg Box 240 Eriksbergsvägen 32A 734 25 Hallstahammar Sweden Phone: +46 220 43399 Fax: +46 220 29016 E-mail: info@reison.se www.reison.se 10-385 Edit.2 Page 5 (5...
