Installing Soundpoint Ip 430 Sip; Connecting Network And Power Source - Polycom SoundPoint IP 430 User Manual

All manuals and user guides at all-guides.com
Installing SoundPoint
This section provides basic installation
instructions and information for obtaining
the best performance with the Sound-
Point IP 430 SIP phone. If you require
®
additional information or assistance with
your new phone, please contact your sys-
tem administrator.

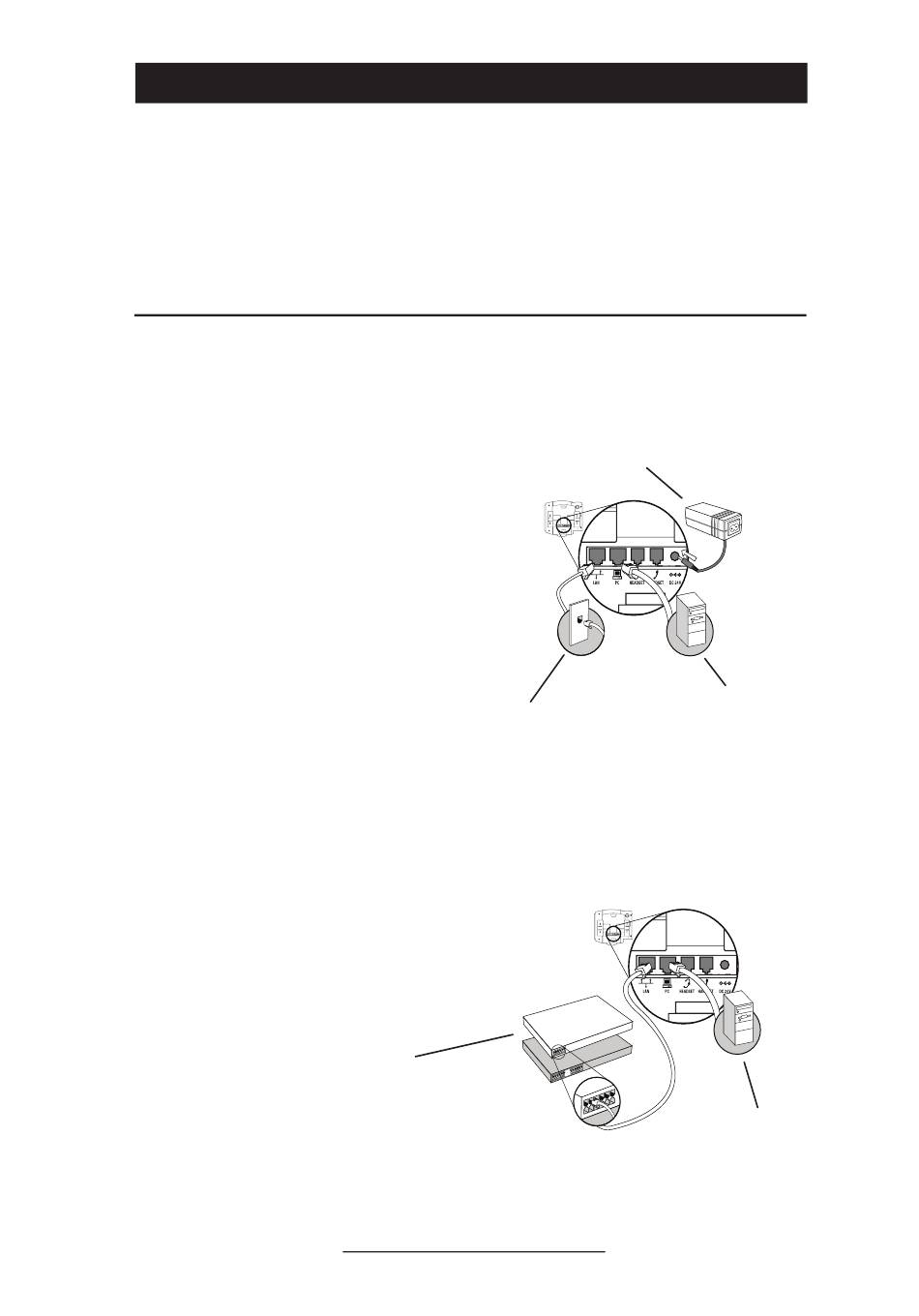

Connecting Network and Power Source

AC Power Option
Connect the supplied Network cable be-
tween the LAN jack on the phone and the
LAN port on the wall or hub/switch device
port. Connect the DC plug on the power
adapter to the DC 24V jack marked on the
phone. Connect the country-specifi c AC
cord to the power adapter.
In-Line Power Option
If the phone is connected to a compatible
Ethernet switch that can provide in-line
power, the phone will use that power op-
tion. Simply plug the supplied Network
cable between the LAN jack on the phone
and an available Power and Data port on
the In-Line Power switch.
IEEE 802.3af compliant Power
over Ethernet Hub/Switch
(Terminal or Midspan)
IP 430 SIP
®
The SoundPoint IP 430 SIP User Guide
®
includes regulatory compliance informa-
tion that your system administrator should
review. It can also be found at www.
polycom.com.
Power Adapter
(24V DC)
Network Port
2
Optional PC
Connection
Optional PC
Connection
