Bernini Maria 3-in-1 Bird Feeder, Fountain & Planter Owner's Manual

*PLEASE READ THESE INSTRUCTIONS COMPLETELY BEFORE ATTEMPTING TO ASSEMBLE YOUR NEW FOUNTAIN

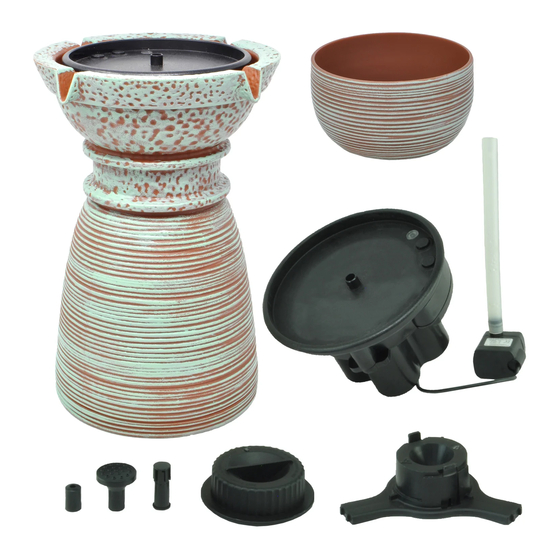

CONTENTS:
Water
Tube
Fountain Base
Hanger x3 &
Wire Hook
Inner
Water Bowl
Base
Please note, images of parts
are not to scale with one another.
STEP
2.

Fountain Assembly

Battery Compartment Battery Compartment
Retaining Screws X2 Retaining Screws X2
Figure 1a
Figure 1b
Need Help?
Call us for assistance at:
+1 (619) 449-2392
or you can email us at:
customercare@berninifountains.com
For video tutorials visit:
berninifountains.com/support
Our Customer Care Department is available:
Monday - Friday 8:30am to 4:00pm PST
11:30am - 7:00pm EST
1. Take the Fountain Top/Battery Compartment and Water Pump, connect one side of the Water Tube to the Water Pump and the other end to the bottom side of the
Battery Compartment (A & B of Figure 4).
2. Lower the Fountain Top with Battery Compartment and Water Pump into the Fountain Base. There are two locating dowels and two alignment notches that help
you align the Fountain Top to the Fountain Base. Fit these into place and press to Fountain Top and Base together to secure (Figure 6).
STEP
3.

OPERATING YOUR FOUNTAIN:

The Fountain has a 1 or 2 hour timer and will repeat at the same time every day.
Turn Fountain on and daily set timer: When the fountain is off, set the run time for 1 or 2 hours by slowly pressing the button 1 to 2 times. Three seconds
after pressing the button, the LED light will repeatedly flash the number of times the button was pressed. This indicates the number of hours the Fountain will run
every day. The Fountain will turn on at the same time, for the selected number of hours, daily thereafter.
Stop Fountain for one day: Press the button for less than 2 seconds. The LED will flash three times.
Turn off the daily timer: Press the button for less than 2 seconds. Then press and hold button again for over 2 seconds, the LED will flash solid for 2 seconds.
,
DANCING WATER ATTACHMENT (OPTIONAL): When Fountain is not running, attach the Dancing Water Attachment to the outlet in the middle of the Fountain
Tower (Figure 8a, 8b and 8c). To prevent overspray, use a larger bowl.
Button Button
Figure 7a
Maria 3-in-1 Bird Feeder, Fountain & Planter
Diagram 1a:
Dancing
Water
Attachment
Start/Stop
Button
Alignment
Notch
Maximum
Water
Level
Inner
Water
Bowl
Fountain Top
With Battery
Compartment
& Water Pump
Base
Upper
Fountain
Bird Feeder
Position
Cover x3
Locating Locating
Dowel Dowel
Alignment Alignment Alignment
Figure 2a
Notch in Notch in Notch in
Battery Cover Battery Cover
Fountain Battery Battery
Housing Housing Top
Retaining Nut O-Ring
Battery Cover Battery Cover
O-Ring O-Ring
Figure 3a
Figure 3b
Dancing Water Attachment
Note: Due to splashing and overspray
it is recommended that the Dancing
Water Attachment be used outdoors.
Figure 7b
Battery
Dancing Water
Compartment
Attachment
Screws x2
Locating Dowls
Fountain
Top
Battery
Alignment
Compartment
Notch
(4 1.5v AA
Batteries not
Included)
Fountain
Base
Lower
Fountain
Position
Alignment Alignment
Notch in Notch in
Fountain Battery
Housing Top
Figure 2b
Figure 4
Figure 2b
Battery Cover Battery Cover
Retaining Nut O-Ring
Figure 7
Figure 8a
O W N E R S M A N U A L
STEP

INSTALLING BATTERIES:

1. Lift Fountain Top with Battery Compartment & Water
Pump out of the Fountain Base (Figure 5). Disconnect
the Water Tube from the Battery Compartment.
2. Unscrew (counter clockwise) the Battery Compartment
Screws and open cover (Figure 1a, 1b).
3. Orient the Battery Compartment with locating dowel on top.
(See Arrow Figure 2a& 2b).
4. Requires 4 AA Batteries (Not Included). Insert 2-1.5v AA
Batteries with the (+) side facing up in Battery Compartment and
2 AA Batteries with the (-) facing up in Battery Compartment
(Figure 2a).
5. Reinstall the Fountain Top by aligning the locating dowel in
the Battery Compartment and Fountain Top. Set the Battery
Cover down onto the Battery Compartment ensuring the dowel
Water
sets into the alignment hole. Tighten the Battery Cover Screw by
Pump
turning clockwise. NOTE: You may need to apply pressure to
Tube
the Battery Compartment Screws while tightening for the
threads to catch.
Minimum
Water
Level

CHANGING BATTERIES:

1. Remove any Dancing Water Attachment, lift Battery
Water
Compartment and Water Pump out of the Fountain (Figure 5),
Pump
ensure Battery Compartment and Water Pump are completely
dry before opening Battery Compartment. It is important that
Fountain
no water enters the Battery Compartment.
Feet
2. See Installing Batteries Section above on how to reinstall
batteries and reassemble.
3. Set the Battery Compartment and Water Pump back into the
Fountain (Figure 6).
A
B
Figure 5
Please Note: Please remove the packing
material inside Fountain Tower that says
"REMOVE BEFORE USE".
Figure 8b
TM
Figure 6
Figure 8c
