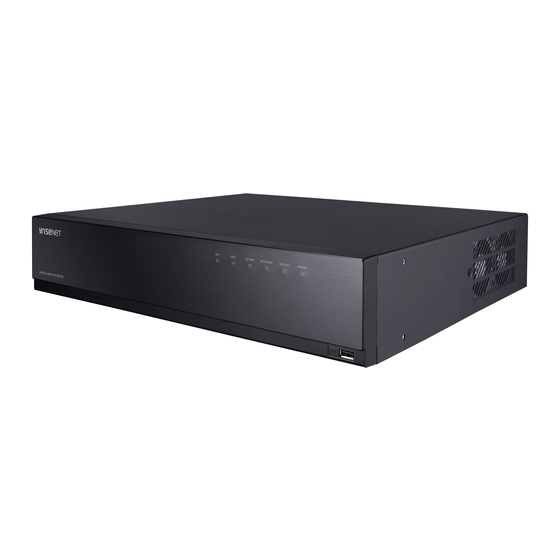

DIGITAL VIDEO RECORDER
User Manual
HRX Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HRX Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wisenet HRX Series

Summary of Contents for Wisenet HRX Series

  • Page 1 DIGITAL VIDEO RECORDER User Manual HRX Series...
  • Page 2 Digital Video Recorder User Manual Copyright ©2021 Co., Ltd. All rights reserved. Hanwha Techwin Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.

  • Page 3: Overview

    overview IMPORTAnT SAfETy InSTRuCTIOnS Standards Approvals Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference. ￭ Read these instructions. Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
  • Page 4 overview CAuTIOn RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ● ACCORDING TO THE INSTRUCTIONS. Do not ingest battery, Chemical Burn Hazard. ● This product contains a coin / button cell battery. If the coin / button cell battery is swallowed, it can cause ●...

  • Page 5: Table Of Contents

    COnTEnTS OVERVIEw Important Safety Instructions Real-Time Event Monitoring Product User Manual Description Check Event List Target Audience Event Search How to Use the Product Event Instant Viewer Contents Stop Alarm Output Camera Video Control Capture GETTInG STARTED Starting the system Instant Viewer installation Wizard Temperature Detection Mode...
  • Page 6 overview PLAy Screen Layout of the Play Setting the Network IP & Port Play Search Results Time Line Adjustment DDNS Open Time Line Channel IP Filtering Play Button Name and Function HTTPS Search Results Export 802.1x E-mail SNMP SETuP Screen Layout of the Setup DHCP Server Setting the Camera Setting the Channel...
  • Page 7 Setting up the Live Layout PLAy Play Search Results Check Layout List To Adjust the Time Line Add Layout and Set Name Play Button Name and Function Change of Layout Channel and Name Delete Layout SETuP VIEwER Screen Layout of the Setup Viewer Real-Time Event Monitoring Setting the Camera Event Type and Camera Settings...
  • Page 8 overview 101 Setting the System 101 Date/Time/Language 102 User 102 System Management 103 Log ExPORT VIEwER 104 SEC Backup Viewer 104 Recommended System Requirements 104 Screen Layout of the Backup Viewer APPEnDIx 106 Use Joystick 106 Using Virtual Keyboard 107 Troubleshooting 8_ overview...

  • Page 9: Getting Started

    getting started Starting the SyStem inStallation Wizard As shown below, proceed through each step of the <installation wizard>. 1. Connect the power cable of the recorder to the wall outlet. Install Wizard can only be accessed at factory reset. If you do not want to proceed, click <exit>. 2.
  • Page 10 getting started Setting up the network 4. Set the camera password in factory reset on the <Camera id/PW> screen. The network port can be used as a common port for camera and web viewer connection. Click <Setup> of the If ID/PW is already set in the camera, register the ID/PW and click <next>. network connected to the recorder.
  • Page 11 6. To set the recommended resolution on the <resolution> screen, click <apply> followed by the <next> button. 8. On the <Channel setup> screen, you can view the camera videos registered to each channel in thumbnails along with thumbnail information. To change the camera video position, select a video and drag and drop it to the desired location.

  • Page 12: Shutting Down The System

    getting started ShUtting doWn the SyStem login To use the Recorder menu, you are required to login as a user that is authorized to access the applicable menu. 1. Select <Shutdown> at the top right of the screen. 1. Select <login> at the top right of the screen. 2.

  • Page 13: Live

    live Shows the video of the camera connected to the recorder. Also, you can adjust the camera and check the network Item Description transfer status. Displays information of the OSD screen on the video window. SCreen layoUt oF the live Shows channel information.

  • Page 14: Checking The System Status

    live Checking the System Status Item Description The icon at the top of the screen indicates the status of the system. Displayed when manually recording a video while the access restriction for stop recording is enabled. Only a user with the permission to stop recording is allowed to stop recording. Displayed when exporting a recorded video in live mode.

  • Page 15: Check Camera List

    Check Camera list live Screen menu Displays the camera type, status, and name registered in the recorder. After selecting the desired channel on the split mode, roll the mouse cursor over the screen to see the live screen menu. The live screen menu appears differently depending on the recorder operation status or the type of the registered camera.

  • Page 16: Icons On The Live Screen

    Displayed when the camera is not registered. If you set the channel setup to <Covert2>, nothing will be displayed on the live screen. Displayed if the Wisenet camera's certificate is valid. ￭ ￭ If you set the channel setup to <Covert1>, the video will not displayed on the live screen, but only the OSD will be displayed.

  • Page 17: Live Screen Mode

    ￭ ￭ live SCreen mode Each product may support different split view modes. You can display your camera's live video in various split modes. ￭￭ If the analog camera has been automatically registered, it is displayed using the camera resolution. ￭...

  • Page 18: Switching The Split Mode

    live Switching the Split mode manual Switching Click at the bottom of the screen or enter a page number to go to that page. You can split the live video from cameras to Single, 4-split, 9-Split, or 16-split mode and watch them one by one. ￭...

  • Page 19: Channel Information Display

    ● ￭ Codec : Displays the live profile codec information for a camera set to each channel. – S and V represent Wisenet protocol while O represents ONVIF. ● ￭ Resolution : Displays the live profile resolution of a camera set to each channel.

  • Page 20: Channel Setting

    CH13 CH14 CH15 CH16 CH19 CH10 CH11 CH12 CH13 CH10 CH11 CH12 CH13 live record Status network Status If you select <record> in the <Status> menu, you can check the profile, record type, frame rate (Input/Record), Select <network> in the <Status> menu to check the status of network bandwidth currently being received/ CH19 and bit rate (Limit/Input/Record) for each channel.

  • Page 21: Changing Overall Channel Aspect Ratio Search

    Changing overall Channel aspect ratio Full Screen mode Video screen ratio for all channels can be changed in live split screen mode. You can change to full screen mode, which has no top/bottom/left/right areas of the live screen. Click < >...

  • Page 22: Setting Up The Live Layout

    live Setting UP the live layoUt Change of layout Channel and name This section outlines how to select a series of channels based on their purpose/accessibility and monitor them in a 1. Click < > after selecting a layout. single layout. 2.

  • Page 23: Real-Time Event Monitoring

    Play layout Sequence real-time event monitoring Play sequence> at the bottom of the layout list to automatically switch the layout according to the Click < Real-time events that occurred on the camera can be checked in the live video window and event list. sequence settings.

  • Page 24: Event Search

    live event Search event instant viewer You can browse events by camera and event type. Select an event to check from the event list, and click < > to play the recorded video at the time the event occurred. To search for a specific event, click < >...

  • Page 25: Camera Video Control

    Camera video Control instant viewer You can move the video back 30 seconds and play it while live monitoring. Instant viewer plays video from 30 By using the function icon of the video window, you can easily use the functions of capture, video zoom, PTZ camera and thermal imaging camera.

  • Page 26: Ptz Mode

    live Ptz mode zoom in You can run PTZ control of the selected channel. You can zoom in or out the video via digital zoom. Select the desired channel and click < >. Select the desired channel and click < >.

  • Page 27: Display Text

    display text Change Channel aspect ratio You can monitor texts regarding the sales record received from POS in real time. You can change the aspect ratio of each channel. ￭ ￭ Select the desired channel and click < >. This is executable when a text device is connected. ￭...

  • Page 28: Ptz Control

    live Ptz Control Item Description With this Recorder, you can configure the settings of a PTZ camera as well as commercial cameras in the market to your Zoom out/Zoom in Activate the Zoom operation of the PTZ camera. preference. This is active only if a channel that a PTZ camera is connected to is selected. Near/Far You can adjust the focus manually.

  • Page 29: Using Digital Ptz (D-Ptz) Function

    Using digital Ptz (d-Ptz) Function to delete a registered preset 1. Click < >. 1. Register a camera that supports the D-PTZ profile. ￭ ￭ 2. Click < >. <delete preset> window will appear. In cameras that support the D-PTZ profile, you can use the D-PTZ function. 2.

  • Page 30: Exporting The Recorded Video

    live ￭ ￭ exPorting the reCorded video If you insert a USB memory stick with insufficient storage space, volume calculation may be disabled. Format the memory stick or delete some of the data on the memory stick to secure adequate storage space. ￭...

  • Page 31: Screen Layout Of The Search

    search time Search You can search recorded video by various conditions such as time, event, and export. You can search the recorded data by the desired date and time conditions. Screen Layout of the Search ￭ The time displayed will be based on the time zone and daylight saving time (DST) applied time zone, so it may be displayed differently depending on whether the data time zone recorded at the same time and daylight saving time (DST) is applied.

  • Page 32: Event Search

    search event Search text Search You can search for various events by channel. You can search the data input to the POS device connected to the recorder. 1. Select <event search> in the <Search> menu. 1. Select <text search> in the <Search> menu. 2.

  • Page 33: Export Search

    export Search arB Search You can search the exported data on the connected storage device. Only data saved in recorder file format when You can search auto-recovery backup data stored on ARB storage devices. exported will be retrieved. 1. Select <arB search> in the <Search> menu. ￭...

  • Page 34: Bookmark Search

    To use smart search, you need to set the area of the camera's “Motion Detection" or “IVA” to the entire area. However, if you want to search for cameras after Wisenet X series, you must select “Enable" in "Event setup > IVA” of the camera. For details, refer to the "Setup > Setting the Event > Event setup"...
  • Page 35 play You can play the recorded data and export the video you want during playback. item Description You can change the number of channels displayed in the time line. Screen Layout of the pLay ￭ Show/Hide Channel Up to 4 channels of time line can be displayed. Split mode You can select the split mode.

  • Page 36: Play

    play pLay Search reSuLtS play Button name and function paused state time Line adjustment You can move the playback position and zoom the time line in and out. ● Click the desired play position in the time line. The playback start position will be moved. ￭...

  • Page 37: Search Results Export

    Search reSuLtS export You can export the search results to a file. 1. Click the < > button. 2. Select a layout and channel to export. 3. Select a start date/time and an end date/time. ￭ If you changed the time zone of the recorder, select whether to apply DST. 4.

  • Page 38: Setup

    setup Setting the camera Sets the camera, recording, event, device, network, and system environment. You can access to the channel setup, camera settings, and profiles and camera password-related settings. Screen Layout of the Setup Setting the channel You can register and connect the cameras per channel. Setup >...
  • Page 39 If the camera's ID and password have already been set, the registered information matches the ID and password set in the "Setup > Camera > Camera password". (up to 3 sets) ￭ Wisenet camera is registered via Wisenet protocol while a third party camera is registered via ONVIF protocol. English _39...
  • Page 40 The supported address type may differ depending on the type of the connected product. – IPv4/IPv6 : Used to provide the IP address of the camera manually. – Wisenet DDNS : This is available only if the camera is registered with the Wisenet DDNS(ddns. hanwhasecurity.com) server. Provide the registered domain for DDNS ID.
  • Page 41 : When registering a new camera, it is named according to the device's default if ● user set the model to <Wisenet camera>. In case if automatic registration fails, user can change the model – Press the <...

  • Page 42: Setting The Camera Functions

    – Schedule : Controls the video output mode by directly inputting the color video activation time. Click ￭ <Setup> and enter the activation time. You can use this feature in the following cases : 1. A camera connected to Wisenet protocols. Special 2. A camera connected with admin privileges. ￭...

  • Page 43: Setting The Profiles

    Setting the profiles Setting the Live profile You can change the live setup for the camera. Setting the recording profile Setup > camera > profile setup > Live You can set the video profile where the recording will be played for the camera connected to each channel. Setup >...
  • Page 44 setup Setting the remote profile editing the profiles You can set the video profile transmitted to the network. You can change the video setting for the camera registered for each channel. Setup > camera > profile setup > remote Setup > camera > profile setup : Displays the camera of the corresponding channel as a list or a thumbnail.
  • Page 45 Dewarping Setup how to set WiseStream Press the <Dewarping> button at the bottom of the <Detailed profile configuration> window to go to the Function to analyze the complexity of the video and effectively reduce the data size while maintaining the distortion correction setup popup window for each channel.

  • Page 46: Setting Camera Password

    setup Dynamic goV/fpS setup Setting camera password Dynamic GOV can be used to automatically change the length of GOV depending on the video condition. For You can change the passwords of all registered cameras at once. details, refer to the camera's help or the product's user guide. You can register the camera’s ID and password.

  • Page 47: Setting The Recording

    Setting the recorDing record Setup You can set the resolution and number of recordings for each channel when an event occurs or during a normal You can setup scheduled recording, event recording and other recording related settings. recording. You can check frame rates and data transfer amount of Full Frame and Key Frame recordings for each channel, record schedule and set the transfer limit for recordings.

  • Page 48: Record Options

    Setup > record > record options ￭ The settings for Object detection may vary depending on the recorder model or the connection of Wisenet AI camera. ● Enable dual recording : Select this if you want to record both the recording profile and remote profile at the same time.
  • Page 49 object motion Setup > event > event setup > object Setup > event > event setup > motion network camera analog camera Object detection : You can set whether to enable object detection. ● ● Object type : You can select the object type to detect. Motion detection : You can set whether to enable motion detection.
  • Page 50 setup tampering Setup > event > event setup > iVa Setup > event > event setup > tampering IVA : You can set whether to enable intelligent video analytics. Tampering detection : You can set whether to enable tampering detection. ●...

  • Page 51: Event Rule Setup

    event rule Setup ● Event action : Displays the event action set in the event rule. Item Description You can set the event trigger and action rule to output an alarm when an event occurs. PTZ preset Setup > event > event rule setup Alarm output E-mail Mobile push notification...

  • Page 52: Alarm Input

    setup ● Schedule : Select the schedule to run the event action. alarm input Event action : Click <+ add action> to set the event action. ● You can set the operation of the alarm sensor. – PTZ preset : Set the PTZ preset to be displayed when an event occurs. Click < >...

  • Page 53: Schedule

    Schedule Setting the DeVice When setting the event rule, you can set the operating time of the event action. You can make the detailed settings for devices such as storage device and monitors. Setup > event > Schedule Storage Device You can set the storage device usage and check the setting status.

  • Page 54: S.m.a.r.t

    Storage Status : Displays the working status of a storage device. Click the <View> to display the storage status The ARB feature is available only when your video is saved in the SD card after registering your Wisenet camera using the Wisenet protocol.

  • Page 55: Remote Device

    remote Device monitor This function is only available for products that support the use of a remote controller. For products that support You can set the information displayed on the monitor as well as the output system. remote controls, see "products supporting each feature" (Page 4) in the Product Specification Manual. Setup >...
  • Page 56 setup extended monitor setting configure analog video display This function is only available for products that support the use of an extended monitor. You can access the setting regarding the video display of the analog camera. ￭ For products that support extended monitor, see "products supporting each feature" (Page 4) in the Product If the monitor is set to Extended mode, spot output cannot be set.

  • Page 57: Text

    text registering a text Device You can set the POS device setting to send text information and text event information. Device Settings You can make detailed settings for the POS device connected to the recorder. Setup > Device > text > Device Device : Displays the text device name registered by the user.

  • Page 58: Serial

    setup text event Settings Setting the netWorK You can set the text to receive an alarm when an event occurs. You can set various network functions, such as monitoring live video by connecting to a network from a remote location and receiving an event by e-mail.
  • Page 59 connecting and Setting the network Setting the Dhcp ip address of the Broadband router ● 1. To access the Broadband Router's configurations, open a web browser on the local PC that is connected to the Networking may differ from the connection method, check your environment before setting the connection mode.

  • Page 60: Ddns

    setup DDnS to check Quick connect status A progress bar and its message appears for a Quick Connect. If a remote user accesses the network, you can set whether or not to use DDNS and the site to be connected. Quick connect Success : Message for a successful connection.

  • Page 61: Ip Filtering

    ip filtering httpS You can prepare the list of IP addresses to allow or block access to a specific IP address. You can choose a secured connection system or install a certificate. Setup > network > ip filtering Setup > network > httpS ●...

  • Page 62: 802.1X

    setup 802.1x e-mail When connecting to a network, you can select whether to use the 802.1x protocol and install a corresponding You can send an e-mail to a Recorder-registered user at a specific time interval, or if an event occurs. certificate.

  • Page 63: Snmp

    event Setting Snmp You can set the interval and type of the event that will be sent to the user. The SNMP protocol allows system or network administrators to remotely monitor and configure the network devices. Setup > network > e-mail > event Setup >...

  • Page 64: Dhcp Server

    setup Dhcp Server checking the status You can check the IP address assigned to the current DHCP server, MAC address, and the connected network port You can set the internal DHCP server and assign an IP address to the network camera. information.

  • Page 65: P2P

    Time : Sets the time and its format that will appear on the screen. ● 2. When the connection is successful, search for Wisenet Mobile from the smart phone, and then install and run ● Time zone : Sets the time zone of your area based on the Greenwich Mean Time (GMT).

  • Page 66: User

    setup user ● Holiday : A user can select specific dates as holidays according to their own preferences. Select a holiday from the calendar displayed by clicking <Setup>. You can manage users, such as adding or deleting users and granting different authorities for each user. –...
  • Page 67 user setting if you want to register a user You can create user groups and set authorities for each group. You can manage user information such as registering and deleting users in the created user group. Setup > System > user > user 1.
  • Page 68 setup restriction Settings if the user has restricted access Set user's restricted access or network restriction. If a general user selects a menu to which they do not have access, an access restriction confirmation window will be displayed. If all rights are restricted, only the accessible menu of the live screen menu will be displayed, and Items with restrictions will require logging in for use.

  • Page 69: System Management

    System management to upgrade the current software version You can check the current system version and update to a new version, export data, setting initialization, and more. checking the System information You can check the current software version and MAC address before proceeding with the upgrade. Setup >...

  • Page 70: Log

    setup Settings You can export the information set in the recorder to a storage device and apply the same information to other You can check the log information related to system, events, and export. recorders. checking the system log Setup > System > System management > Settings System Log shows log and timestamp on every system start up, system shutdown, and changes on system settings.
  • Page 71 checking the event log checking the export log You can search recorded events including alarms, camera events and video loss. You can search the user who performed the export and the execution time and details (time, channel, device, file It also shows the log and its timestamp. type).

  • Page 72: What Is Web Viewer

    starting web viewer What is Web VieWer? ConneCting Web VieWer Web Viewer is a software program with which the operator can access a remote Recorder for real-time monitoring, PTZ 1. Open your web browser and type the IP address or URL of Recorder into the URL address box. control (if configured) or search.

  • Page 73: Set The Recorder Password

    set the reCorder PassWord 2. Set the camera password in factory reset on the <Camera id/PW> screen. If ID/PW is already set in the camera, register the ID/PW and click <next>. After factory reset, the password must be set for the recorder to access the web viewer. Enter the password of the admin account, and click <Login>.
  • Page 74 starting web viewer 4. Set the daylight saving time on the <standard time zone> screen, and then click <next>. 5. To modify the date and time on the <date & time> screen, select the <Modify> check box. Set the date and time. 6.

  • Page 75: Screen Layout Of The Live Viewer

    live viewer You can check the video from camera registered in the Recorder connected from a remote PC. Also, you can adjust the Menu Description camera and check the network transfer status. Enables the Manual recording function of the recorder. sCreen Layout oF the LiVe VieWer Saves the video saved in the set time of the selected channel in PC in AVI format.

  • Page 76: Checking The System Status

    live viewer CheCking the systeM status CheCking CaMera List The icon at the top of the screen indicates the status of the system. Displays the camera type, status, and name registered in the recorder. Name Description Live > List Displayed when a problem occurs with the pan or recording status. Displayed when an error occurs in the power supply.

  • Page 77: Checking The All Camera Status

    CheCking the aLL CaMera status network status Click the < > button, followed by the <network> tab. You can check the status of all cameras connected to the recorder. You can check the status of network bandwidth currently being received/transmitted. Live status Click the <...

  • Page 78: Changing The Pattern Of Split Screen

    live viewer Changing the Pattern oF sPLit sCreen FuLL sCreen Mode Click the < > button and select the desired split screen. You can change to full screen mode, which has no top/bottom/left/right areas of the live screen. The selected split screen is applied to the video window. Click <...

  • Page 79: Check Layout List

    setting uP the LiVe Layout Change of Layout Channel and name This section outlines how to select a series of channels based on their purpose/accessibility and monitor them in a 1. Click < > after selecting a layout. single layout. 2.

  • Page 80: Real-Time Event Monitoring

    live viewer reaL-tiMe eVent Monitoring Check event List When new events occur, the list of events will be updated accordingly. Real-time events that occurred on the camera can be checked in the live video window and event list. ￭ The specified channels and events are displayed in the list according to the event rule setup. Live >...

  • Page 81: Event Instant Viewer

    event instant Viewer LiVe sCreen Menu Select an event to check from the event list, and click < > to play the recorded video at the time the event After selecting the desired channel on the split mode, roll the mouse cursor over the screen to see the live screen menu. occurred.

  • Page 82: Camera Video Control

    live viewer CaMera Video ControL Ptz Mode You can run PTZ control of the selected channel. By using the function icon in the video window, you can easily enable functions such as screenshot, video rotation, and PTZ control. Select the desired channel and click < >.

  • Page 83: Zoom In

    zoom in Channel aspect ratio You can zoom in or out using the mouse wheel. You can change the aspect ratio of each channel. If you scroll up using the mouse wheel, the selected video screen is enlarged by 10%, and a thumbnail window is Select the desired channel and click <...

  • Page 84: Ptz Control

    live viewer Ptz ControL using digital Ptz (d-Ptz) function Ptz Control Menu 1. Register a camera that supports the D-PTZ profile. ￭ In cameras that support the D-PTZ profile, you can use the D-PTZ function. If the connected network camera is a PTZ camera, the < >...

  • Page 85: Running Preset

    to delete a registered preset exPorting Video 1. Click < You can export the recorded video by manually inputting the desired channel, date, and time. >. 2. Select the preset to delete, and click <delete>. 1. Click the < > button. 3.

  • Page 86: Search Viewer

    search viewer search viewer You can search and play the recorded video stored in the recorder by connecting the recorder remotely. Name Description sCreen Layout oF the searCh VieWer Turns on/off the section setup. Saves the video of the selected channel in the designated path in AVI format. The date of the recorded video is displayed in orange, and the current date is displayed in a orange circle.

  • Page 87: Time Search

    tiMe searCh text searCh You can search the recorded data by the desired date and time conditions. You can search the data input to the POS device connected to the recorder. ￭ The time displayed will be based on the time zone and daylight saving time (DST) applied time zone, so it may be displayed differently depending on whether the data time zone recorded at the same time and daylight saving time (DST) is applied.

  • Page 88: Bookmark Search

    search viewer bookMark searCh searCh resuLts exPort You can search for bookmarked data. Search results of events, texts and bookmarks can be exported to a file. example) bookmark search result export 1. Click < > in the search results list. 1.

  • Page 89: Export Video By Section Setup

    export Video by section setup You can select the desired section from the time line or search list during video playing and export it to a file. 1. Click the < > button 2. Select the start and end points of the desired section in the time line with the mouse. 3.

  • Page 90: Play Search Results

    play PLay searCh resuLts Play button name and Function You can play the recorded data and export the video you want during playback. Paused state to adjust the time Line You can move the playback position and zoom the time line in and out. ●...

  • Page 91: Screen Layout Of The Setup Viewer

    setup viewer setting the CaMera You can configure the Recorder settings remotely on the network. You can check a list of cameras that are connected to the Recorder and configure the necessary settings. sCreen Layout oF the setuP VieWer For details, refer to the "setup > setting the Camera" page in the Table of Contents. register You can add a camera.

  • Page 92: Camera Setup

    setup viewer Camera setup Profile setup You can change the settings of the connected camera. You can set the profile for your camera. setup > Camera > Camera setup setup > Camera > Profile setup record You can set the record profile for your camera. When you click the <Camera webviewer>...

  • Page 93: Camera Password

    remote setting the reCording You can set the video profile transmitted to the network and the expansion monitor. For details, refer to the "setup > setting the recording" page in the Table of Contents. record schedule If you set a recording schedule for a specific date and time, the recording will start at that specific time. setup >...

  • Page 94: Record Options

    You can change the AI object detection event setup. ￭ The object detection function is displayed only when connected Wisenet AI camera. Motion detection & iVa You can change the motion detection and intelligent video analytics event setup.

  • Page 95: Event Rule Setup

    tampering detection alarm input You can change the tampering detection event setup. You can set the operation of the alarm sensor. setup > event > alarm input event rule setup You can set the event trigger and action rule to output an alarm when an event occurs. onViF setup setup >...

  • Page 96: Schedule

    setup viewer schedule setting the deViCe Whether to output an alarm can be scheduled according to the day and time. You can check a list of devices that are connected to the Recorder and configure the necessary settings. The initial setting will be an event sync, and an alarm will be sent only when an event occurs. For details, refer to the "setup >...

  • Page 97: Monitor

    Monitor event It is possible to set total amount conditions and keywords to display events of a POS device. You can set the information displayed on the monitor as well as the output system. setup > device > Monitor serial ￭...

  • Page 98: Setting The Network

    setup viewer setting the netWork ddns You can set DDNS. For details, refer to the "setup > setting the network" page in the Table of Contents. setup > network > ddns iP & Port A remote user can access the Recorder via the network to check the current mode and the IP address. setup >...

  • Page 99: Https

    httPs e-mail You can select a security connection system or install public certificates. You can specify the SMTP server that sends a mail if an event occurs and set the recipient group and users. setup > network > httPs setup > network > e-mail sMtP You can set the server that sends mails and specify if you use the authentication process.

  • Page 100: Snmp

    setup viewer recipient dhCP server You can set groups and recipients to receive emails. You can set the network camera IP address and check the details by setting up a DHCP server. setup > network > dhCP server network You can set the internal DHCP server and assign an IP address to the network camera. snMP Using the SNMP protocol, the system or network administrator can remotely monitoring the network devices and sets the environment.

  • Page 101: P2P

    setting the systeM This function is only available for products that support P2P. You can configure the various settings of the Recorder system. If you want to use P2P service, check the <enable P2P> box. For details, refer to the "setup > setting the system" page in the Table of Contents. You need to scan the QR code on the screen to use the P2P service.

  • Page 102: User

    setup viewer user restriction settings You can set the user permission. You can manage users, such as adding or deleting users and granting different authorities for each user. setup > system > user administrator You can change the admin ID or the password. system Management You can check the current system version and update to a new version, export data, setting initialization, and more.

  • Page 103: Log

    settings event log Using a storage device, you can apply the current configuration of Recorder to another Recorder. The event log lists recorded events, such as sensor events, camera events, or image losses. Press the Initialization button to return the network settings to their factory default state. Items in the <exception>...

  • Page 104: Export Viewer

    export viewer seC baCkuP VieWer screen Layout of the backup Viewer You can play a file that is backed up in the format of SEC. Backup in SEC format produces backup data file, library file and self-executable viewer file. If you run the backup file viewer, the backup data file will be played. HRX-1632_CAM 01 2021-04-27 20 :54 :13 recommended system requirements...
  • Page 105 Name Description Saves the current video's image as in an image file. Supports JPEG file format. Screen Printout Prints out the current screen. You should have installed the appropriate printer driver before you can print out the screen. A toggle button. Each time you press this button, the audio output will toggle between activated and deactivated.

  • Page 106: Appendix

    appendix use JoystiCk using VirtuaL keyboard The function is only available for the product that supports a joystick. For products that support joy stick, see page 4 "Products supporting each feature” of the Product Specification Manual. The SPC-2000 joystick is operated as follows : 1.

  • Page 107: Troubleshooting

    troubLeshooting Problem Action Problem Action The camera is not connected or the PC fails to connect to the ● Check if the network cable is connected properly. The frame number set for multiple data transmission set in camera or network environment Live video will be slow or cut off.
  • Page 108 appendix Problem Action Problem Action Exported data cannot be played on a PC or recorder. ● When setting the file format for exporting, first decide whether the device to be played is a PC ● If the sum of input data for each channel exceeds the limit, the alarm icon and the pop up In the live screen, the <...
