Page 1: Digital Video Recorder

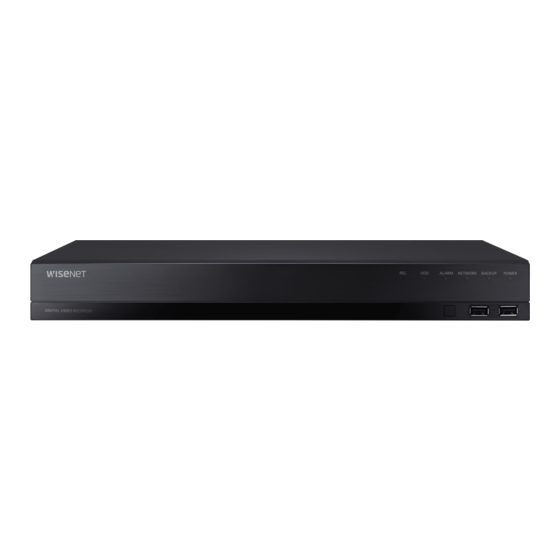

DIGITAL VIDEO RECORDER Quick Manual HRX-1621/HRX-1620 HRX-821/HRX-820 HRX-421/HRX-420... -
Page 2: Package Contents
Screws (4 EA) HRX-821: 12 pins, 15 pins) • Provides smartphone event alarm (sending real-time event messages) HRX-821: 4 EA) HRX-821: 16 EA) IMPORTANT HRX-1620/HRX-820/HRX-421 • See Installation Instructions Before Connecting to the Supply. https://www.hanwha-security.com/en/data-center/download-data/video-recorder/ ALARM NETWORK BACKUP POWER DIGITAL VIDEO RECORDER... -
Page 3: Hdd Installation
If you are adding a new or previously used HDD to this product in addition to the HDD(s) originally installed, format the new HDD manually in the set before use. DIGITAL VIDEO RECORDER To learn how to format, see "Device/Format" in the Wisenet Recorder User Manual. POWER HRX-1621/HRX-821... - Page 4 Refer to the figure below for the location/connector number of The images below are based on the HRX-1620 model. the HDD. Loosen the screws on the left/right sides and back Connect the SATA/power cable of the HDD to the and slide the cover back to remove it.
- Page 5 Install Wizard Setup HRX-420 Loosen the screws on the left/right sides and back Connect the SATA/power cable of the HDD to the and slide the cover back to remove it. connector on the motherboard. Select the language Select your preferred language. Fix the HDD to the bottom of the recorder with Check if there is any problem with the connection screws.
- Page 6 Camera ID/PW Setup Camera Register 4-1. Set a camera password in factory reset. The initial password for the camera must be entered. Registers the searched network cameras. 4-2. If ID/PW is already set in the camera, register the ID/PW and click <Next>. Select a camera to register from the searched camera list and click the <Register>...
-
Page 7: Record Setup
Record Setup Set up and run the layout You can set resolution, IPS, and quality of recordings by channel, and by recording type of standard / event. The layout set on the live screen can also be used for time search and can be searched and played according to the channel order and channel combination set by the user. -
Page 8: Live Launcher
Using the basic guide Browse View shortcut menu By right-clicking the live screen, you can use various functions provided by the recorder. If you hover over the icon, the definition of terms for each function is briefly displayed. RES : 1920x1080 (H.264) SET/IN/DEC : 30/30/30.0 XXX-0000 a The default value is <All channels>. - Page 9 HRX-1621 HRX-1621 d From now on, when you run the WiseNet mobile application saved to your smartphone, you can easily monitor with your smartphone as you are automatically connected to the recorder. HRX-1621 - CAM 05 The P2P service period expires in 5 years. If you want to extend it after expiration, contact your vendor.
-
Page 10: Connecting The Cable
Connecting to a network using a router Checking the recorder connection from the PC Enter the IP set in the recorder menu in the local PC address bar to go to the web viewer screen of the recorder. If you want to add 1-3 PCs and recorders in an environment using xDSL/Cable modem, you can use the router with only one Internet line. - Page 11 IP environment. product is set to <ON>. Enter the <Manufacturer ID>. • Wisenet DDNS Setup Enter the <Product ID> created on the Wisenet DDNS website in <Manufacturer ID>. HRX-1621 Since you will be accessing the recorder remotely, Open a browser, go to ddns.hanwha-security.com, and...
- Page 12 Hanwha Techwin cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products. The Eco mark represents Hanwha Techwin's devotion to creating environmentally friendly products, and indicates that the product satisfies the EU RoHS Directive. Correct Disposal of This Product (Waste Electrical &...
- Page 13 Head Office 6, Pangyo-ro 319 beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, 463-400 Rep. of KOREA Tel : +82.70.7147.8753 Fax : +82.31.8018.3740 www.hanwha-security.com Hanwha Techwin America 500 Frank W. Burr Blvd. Suite 43 Teaneck, NJ 07666 Toll Free +1.877.213.1222 Direct +1.201.325.6920 Fax +1.201.373.0124 www.hanwhasecurity.com Hanwha Techwin Europe Heriot House, Heriot Road, Chertsey, Surrey, KT16 9DT, United Kingdom...
