Summary of Contents for Wisenet HRX-835

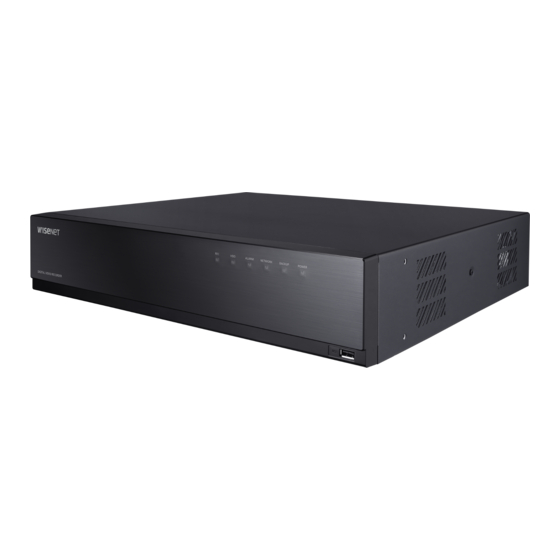

- Page 1 DIGITAL VIDEO RECORDER Quick Guide HRX-1632/HRX-835/HRX-435/HRX-434...
-
Page 2: Package Contents
● Supports thermal imaging camera/PTZ linked camera ● Supports a range of 4K camera resolutions (Supports up to 4M for HRX-1632 analog cameras) ● Outputs a 4K high definition image using HDMI (HRX-835/HRX-435/HRX-434) Recorder Mouse Quick Guide ● Supports dual monitor output (HRX-1632/HRX-835) ●... -
Page 3: Installing The Hdd
ALARM NETWORK BACKUP POWER ■ If you wish to replace or add an HDD, contact your dealer or our customer service first. DIGITAL VIDEO RECORDER HRX-1632/HRX-835 Recorder Mouse Quick Guide ■ The images below are based on the HRX-1632 model. - Page 4 HRX-434 Connect the SATA/power cable of the HDD to the After making sure that there is no problem with connector on the motherboard. the connection terminal and wiring inside the product, close the cover and fix it with screws. Loosen the screws on the back and slide the Connect the SATA/power cable of the HDD to the ■...
-
Page 5: Select The Language
Installation Wizard Setup Recorder ID/PW Setup As shown below, proceed through each step of the <Installation wizard>. Install Wizard can only be accessed at Sets the administrator's password. factory reset. If you do not want to proceed, click <Exit>. ■ You can set the installation wizard on the recorder and web viewer. -
Page 6: Date And Time Setup
Date & Time Setup Camera Register Set the date, time, time zone, and DST and then click <Next>. Registers the searched network cameras. 7-1 Select a camera to register from the searched camera list and click <Register>. 7-2 Select a camera to register from the list and click <Change IP>. 7-3 After completing camera register, click <Next>. -
Page 7: Record Setup
Explore Screen Configuration Record Setup The recorder screen consists of the following. You can set resolution, IPS, and quality of recordings by channel, and by recording type of standard / event. You can check frame rates and data transfer amount of Full Frame and Key Frame recordings for each channel, and ■... - Page 8 Set up and Run the Layout 2-1 Search The layout set on the live screen can also be used for time search and can be searched and played according to the channel order and channel combination set by the user. ■...
- Page 9 Using Product Information Export recorded video You can check the product information/manual/firmware information/FAQ/HDD compatibility list on the homepage or mobile web of your smartphone. http://hanwha-security.com http://hanwha-security.com Click < > at the bottom of the screen. Select a layout. Select a channel. Set the time, device, and format for export.
- Page 10 Using P2P Service From now on, when you run the WiseNet mobile application saved to your smartphone, you can easily monitor with your smartphone as you are automatically connected to the recorder. This function is available only for products that support P2P. To find products that support P2P, see ‘Products supporting each feature (Page 4)’...
- Page 11 Connecting to a Network Using a Router Checking the recorder connection from the PC Enter the IP set in the recorder menu in the local PC address bar. Once you log in by entering your user name If you want to add 1-3 PCs and recorders in an environment using xDSL/Cable modem, you can use the router with and password, the recorder’s web viewer screen appears.
- Page 12 DDNS address even in the dynamic IP environment. product is set to <ON>. Wisenet DDNS Setup HRX-1632 Since you will be accessing the recorder remotely, set up a Wisenet DDNS account first using a PC. Click <Sign Up>. Open a browser, < Wisenet DDNS Setup screen>...
- Page 13 Hanwha Techwin cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products. The Eco mark represents Hanwha Techwin's devotion to creating environmentally friendly products, and indicates that the product satisfies the EU RoHS Directive. Correct Disposal of This Product (Waste Electrical &...
