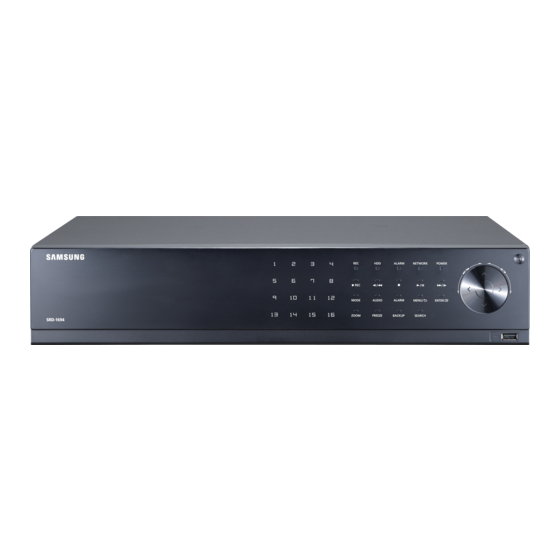

- Page 1 16 CHANNEL DVR Quick Manual SRD-1694/1685...
- Page 2 User Manual or Quick Manual User Manual CD Terminal Block (20 pin) Remote Control Battery (AAA) Bracket Fixing Screw Bracket Rack HDD Fixing Screw SATA Power Cable (SRD-1685) SATA Power Cable / SATA Data Cable SATA Data Cable (SRD-1694) 2_ English...
- Page 3 Wiring diagram for external devices AC 100-240V~IN ~ CH 16 IN CH 5 AU DIO HDMI VIDEO IN VIDEO OUT (VGA) AUDIO IN AUDIO OUT AUDIO IN SPOT eSATA HDD Recording Schedule 1. Press the [MENU] button on the remote control. 2.
- Page 4 Event Record Duration 1. Use the up/down buttons (▲▼) in <Record> window to move to <Event Record Duration>, and press [ENTER] button. Event Record Duration 2. Use direction buttons (▲▼_ +) to move to a desired item, and Pre Event POST Event ...
- Page 5 5. Select the “Advanced” tab in the “Virtual Server” menu, enter the IP address and port and click the <Apply> button. SRD-1694 Above instructions are based on D-LINK DI-624 router. Port forwarding setup may differ from the router’s manufacturer.
- Page 6 DDNS 1. Use the up/down buttons (▲▼) in <Network> window to move to DDNS <DDNS>, and press [ENTER] button. 2. Use virtual keyboard to enter user inputs. DDNS Site hanwha-security.com Server Name ddns.hanwha-security.com If selected <OFF> input fields are deactivated. ...
- Page 7 5. When a program installation wizard window appears, press the [Install] button to install the program. 6. When the program is installed, open the web viewer again to login. Live Viewer’s main screen appears when you log in successfully after installing the program. Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
- Page 8 Head Office 6, Pangyo-ro 319 beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, 463-400 Rep. of KOREA Tel : +82.70.7147.8753 Fax : +82.31.8018.3740 www.hanwha-security.com Hanwha Techwin America 500 Frank W. Burr Blvd. Suite 43 Teaneck, NJ 07666 Toll Free +1.877.213.1222 Direct +1.201.325.6920 Fax +1.201.373.0124 www.hanwha-security.com Hanwha Techwin Europe Heriot House, Heriot Road, Chertsey, Surrey, KT16 9DT, United Kingdom...
