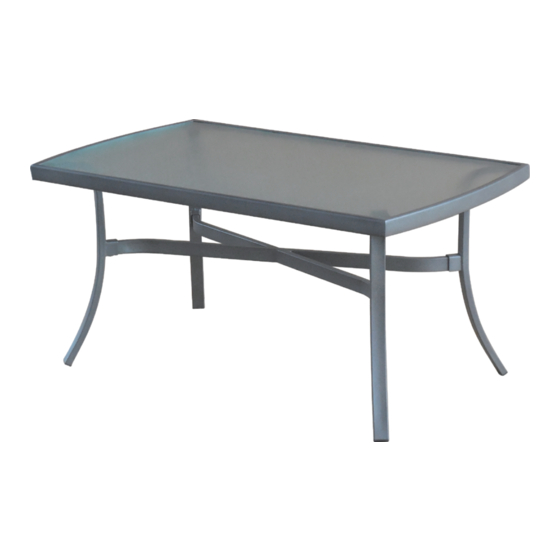

Courtyard Creations TGS37SW-WM Assembly Instructions

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE

PARTS LIST

PART
MATERIAL CODE
NO.
1
TGS37SW-CS01
2
TGS38SW-CS02
3
62TGS37SWY101
4
17C17A0403001Y4
You will need the following tools:
- Phillips Screwdriver (Not included)
- Hex. Key Wrench (See Part #8)
Step 1:
Place the table top (#1) onto a non-abrasive surface,
such as a carpet, with its underside facing upwards.
Insert the legs (#2) into the plastic holders attached on
the underside of the table top (#1) rim. Fasten them
together by using screws (#4). See Figure 1.
Use the correct bolts as indicated. Do not tighten any of the bolts until is completely assembled.
!
Do not sit or stand on this table.
!
Do not discard of any of the packaging until you have checked that you have all of the parts and
!
fittings required.
Keep children away during assembly. This item contains small parts that can be swallowed by
!
children. Children should always be under direct adult supervision while using this product.
Retain these assembly instructions for future reference.
!
Quote the following FQC NO. when contacting the service center.
!
INTENDED FOR RESIDENTIAL USE ONLY.
TGS37SW
PART Q'TY
TABLE TOP
LEG
CENTER CONNECTOR
SCREW ST4.2*12
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
STOP DON'T RETURN TO STORE!
PAGE 1 OF 2
-WM
PART
MATERIAL CODE
NO.
1 5
17C33A0709001Y4
6
4
17FA05040301-Y4
7
1
18000337004
4 8
17KAA0101----Y4
FIGURE 1
2
PART
BOLT M6*25
WASHER d6.5*D13*1.0
BOLT CAP
HEX. KEY WRENCH 4MM
2
2
1
4
COURTYARD CREATIONS INC.
Q'TY
4
4
4
1
2
