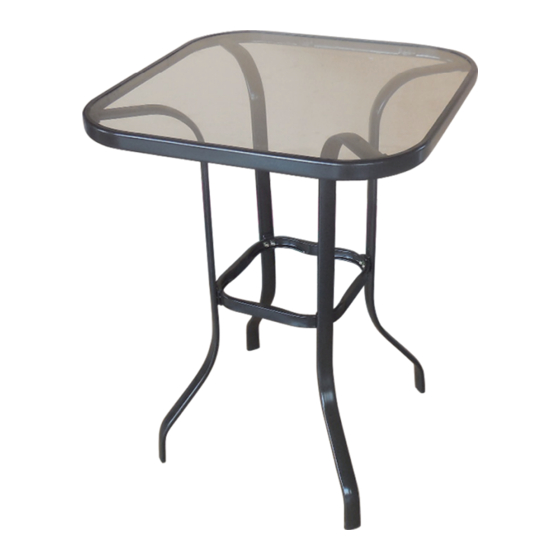

Courtyard Creations TGS28SC Assembly Instructions

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE

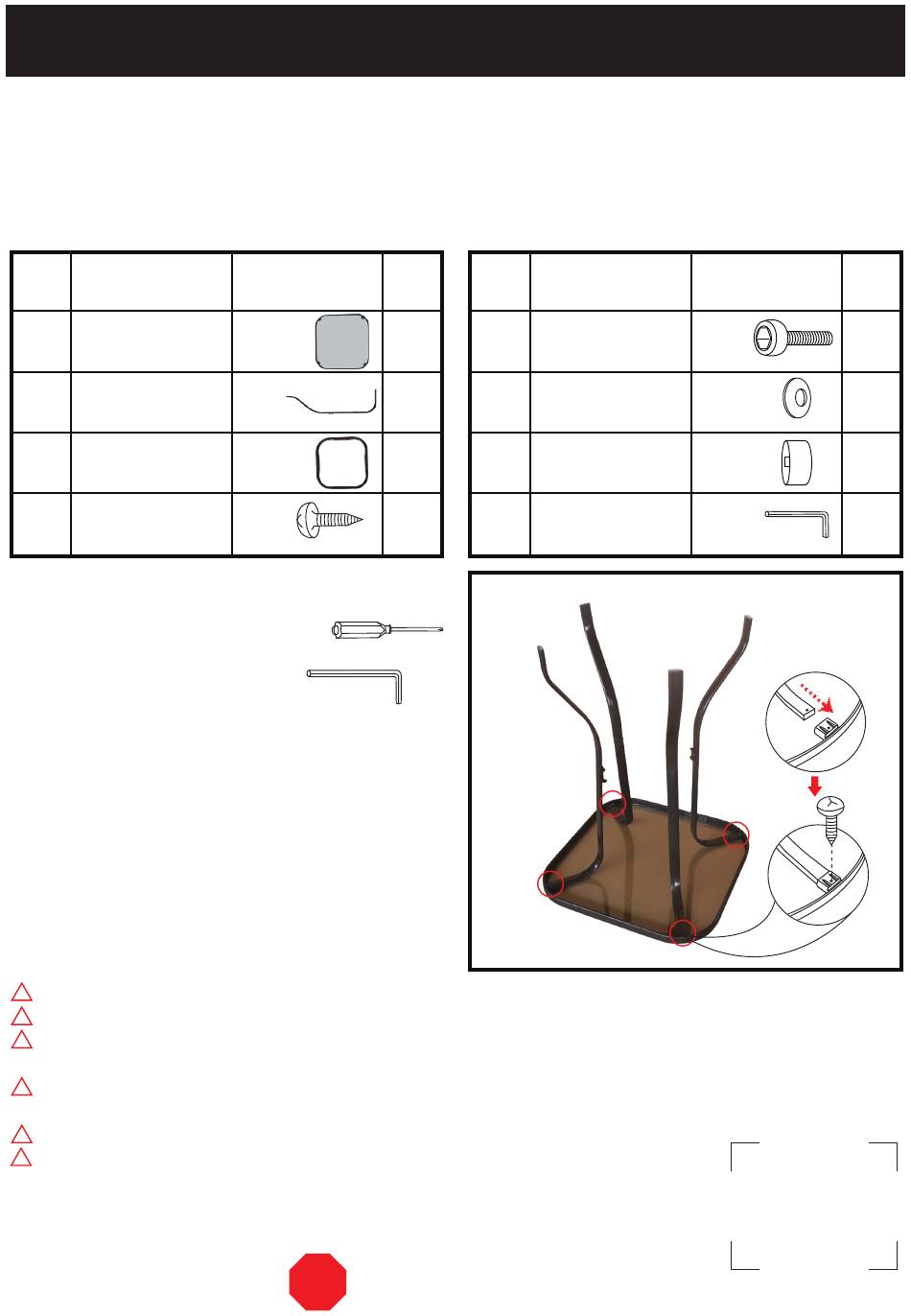

PARTS LIST

PART
MATERIAL CODE
NO.
1
TGS28SC-CS05-1
2
TGS28SC-CS04-1
3
62TGS28SCY101
4
17C17A0403001Y4
You will need the following tools:
- Phillips Screwdriver (Not included)
- Hex. Key Wrench (See Part #8)

Step 1:

Place the table top (#1) onto a non-abrasive
surface, such as a carpet, with its underside
facing upwards. Insert the legs (#2) into the plastic
holders attached on the underside of the table top
(#1) rim. Fasten them together by using screws
(#4). See Figure 1.
Use the correct bolts as indicated. Do not tighten any of the bolts until the table is completely assembled.
!
Do not sit or stand on this table.
!
Do not discard of any of the packaging until you have checked that you have all of the parts and
!
fittings required.
Keep children away during assembly. This item contains small parts that can be swallowed by
!
children. Children should always be under direct adult supervision while using this product.
Retain these assembly instructions for future reference.
!
Quote the following FQC NO. when contacting the service center.
!
INTENDED FOR RESIDENTIAL USE ONLY.
TGS28SC
PART Q'TY
1
TABLE TOP
4
LEG
1
CENTER
CONNECTOR
4
SCREW ST4.2*12
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
STOP DON'T RETURN TO STORE!
PAGE 1 OF 2
PART
MATERIAL CODE
NO.
5
17C01A0706002Y4
6
17FA05040301-Y4
7
18000337002
8
17KAA0201----Y4
FIGURE 1
2
2
1
COURTYARD CREATIONS INC.
PART
BOLT M6*16
WASHER d6.5*D13*1.0
BOLT CAP M6
HEX.KEY WRENCH 6MM
2
2
Q'TY
8
8
8
1
4
