Courtyard Creations TGS83HS-WM Assembly Instructions

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE

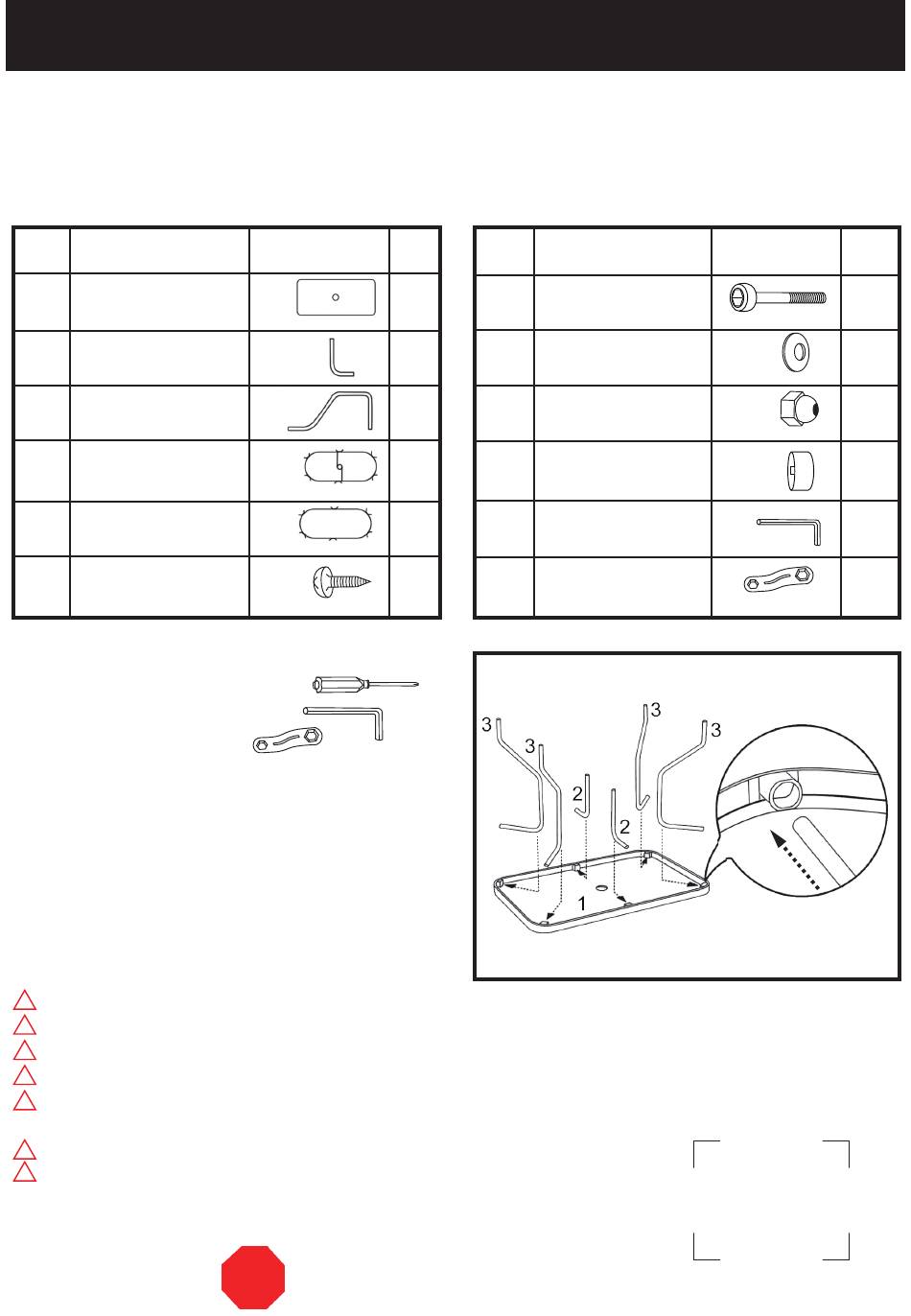

PARTS LIST

PART
MATERIAL CODE
NO.
1 TGS83HS-CS01
2
TGS83HS-CS02
3
TGS83HS-CS03
4 62TGS83HSY201
5 62TGS83HSY101
6
17C17A0403001Y4
You will need the following tools:
-Phillips Screwdriver (Not Included)
-Hex.Key Wrench (See Part #11)
-Nut Wrench (See Part #12)

Step 1:

Place the table top (#1) onto a non-abrasive surface,
such as a carpet, with its underside facing upwards.
Insert the legs (#3) and the supports (#2) into the plastic
holders attached on the underside of the table top (#1)
rim. See Figure 1.
Use the correct bolts as indicated. Do not tighten any of the bolts until is completely assembled.
!
Do not sit or stand on this table.
!
A weighted umbrella base must be used when using an umbrella with this table.
!
Do not discard of any of the packaging until you have checked that you have all of the parts and fittings required.
!
Keep children away during assembly. This item contains small parts that can be swallowed by children.
!
Children should always be under direct adult supervision while using this product.
Retain these assembly instructions for future reference.
!
Quote the following FQC NO. when contacting the service center.
!
INTENDED FOR RESIDENTIAL USE ONLY.
TGS83HS-
PART Q'TY
TABLE TOP
SUPPORT
LEG
CENTRE
CONNECTOR WITH RING
CENTRE CONNECTOR
SCREW ST4.2*12
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
DON'T RETURN TO STORE!
STOP
PAGE 1 OF 2
WM
PART
MATERIAL CODE
NO.
1 7 17C01A0721091Y4
2 8
17FA05040301-Y4
4 9
18000C23001
1 10 18000337002
1
11 17KAA0201----Y4
2 12
17KAB1101----Y4
FIGURE 1
PART
BOLT M6*60
WASHER d6.5*D13*1.0
PLASTIC NUT M6*P1.0
BOLT CAP M6
HEX.KEY
WRENCH 6MM
NUT WRENCH 10&13MM
COURTYARD CREATIONS INC.
Q'TY
12
24
12
12
1
1
