Courtyard Creations TGS38FG Assembly Instructions

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE

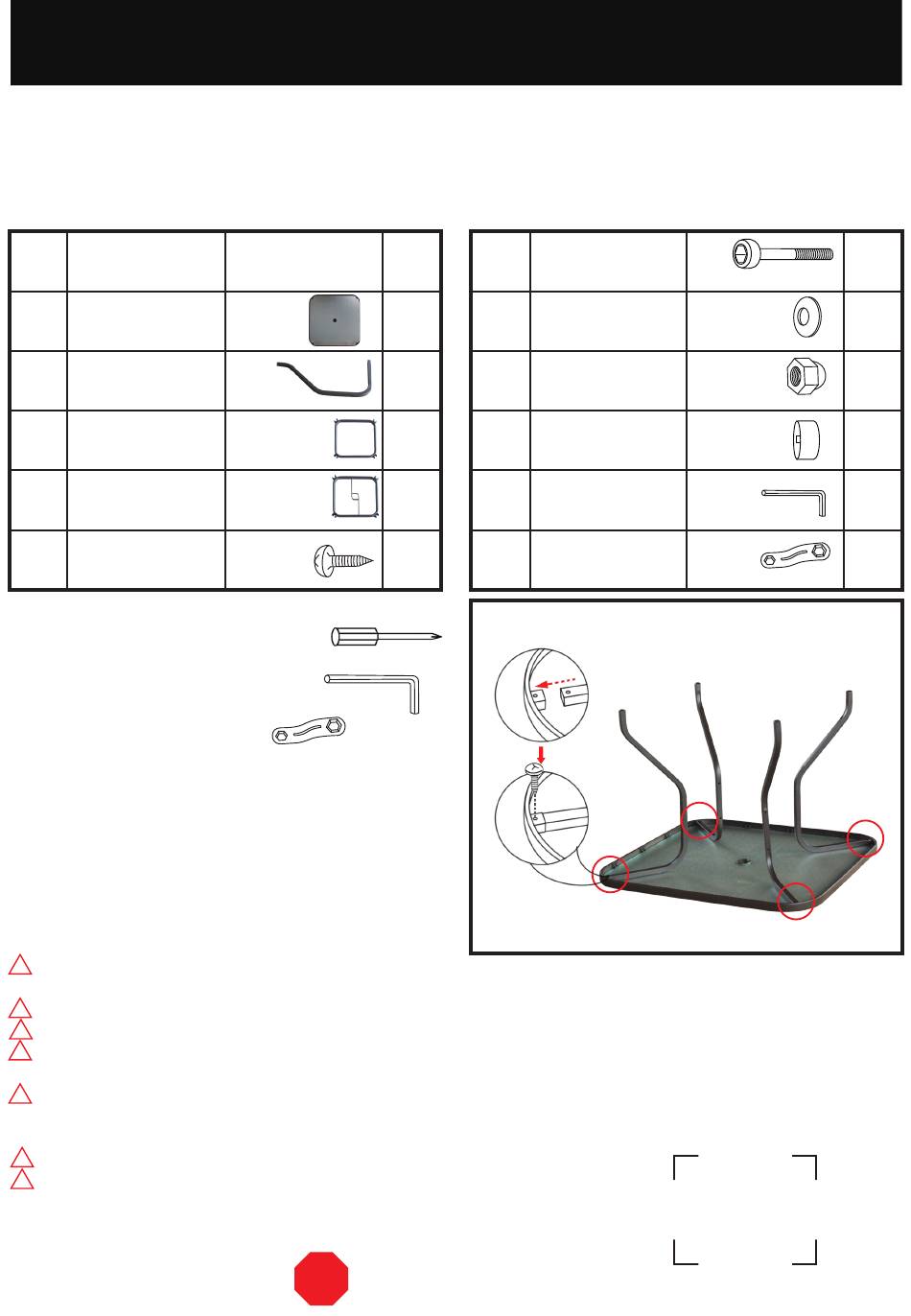

PARTS LIST

PART
MATERIAL CODE
NO.
1
TGS38FG-CS01
2
TGS38FG-CS02
3
62TGS38FGY101
4
62TGS38FGY102
5
17C17A0403001Y4

You will need the following tools:

- Phillips Screwdriver (Not Included)
- Hex. Key Wrench (See Part #10)
- Nut Wrench (See Part #11)

Step 1:

Place the table top (#1) onto a non-abrasive
surface, such as a carpet, with its underside facing
upwards. Insert the legs (#2) into the plastic holders
attached on the underside of the table top (#1) rim.
Fasten them together by using screws (#5).
See Figure 1.
! Use the correct bolts as indicated. Do not tighten any of the bolts until is completely
assembled.
Do not sit or stand on this table.
!
A weighted umbrella base must be used when using an umbrella with this table.
!
! Do not discard of any of the packaging until you have checked that you have all of the parts
and fittings required.
Keep children away during assembly. This item contains small parts that can be swallowed
!
by children. Children should always be under direct adult supervision while using this
product.
! Retain these assembly instructions for future reference.
! Quote the following FQC NO. when contacting the service center.
INTENDED FOR RESIDENTIAL USE ONLY.
TGS38FG
PART Q'TY
TABLE TOP
LEG
CENTER CONNECTOR
CENTER
CONNECTOR WITH RING
SCREW ST4.2*12
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
STOP DON'T RETURN TO STORE!
PAGE 1 OF 2
6
17C01A0719072Y4
7
1
17FA05040301-Y4
8
4
18000C23001
9
1
18000337002
10
1
17KAA0201----Y4
4
11
17KAB1101----Y4
FIGURE 1
5
COURTYARD CREATIONS INC.
BOLT M6*55
WASHER d6.5*D13*1.0
PLASTIC NUT M6*P1.0
BOLT CAP M6
HEX.KEY WRENCH 6MM
NUT WRENCH 10&13MM
2
2
2
1
8
16
8
8
1
1
2
