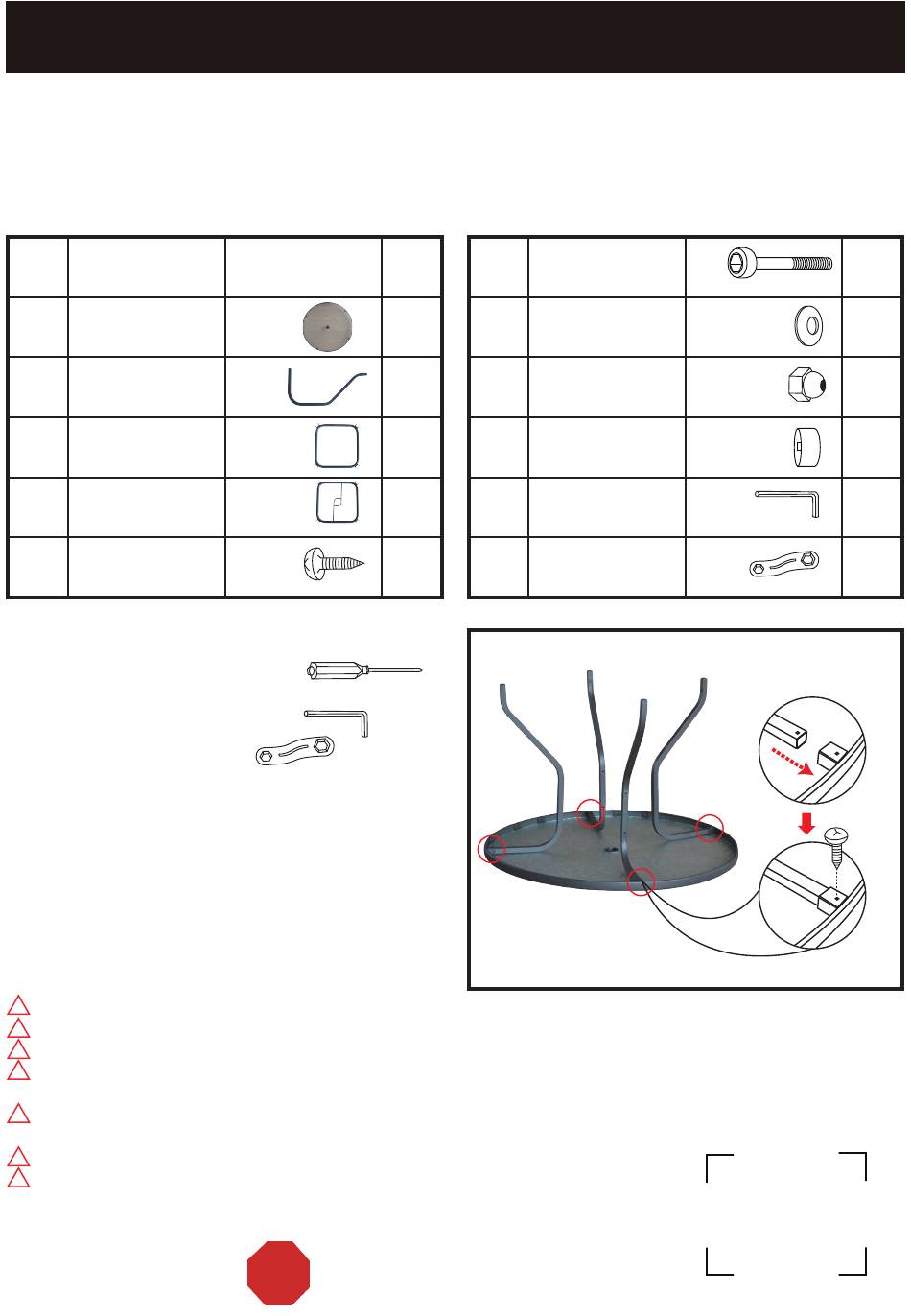

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE
PARTS LIST
PART
MATERIAL CODE
NO.
1
TGS42FG-CS01
2
TGS42FG-CS02
3
62TGS42FGY101
4
62TGS42FGY102
5
17C17A0403001Y4
You will need the following tools:
- Phillips Screwdriver (Not Included)
- Hex. Key Wrench (See Part #10)
- Nut Wrench (See Part #11)
Step 1:
Place the table top (#1) onto a non-abrasive surface,
such as a carpet, with its underside facing upwards.
Insert the legs (#2) into the plastic holders on the
underside of the table top (#1) rim. Fasten them together
by using screws (#5). See Figure 1.
Use the correct bolts as indicated. Do not tighten any of the bolts until is completely assembled.
!
Do not sit or stand on this table.
!
A weighted umbrella base must be used when using an umbrella with this table.
!
Do not discard of any of the packaging until you have checked that you have all of the parts and fittings
!
required.
Keep children away during assembly. This item contains small parts that can be swallowed by children.
!
Children should always be under direct adult supervision while using this product.
Retain these assembly instructions for future reference.
!
Quote the following FQC NO. when contacting the service center.
!
INTENDED FOR RESIDENTIAL USE ONLY.
TGS42FG-
PART
Q'TY
TABLE TOP
LEG
CENTER
CONNECTOR
CENTER
CONNECTOR WITH RING
SCREW ST4.2*12
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
DON'T RETURN TO STORE!
STOP
PAGE 1 OF 2
WM
6
17C01A0719072Y4
1
7
17FA05040301-Y4
4
8
18000C23001
1
9
18000337002
1
10
17KAA0201----Y4
4
11
17KAB1101----Y4
FIGURE 1
2
1
BOLT M6*55
WASHER d6.5*D13*1.0
PLASTIC NUT M6*P1.0
BOLT CAP M6
HEX.KEY WRENCH 6MM
NUT WRENCH 10&13MM
2
2
2
COURTYARD CREATIONS INC.
8
16
8
8
1
1
5
Advertisement
Related Manuals for Courtyard Creations TGS42FG-WM
Summary of Contents for Courtyard Creations TGS42FG-WM
- Page 1 Children should always be under direct adult supervision while using this product. Retain these assembly instructions for future reference. Quote the following FQC NO. when contacting the service center. SERVICE CENTER TOLL FREE NO. TEL: 1-877-539-7436 FAX: 1-877-539-7439 DON’T RETURN TO STORE! STOP COURTYARD CREATIONS INC. PAGE 1 OF 2...
- Page 2 FIGURE 2 FIGURE 3 Step 2: Step 3: Fasten the center connector (#3) to the middle of the Fasten the center connector with ring (#4) to the middle legs (#2) by using bolts (#6), washers (#7) and plastic of the legs (#2) by using bolts (#6), washers (#7), and nuts (#8).
