NRS Healthcare M99448 User Instructions

L22056
M99448
M66119

General Safety Warning

Please ensure these instructions are fully read and
understood before installation/ use. Retain these
instructions in a safe place for future reference.

Intended Use

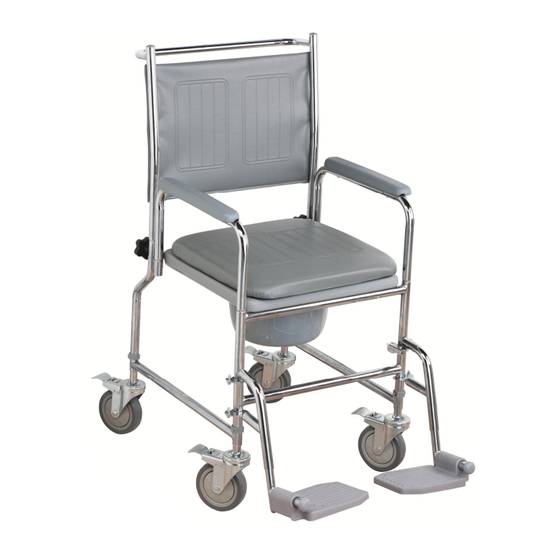

The Wheeled Commode range is designed to be
used, either as a commode, or over the toilet. It may
be used for short transfers on even floor surfaces to
move the client over the toilet subject to a suitable
risk assessment. It is suitable for less mobile clients.
The products feature; removable arms to allow side
transfers, detachable swing away footrests and four
brake castors. Model M66119 is also height
adjustable.

Limitations of use

Do not use as an alternative to a wheelchair.
Do not use in the shower/ as a shower chair.
Do not use to transfer clients over raised thresholds.
The commode should only be used indoors.
If you have any doubts about the restrictions on use,
please contact NRS (details on reverse).

Unpacking

Remove all items from the packaging, check all the
items listed below are present (dependant on model
type). Check each component for any visible damage.
If you see any damage, or suspect a fault, do not
assemble the product; but contact your supplier
immediately

Contents:

Main Chassis (c/w Castors)
Main Chassis
Seat Cover
Detachable arms
Detachable back
Potty
Footrest
Adjustable Height Castors
Hand wheel
E - Clip
User Instructions
NRS Wheeled Commode Fixed Height
NRS Wheeled Commode Wide/Fixed Height
NRS Wheeled Commode Height Adjustable
L22056
M66119
M99448
P
P
P P
P P
P P
P P
P P
P
P P
P
Model:
M66119

Assembly Instructions:

1 – M66119 Only
Fit the Adjustable height castors to the main
chassis, slide the tube to the desired height, and
check that all legs are equal in height. Secure
with the E-clips provided, making sure each clip is
fully connected.
Please note; the height should be set so the client
feels comfortable, but ensure there is adequate
clearance if being used over a toilet
2 – All models
Place the chassis on a level floor.
3 – At the rear of the commode there are two
black threaded hand wheels. Undo the hand
wheels so that the screw thread is clear from the
Qty.
inside of the vertical tubes. Place the tubes of the
detachable back into the chassis tubes and
1
secure by turning the hand wheels until you feel
1
the resistance and the screw thread is biting
1
against the leg of the backrest.
2
Caution: DO NOT over tighten the hand
1
wheels. Do not use tools as it is only
1
necessary for the back to be secured finger
tight.
2
4
4 - Place the two detachable arms into the
2
locating holes on either side of the seat moulding,
4
ensuring they are fully inserted and secure.
30st
190kg
Max.
User
Weight
25st
160kg
