P63991

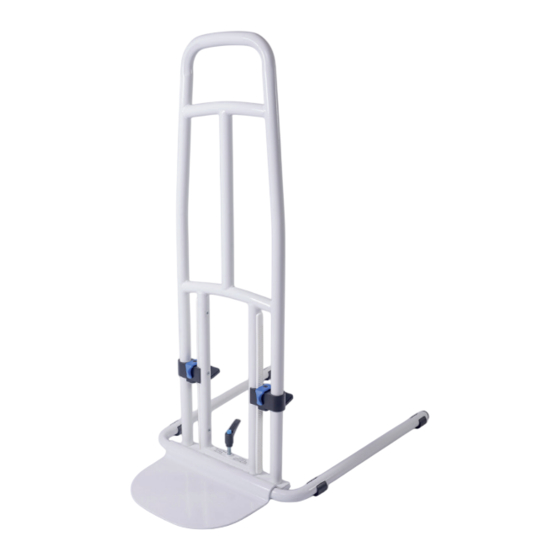

EasyFit Plus Bed Rail MK2 - Standard
General Safety Warning
Please make sure that you read and follow these
instructions carefully. Keep these instructions in a
safe place for future reference.
1.
INTENDED USE
To provide stable support to aid adult users (taller than 1.46 m) transfer in and out of bed, moving from a lying to a
sitting position as well as assist user repositioning. Designed for use with most types of domestic beds including;
divans with feet / castors, framed slatted beds and electric profiling beds.
2.
SAFETY
318mm
Min
WARNING: To avoid possible entrapment, you must
always position the product a minimum of 318 mm from
the headboard or footboard.
WARNING: To prevent additional entrapment hazards,
we recommend that you install the product at least
318 mm away from any adjacent bedside furniture. Where
this is not possible, the prescriber must do a risk analysis.
WARNING: To prevent hand entrapment do not hold the
grab rail when altering the profile of the bed.
WARNING: The maximum user weight must not be more
than 160 kg (25 st).
YOU MUST carry out a risk assessment to assess the
use and suitability of the bed rail in relation to the users
physical and cognitive ability, as well as the surrounding
environment.
DO NOT install this product to a damaged bed.
ALWAYS check the profiling operation of the bed with the
grab rail already fixed in position, for any potential risks
prior to use.
USER INSTRUCTIONS
EASYFIT PLUS BED RAIL MK2
P64004
ALWAYS make sure that the mattress is as close as
possible to the bed rail. Any gap could allow the client to
become wedged in-between.
DO NOT use on electrically height adjustable beds unless
the height adjustment function has been disabled, as this
could damage the bed rail and / or the bed frame when
operated.
ALWAYS make sure the bed rail is firmly clamped to
the bed frame. Check regularly to ensure the bed rail is
securely clamped.
ALWAYS detach the handrail from the base before
carrying or storing the product.
3.
Remove the packaging and check all parts carefully.
Contact your supplier immediately if parts are missing or
damaged and do not try and assemble.
3.1
1.
2.
Recommended Bed Rail Heights
NRS recommends fitting the standard bed rail (P63991)
on beds with a mattress height up to 600 mm; for higher
beds, the tall bed rail (P64004) should be used.
1
EasyFit Plus Bed Rail MK2 - Tall
Maximum User Weight
25st
160kg
UNPACKING
Contents:
Base Frame x 1
Handrail Assembly x 1
P64004 (Tall) for
beds heights more
than 600 mm (24")
P63991 (Standard) for
beds heights less than
600 mm (24")

Advertisement

loading
Need help?

Need help?

Do you have a question about the EASYFIT PLUS BED RAIL MK2 and is the answer not in the manual?

Questions and answers

Summary of Contents for NRS Healthcare EASYFIT PLUS BED RAIL MK2

  • Page 1 USER INSTRUCTIONS EASYFIT PLUS BED RAIL MK2 P63991 EasyFit Plus Bed Rail MK2 - Standard P64004 EasyFit Plus Bed Rail MK2 - Tall General Safety Warning Maximum User Weight Please make sure that you read and follow these instructions carefully. Keep these instructions in a 25st safe place for future reference.
  • Page 2 HANDRAIL ASSEMBLY FITTING TO THE BED Make sure that the floor surface is level and even. Fit the Handrail Assembly to the Base: The bed base must be at least 30 mm above the floor and clear of obstructions. Slide the Bed Rail Under the Bed Note: Make sure the bed clamp plates point in the direction shown.
  • Page 3 Divan and Low Bed Frame Tightening Full turns of the tightening lever may not be possible on some divan and low frame beds. Use the following steps to adjust the bed rail; Step 1 Slide the blue clamp levers outwards to unlock the ratchet clamps.
  • Page 4 Hill, Coalville, Leicestershire, LE67 1UB, UK. Tel: Customer Services: +44 (0)345 121 8111 Email: customerservice@nrshealthcare.co.uk NRS Healthcare is a leading supplier of community equipment and daily living aids. Please visit one of our websites to view our full range of products: www.healthcarepro.co.uk or www.completecareshop.co.uk...
