Important General Safety Warning
Please ensure these instructions are fully read and
implemented. Failure to do so may result in injury.
Retain these instructions in a safe place for future
reference.
1.0 Intended Use
The 2 in 1 Bed Rail provides stable support to assist clients getting into, and out of, bed. When in
bed, the Bed Rail can be used to assist raising to a sitting position or repositioning when lying.
Designed for use with divan beds (except sprung divan base), most slatted domestic beds, and is
suitable for all bed sizes from single to king-size. It can also be fitted to super king-size beds with
additional straps (see back page for details). Not suitable for profiling beds.
2.0 Safety
2.1 WARNING To avoid possible head entrapment,
position the Bed Rail at least 320mm (12.5") away from
both headboard and footboard. See diagram.
2.2 ALWAYS ensure that the mattress is as close as
possible to the Bed Rail. Any gap could allow the client
to become wedged in-between.
2.3 DO NOT exceed product Maximum User weight:
160kg (25st)
2.4 Always use the Securing Straps provided when fitting
to a divan bed.
2.5 Regularly check the straps are tight and the device is
stable and firmly fitted.
2.6 Not suitable for use by children.
2.7 Do not fit this product to profiling beds or sprung divan beds. NRS Healthcare have a range
of products for these applications, please refer to our website, or contact our helpline.
3.0 Unpacking
Carefully unpack the product. Check all parts
are present (see Contents List). Check for
damage. If you see, or suspect a fault, do not
assemble or use the product. Contact your
supplier immediately.

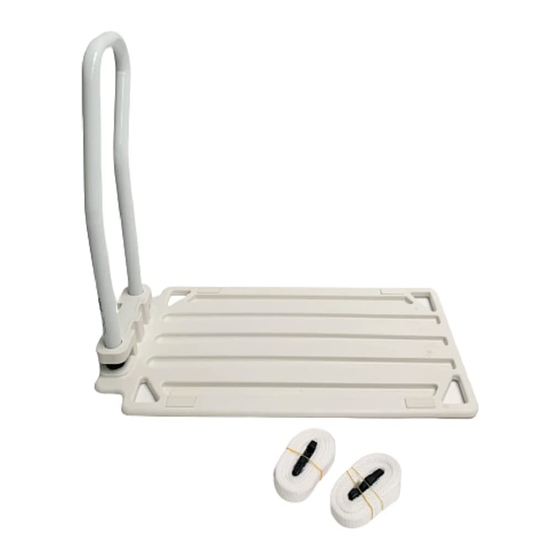

ITEM
CONTENTS
1
E-Clip
2
Bed Rail Board
3
Hand rail
4
Bed Straps
User Instructions
M48192 - 2 in 1 Bed Rail Mk2
QTY
2
1
1
2
1
Maximum
User Weight
160kg
UK PATENT 2429148
320mm
(12.5")
Minimum
1
2
25st
3
4
