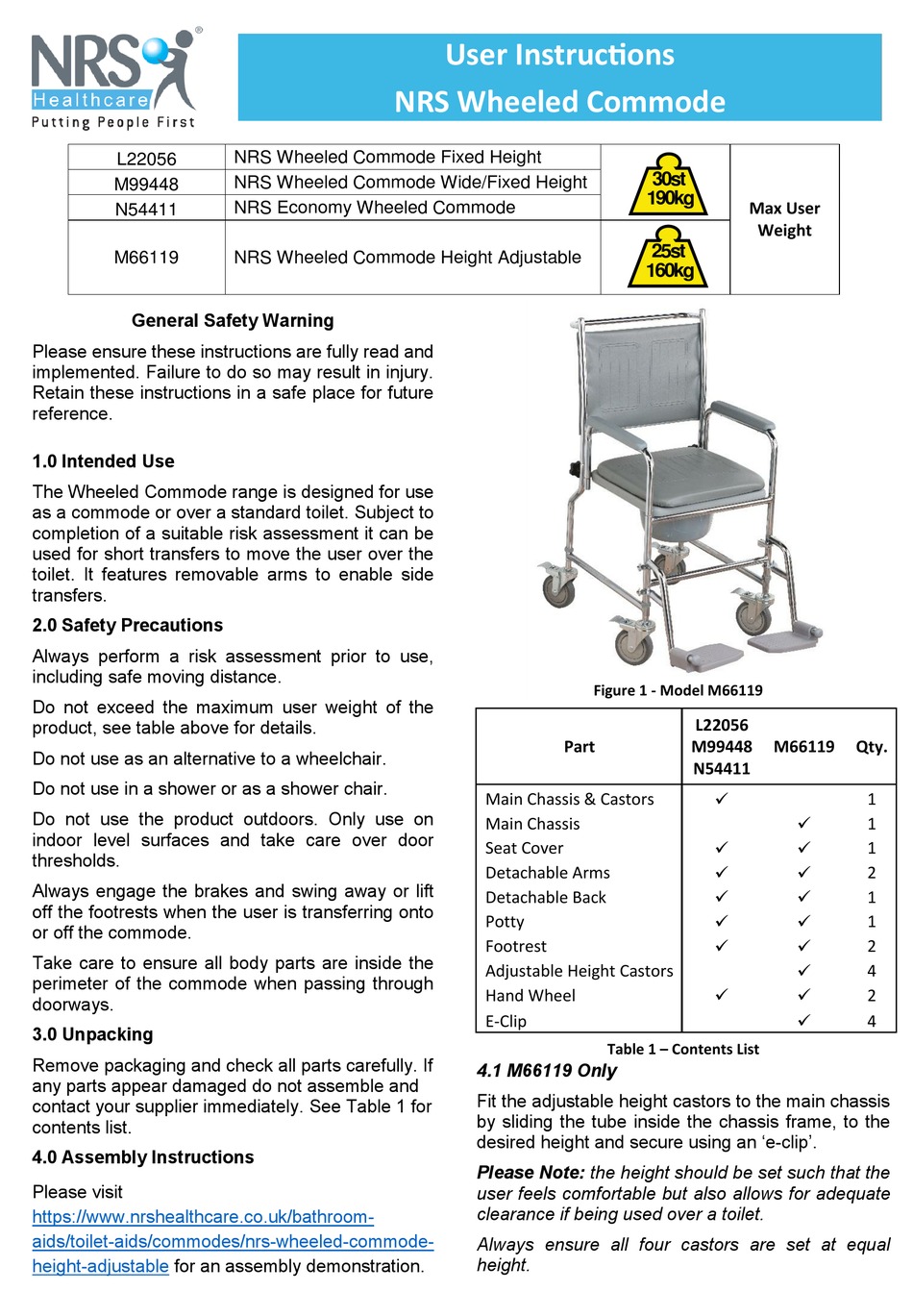

NRS Healthcare L22056 User Instructions

NRS Healthcare L22056 User Instructions

Wheeled commode

Advertisement

Quick Links

L22056
M99448
N54411
M66119

General Safety Warning

Please ensure these instructions are fully read and
implemented. Failure to do so may result in injury.
Retain these instructions in a safe place for future
reference.

1.0 Intended Use

The Wheeled Commode range is designed for use
as a commode or over a standard toilet. Subject to
completion of a suitable risk assessment it can be
used for short transfers to move the user over the
toilet. It features removable arms to enable side
transfers.

2.0 Safety Precautions

Always perform a risk assessment prior to use,
including safe moving distance.
Do not exceed the maximum user weight of the
product, see table above for details.
Do not use as an alternative to a wheelchair.
Do not use in a shower or as a shower chair.
Do not use the product outdoors. Only use on
indoor level surfaces and take care over door
thresholds.
Always engage the brakes and swing away or lift
off the footrests when the user is transferring onto
or off the commode.
Take care to ensure all body parts are inside the
perimeter of the commode when passing through
doorways.

3.0 Unpacking

Remove packaging and check all parts carefully. If
any parts appear damaged do not assemble and
contact your supplier immediately. See Table 1 for
contents list.

4.0 Assembly Instructions

Please visit
https://www.nrshealthcare.co.uk/bathroom-
aids/toilet-aids/commodes/nrs-wheeled-commode-
height-adjustable
for an assembly demonstration.
NRS Wheeled Commode
NRS Wheeled Commode Fixed Height
NRS Wheeled Commode Wide/Fixed Height
NRS Economy Wheeled Commode
NRS Wheeled Commode Height Adjustable
User Instructions

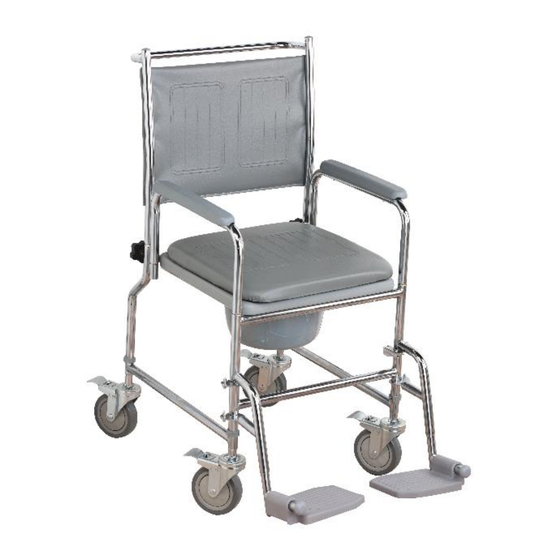

Figure 1 - Model M66119
Part
Main Chassis & Castors
Main Chassis
Seat Cover
Detachable Arms
Detachable Back
Potty
Footrest
Adjustable Height Castors
Hand Wheel
E-Clip
Table 1 – Contents List

4.1 M66119 Only

Fit the adjustable height castors to the main chassis
by sliding the tube inside the chassis frame, to the
desired height and secure using an 'e-clip'.
Please Note: the height should be set such that the
user feels comfortable but also allows for adequate
clearance if being used over a toilet.
Always ensure all four castors are set at equal
height.
30st
190kg
Max User
Weight
25st
160kg
L22056
M99448
M66119
N54411
Qty.
1
1
1
2
1
1
2
4
2
4
