NRS Healthcare M66119 User Instructions

L22056 Wheeled Commode Fixed Height
N54411 Economy Wheeled Commode Fixed Height
General Safety Warning
Please make sure that you read and follow
these instructions carefully. Keep these
instructions in a safe place for future reference.
1.

INTENDED USE

The Wheeled Commode range has been designed for use as a traditional commode or for use over a
standard toilet. Subject to completion of a suitable risk assessment, the wheeled commode can be used for
short transfers to move the user over the toilet. It features removable arms to enable side transfers.
2.

SAFETY

Warning: Do not exceed the maximum user weight
specifi ed for each product.
Always perform a risk assessment prior to use,
including safe moving distance.
Do not use as an alternative to a wheelchair.
Do not use in a shower or as a shower chair.
Do not use the product outdoors.
Only use indoors on level surfaces and take care
over door thresholds.
Always engage the brakes and swing away or lift off
the footrests when the user is transferring onto or off
the commode.
Take care to ensure all body parts are inside the
perimeter of the commode when passing through
doorways.
USER INSTRUCTIONS

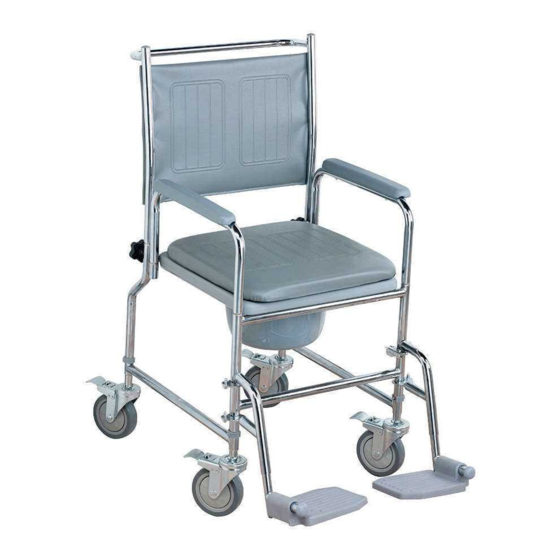

NRS WHEELED COMMODE
M66119 Wheeled Commode Height Adjustable
3.
Remove the packaging and check all parts carefully.
Contact your supplier immediately if parts are
missing or damaged and do not try and assemble.
3.1
Main Chassis & Castors
Main Chassis
Seat Cover
Detachable Arms
Detachable Back
Potty
Footrest
Adjustable-Height Castors
Hand Wheel
E-Clip
4.
4.1
Slide the castors into the main chassis, set to the
desired height, then secure with the e-clips.
Note: Make sure that all castor legs have been set
to the same height.
1
Maximum User Weight
30st
190kg
L22056 & N54411

UNPACKING

Contents:
Part L22056 N54411 M66119 Qty

ASSEMBLY

Fitting the Castors (M66119 Only):

25st
160kg
M66119
1

1

1
 
2
 
1
 
1
 
2
 
4

2
 
4

