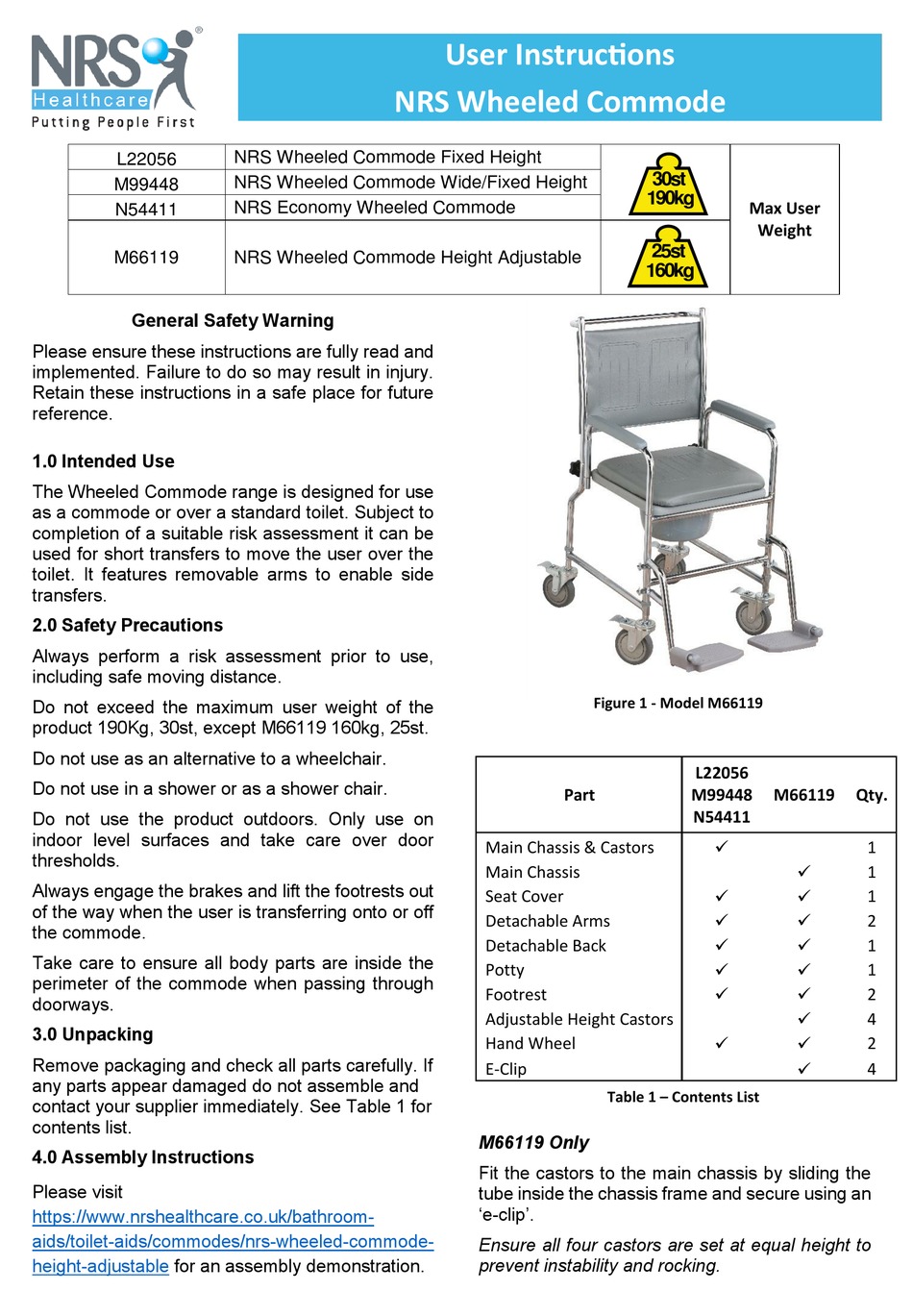

NRS Healthcare N54411 User Instructions

L22056
M99448
N54411
M66119
General Safety Warning
Please ensure these instructions are fully read and
implemented. Failure to do so may result in injury.
Retain these instructions in a safe place for future
reference.
1.0 Intended Use
The Wheeled Commode range is designed for use
as a commode or over a standard toilet. Subject to
completion of a suitable risk assessment it can be
used for short transfers to move the user over the
toilet. It features removable arms to enable side
transfers.
2.0 Safety Precautions
Always perform a risk assessment prior to use,
including safe moving distance.
Do not exceed the maximum user weight of the
product 190Kg, 30st, except M66119 160kg, 25st.
Do not use as an alternative to a wheelchair.
Do not use in a shower or as a shower chair.
Do not use the product outdoors. Only use on
indoor level surfaces and take care over door
thresholds.
Always engage the brakes and lift the footrests out
of the way when the user is transferring onto or off
the commode.
Take care to ensure all body parts are inside the
perimeter of the commode when passing through
doorways.
3.0 Unpacking
Remove packaging and check all parts carefully. If
any parts appear damaged do not assemble and
contact your supplier immediately. See Table 1 for
contents list.
4.0 Assembly Instructions
Please visit
https://www.nrshealthcare.co.uk/bathroom-
aids/toilet-aids/commodes/nrs-wheeled-commode-
height-adjustable for an assembly demonstration.
NRS Wheeled Commode
NRS Wheeled Commode Fixed Height
NRS Wheeled Commode Wide/Fixed Height
NRS Economy Wheeled Commode
NRS Wheeled Commode Height Adjustable
User Instructions
Figure 1 - Model M66119
Part
Main Chassis & Castors
Main Chassis
Seat Cover
Detachable Arms
Detachable Back
Potty
Footrest
Adjustable Height Castors
Hand Wheel
E-Clip
Table 1 – Contents List
M66119 Only
Fit the castors to the main chassis by sliding the
tube inside the chassis frame and secure using an
'e-clip'.
Ensure all four castors are set at equal height to
prevent instability and rocking.
30st
190kg
Max User
Weight
25st
160kg
L22056
M99448 M66119
N54411


 
 
 
 
 

 

Qty.
1
1
1
2
1
1
2
4
2
4
