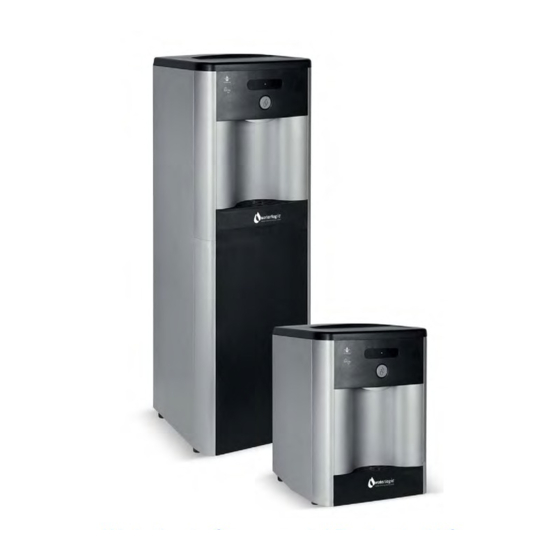

WaterLogic WL200 Troubleshooting
Hide thumbs
Also See for WL200:
- Manual (48 pages) ,
- Operating, installation and service manual (41 pages) ,
- Installation procedures manual (8 pages)
Advertisement
1. Red Power Switch is lit but the red LED on the Front is not lit
2. Compressor Runs but does Not Chill
3. Compressor is Not Running
1. Red Power Switch is lit but the Red LED on the Front is not lit
Possible Reason
Bad Transformer
Black Power Connector to the
PCB is not properly connected
Bad Front PCB
Defective Red Power /
Compressor Switch
2. Compressor Runs But Does Not Chill
Possible Reason
Condenser is dirty
Reduction of airflow into unit.
Compressor is running very
hot.
WL200 Manual
POWER TROUBLESHOOTING INDEX
Replace Transformer
Properly connect.
Replace Main PCB
Part Number: EN-6086 / Waterlogic P/N 12-8615.
Replace Red Power / Compressor Switch
Clean the condensing coil of any obstructions or dust.
Make sure unit is not under minimum ventilation requirements (2
to 4 inches).
Low or lost refrigerant. Refrigerant recharge required.
Solution
Solution
Page 39 - Revision: 4-29-2019
