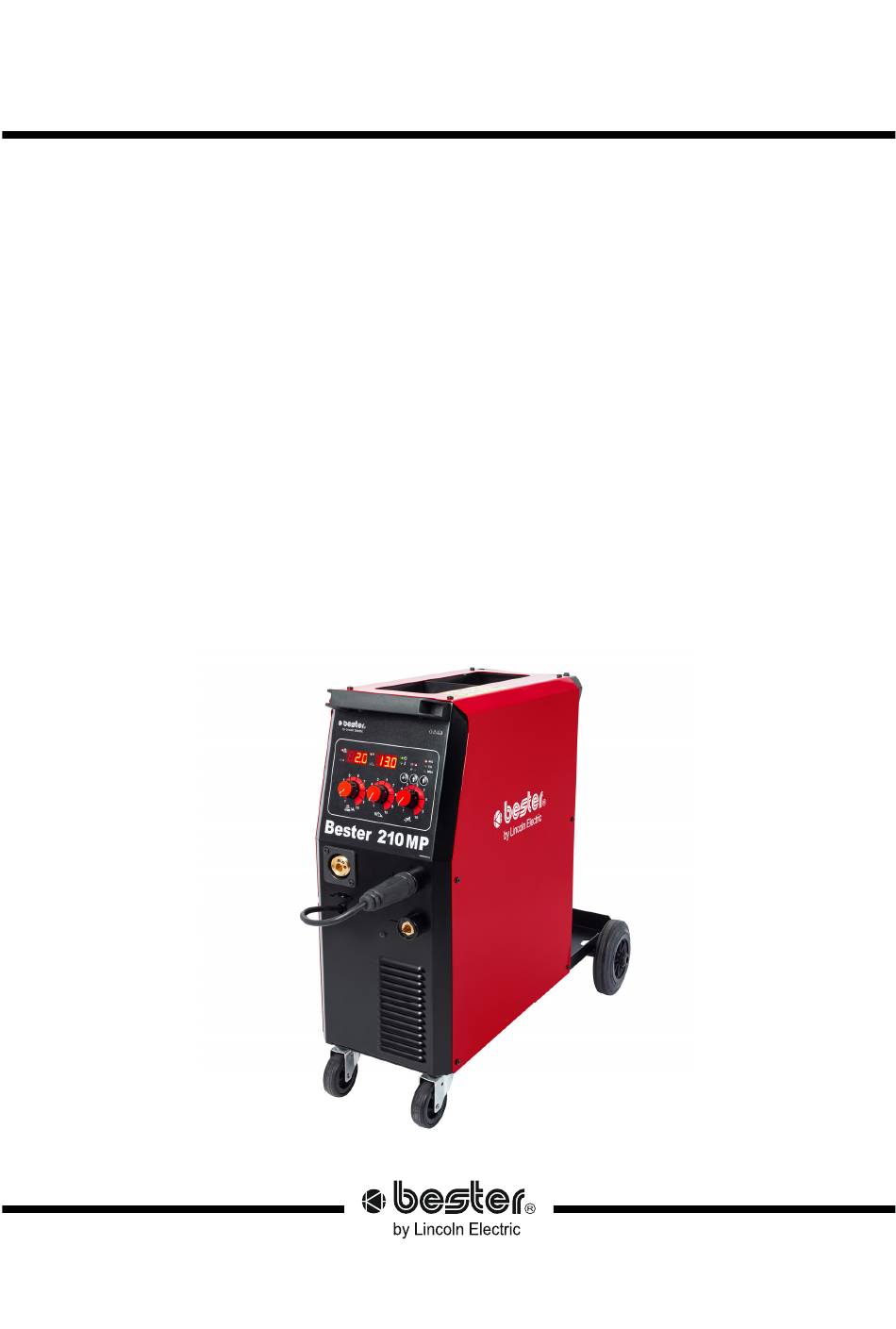

- Page 1 IM3148 11/2020 REV01 BESTER 210MP OPERATOR’S MANUAL ENGLISH Lincoln Electric Bester Sp. z o.o. Jana III Sobieskiego 19A, 58-260 Bielawa, Poland ww.lincolnelectric.eu...
-
Page 2: Table Of Contents
12/05 THANKS! For having chosen the QUALITY of Lincoln Electric products. Please Examine Package and Equipment for Damage. Claims for material damaged in shipment must be notified immediately to the dealer. For future reference record in the table below your equipment identification information. Model Name, Code & Serial Number can be found on the machine rating plate. -
Page 3: Technical Specifications
Technical Specifications NAME INDEX BESTER 210MP B18261-1 INPUT - SINGLE PHASE ONLY Standard Voltage/Phase/ Generator required Maximum Input Current Input Effective Current Frequency and Fuse type (recommended) 230+/-15% / ~1/50/60Hz D 16A - cycles > 60% >10kVA D 25A - cycles < 60% RATED OUTPUT –... - Page 4 Practical data on fuse value, current and welding time for coated electrode - MMA process Electrode diameter Number of welded Welding time in Fuse Type Welding current (A) (mm) electrodes seconds 60-70 Continuous work (16A- slow-blow) 85-90 Continuous work (16A- slow-blow) 120-125 (16A- slow-blow) 130-145...
-
Page 5: Eco Design Information
Efficiency and idle power consumption: Efficiency when max power Index Name Equivalent model consumption / Idle power consumption B18261-1 BESTER 210MP 82,2% / 25W No equivalent model Idle state occurs under the condition specified in below table: IDLE STATE Condition Presence... - Page 6 Typical gas usage for MIG/MAG equipment: DC electrode positive Wire Wire Feeding Gas flow Material type diameter Shielding Gas Current Voltage [m/min] [l/min] [mm] Carbon, low 0,9 ÷ 1,1 95 ÷ 200 18 ÷ 22 3,5 – 6,5 Ar 75%, CO alloy steel Aluminium 0,8 ÷...
-
Page 7: Electromagnetic Compatibility (Emc)
If any electromagnetic disturbances are detected the operator must put in place corrective actions to eliminate these disturbances with, if necessary, assistance from Lincoln Electric. Before installing the machine, the operator must check the work area for any devices that may malfunction because of electromagnetic disturbances. -
Page 8: Safety
Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this equipment. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible for damages caused by improper installation, improper care or abnormal operation. - Page 9 CYLINDER MAY EXPLODE IF DAMAGED: Use only compressed gas cylinders containing the correct shielding gas for the process used and properly operating regulators designed for the gas and pressure used. Always keep cylinders in an upright position securely chained to a fixed support. Do not move or transport gas cylinders with the protection cap removed.
-
Page 10: Introduction
Introduction The welding machines BESTER 210MP enables FCAW-SS process, technical welding: specification describes: Type of welding wire FCAW-SS Wire diameter Recommended equipment, which can be bought by user, was mentioned in the chapter "Accessories”. - Page 11 Check the input voltage, phase and frequency supplied to this machine before turning it on. Verify the connection of ground wires from the machine to the input source. The welding machine BESTER 210MP, must be connected to a correctly installed plug-in socket with an earth pin.
- Page 12 7. Knob Control: In MIG, this knob controls [7]: The installation and connection Inductance: control controlled by this knob. If the value process is higher, the arc will be softer and during welding is less spatters. 11. Voltage/Arc Force control: Depending on welding process, this knob controls [11]: The welding load voltage and set process...
- Page 13 1. Fastening cap. 2. Adjusting Allen screw M8. BESTER 210MP is equipped with drive roll V0.8/V1.0 for 3. Pressing spring. steel wire. For others wire sizes, is available the proper drive rolls kit (see "Accessories" chapter) and follow...
- Page 14 To stop welding, the gun’s trigger is pulled again. 4-step mode facilitates to Welding MIG, FCAW-SS Process making long welds. BESTER 210MP can be used to welding MIG and FCAW-SS process. WARNING 4-Step does not work during Spot Welding.
- Page 15 Welding TIG Process Maintenance BESTER 210MP can be used to TIG process with DC(-). WARNING Arc ignition can be achieved only by lift TIG method For any repair operations, modifications or maintenances, (contact ignition and lift ignition). it is recommended to contact the nearest Technical...
- Page 16 Electric for advice or information about their use of our products. We respond to our customers based on the best information in our possession at that time. Lincoln Electric is not in a position to warrant or guarantee such advice, and assumes no liability, with respect to such information or advice.
- Page 17 Troubleshooting Table 2 Problem Possible Cause What to do Switch off power source; Check the main Input voltage is too high (≥15%) supply. Restart welder when power recovers to normal state. Input voltage is too low (≤15%) Yellow Thermal Insufficient ventilation. Improve the ventilation.
-
Page 18: Weee
Part list reading instructions Do not use this part list for a machine if its code number is not listed. Contact the Lincoln Electric Service Department for any code number not listed. Use the illustration of assembly page and the table below to determine where the part is located for your particular code machine. -
Page 19: Accessories
Accessories W10429-15-3M LGS2 150 MIG gun, gas cooled - 3m W10429-15-4M LGS2 150 MIG gun, gas cooled - 4m W000010786 Gas nozzle conical Ø12mm. W000010820 Contact Tip M6x25mm ECu 0.6mm W000010821 Contact Tip M6x25mm ECu 0.8mm WP10440-09 Contact Tip M6x25mm ECu 0.9mm W000010822 Contact Tip M6x25mm ECu 1.0mm WP10468...
