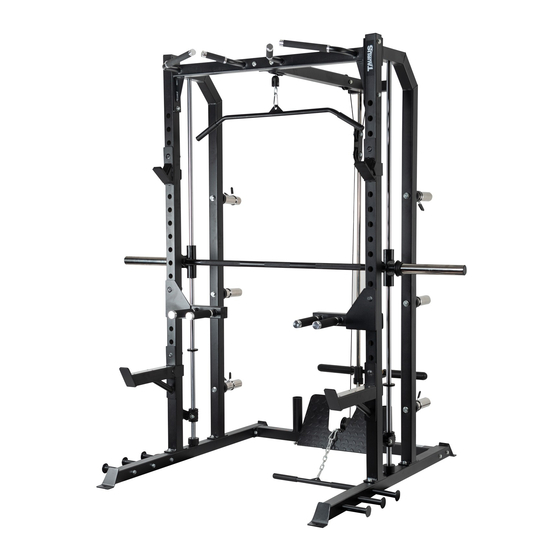

- Page 1 Assembly and Operating Instructions max. 350 kg ~ 60 Min. 158 kg L 151 | B 191 | H 214 TFSR.01.01 Art. No. TF-SR Taurus Smith Rack...
- Page 2 Smith Rack...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly STORAGE AND TRANSPORT General Instructions TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions Faults and Fault Diagnosis Maintenance and Inspection Calendar DISPOSAL RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing... - Page 4 Smith Rack...
- Page 5 With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
- Page 6 ABOUT THIS MANUAL Please carefully read the entire manual before installation and first use. The manual will help you to quickly set up the system and explains how to safely use it. Make sure that all persons exercising with the equipment (especially children and persons with physical, sensory, mental or motor disabilities) are informed about this manual and its contents in advance.
-
Page 7: General Information
GENERAL INFORMATION Technical Data Weight and dimensions: Article weight (gross, incl. packaging): No. 1 73 kg No. 2 43 kg No. 3 39 kg No. 4 32.5 kg Article weight (net, without packaging): 157.7 kg Packaging dimensions (LxWxH): No. 1 approx. 212.5 cm x 52 cm x 14.5 cm No. -
Page 8: Personal Safety
Personal Safety ⚠ DANGER Before you start using the equipment, you should consult your physician that this type of exercise is suitable for you from a health perspective. Particularly affected are persons who: have a hereditary disposition to high blood pressure or heart disease, are over the age of 45, smoke, have high cholesterol values, are overweight and/or have not exercised regularly in the past year. -
Page 9: Set-Up Place
Set-Up Place ⚠ WARNING Do not place the equipment in main corridors or escape routes. CAUTION ⚠ Choose a location in which to place the equipment such that there is enough free space/ clearance to the front, the rear and to the sides of the equipment. The training room should be well ventilated during training and not be exposed to any draughts. -
Page 10: Assembly
ASSEMBLY General Instructions ⚠ DANGER Do not leave any tools, packaging materials such as foils or small parts lying around, as otherwise there is a danger of suffocation for children. Keep children away from the equipment during assembly. ⚠ WARNING Pay attention to the instructions attached to the equipment in order to reduce the risk of injuries. -
Page 11: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. ⚠... - Page 12 Smith Rack...
-
Page 14: Assembly
Assembly Before assembly, take a close look at the individual assembly steps shown and carry out the assembly in the order given. NOTICE First loosely screw all parts together and check that they fit properly. Tighten the screws using the tool only when you are instructed to do so. Step 1: Connection of bending tubes with back connection tube Fasten the first bending tube (1) on the back connection tube (4) by using two bolts (11), two... - Page 15 Step 2: Assembly of the front and back upright tube Fasten the first front upright tube (2) on the bending tube (1) by using two bolts (11), two lock nuts (12) and four washers (13). Fasten the first back upright tube (3) on the same bending tube (1) by using two bolts (11), two lock nuts (12) and four washers (13).
- Page 16 Step 3: Connection of the front and back upright tube Connect the first back upright tube (3) with the front upright tube (2) by using two bolts (14) and two washers (13). Repeat this step for the other side. Smith Rack...
- Page 17 Step 4: Assembly of the chin up bar Connect both front upright tubes (2) with the chin up bar (5) by using two bolts (11), two lock nuts (12) four washers (13) on each side.
- Page 18 Step 5: Assembly of the barbell plate holders Fasten three barbell plate holders (6) on the first back upright tube (3) by using three bolts (15), three washers (16) and three spring collars (18). Repeat this step for the second back upright tube (3). Smith Rack...
- Page 19 Step 6: Assembly of the peg bars Fasten three pegs bars (7) on the first bending tube (1) with three washers (13) and three bolts (17). Repeat this step for the other bending tube (1).
- Page 20 Step 7: Assembly of G hook, dip bar and safety bar Fasten one G hook (8) on each side of the front upright tube (2). Fasten one dip bar (9) on each side of the front upright tube (2). Fasten one safety bar (10) on each side of the front upright tube (2). Smith Rack...
- Page 21 Step 8: Assembly of guide rod Fasten the first guide rod (19) with one small rubber pad (21), one smith bar hook (22), one medium rubber pad (23), one guide bar sleeve (24) and one sliding sleeve (25) between bending tube (1) and back upright tube (3) by using one bolt (11) and one washer (13).
- Page 22 Step 9: Assembly of barbell rod Hold barbell rod (27) between both guide rods (19). Insert solid inner bar (26) into barbell rod (27). Attach one smith barbell plate holder (20) on each side of the solid inner bar (26). Smith Rack...
- Page 23 Step 10: Fastening of solid inner bar Fasten the first solid inner bar (26) with one washer (13) and one bolt (49). Attach one pipe plug (28) and one spring collar (18). Repeat both steps for the other solid inner bar (26).
- Page 24 Step 11: Assembly of foot pedal Connect foot pedal (29) with foot connection (31) by inserting the foot pole (30) through the hole using one lock nut (45) and one washer (46) on each side. Smith Rack...
- Page 25 Step 12: Assembly of pulley on lat pull low connection Fasten the pulley no. 6 (36) on the lat pull low connection (32) by using one bolt (48), two washers (13) and one lock nut (12).
- Page 26 Step 13: Connection of foot connection with lat pull low connection Connect the foot connection (31) with lat pull low connection (32) by using one bolt (47), two washers (13) and one lock nut (12) on each side. Smith Rack...
- Page 27 Step 14: Assembly of lat pull frame Attach one pipe (34) on each side of the lat pull frame (33). Attach one spring collar (50) on each pipe (34).
- Page 28 Step 15: Assembly of pulleys on lat pull high connection Fasten three pulleys no. 1, 2 and 3 (36) on the lat pull high connection (35) by using three bolts (11), six washers (13) and three lock nuts (12). Smith Rack...
- Page 29 Step 16: Assembly of lat pull rods Fasten the lat pull high connection (35) with the lat pull frame (33) on both lat pull rods (37) by using two bolts (14), two washers (13) and two rubber pads (51). Fasten the lat pull rods (37) on the lat pull low connection (32) by using two bolts (14) and two washers (13).
- Page 30 Step 17: Assembly of lat pull high connection Fasten the lat pull high connection (35) on the chin up bar (5) by using two bolts (11), four washers (13) and two lock nuts (12). Smith Rack...
- Page 31 Step 18: Assembly of wires Fasten one snap hook (41) on one of the chains (40). Connect short wire (39) with the other end of the chain by using the other snap hook (41). Fasten the short wire (39) on the lat pull frame (33) by using one bolt (14), two washers (13) and one lock nut (12).
- Page 32 Step 19: Assembly of pulleys Connect the first pulley no. 4 (36) with the two pulley frames (42) by using one bolt (48), two washers (13) and one lock nut (12). Repeat this step for the second pulley no. 5. Smith Rack...
- Page 33 Step 20: Assembly of the lat pull bar and seating row bar Fasten the lat pull bar (43) at the snap hook (41) of the upper wire. Fasten the seating row bar (44) at the snap hook (41) of the lower wire.
-
Page 34: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑... -
Page 35: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 36: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Cables Screw connections Pulleys and cable routing... -
Page 37: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. This could be a floor mat, for example, which makes your fitness equipment stand more securely and also protects the floor from falling sweat, but it could also be additional handrails on some treadmills or silicone spray to keep moving parts in good shape. -
Page 38: Ordering Spare Parts
It's located on a white sticker. The exact position of this sticker is shown in the following illustration. Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / rack Model Name: Taurus Smith Rack Article Number: TF-SR Smith Rack... -
Page 39: Parts List
Parts List Name Specification Qty. bending tube Separated front upright tube back upright tube back connection tube chin up bar barbell plate holder pegs bar G hook Separated dip bar Separated safety bar Separated out hexagon bolt M10*80 lock nut washer Ø10 out hexagon bolt... - Page 40 lat pull low connection lat pull frame pipe lat pull high connection pulley lat pull rod 2092mm wire long wire short chain snap hook pulley frame lat pull bar seating row bar lock nut washer Ø12 out hexagon bolt M10*90 out hexagon bolt M10*50 in hexagon bolt...
-
Page 41: Exploded Drawing
Exploded Drawing... -
Page 42: Warranty
WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 43 Warranty Conditions For the warranty to be valid, the following steps must be taken: Please contact our customer service by email or phone. If the product under warranty has to be sent in for repair, the seller bears costs. After expiry of the warranty, the buyer bears the costs of transport and insurance.
-
Page 44: Contact
CONTACT TECHNICAL SUPPORT TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de ��... - Page 45 LIVE FITNESS WEBSHOP AND SOCIAL MEDIA Sport-Tiedje is Europe’s largest specialist store www.sport-tiedje.co.uk for home fitness equipment with currently over www.sport-tiedje.de/blog 70 stores and one of the world’s most renowned online mail order companies for fitness equipment. Private customers order via the 25 www.facebook.com/SportTiedje web shops in the respective national language or have their desired equpiment assembled on...
- Page 46 Notes Smith Rack...
- Page 48 Beispiel Test...
