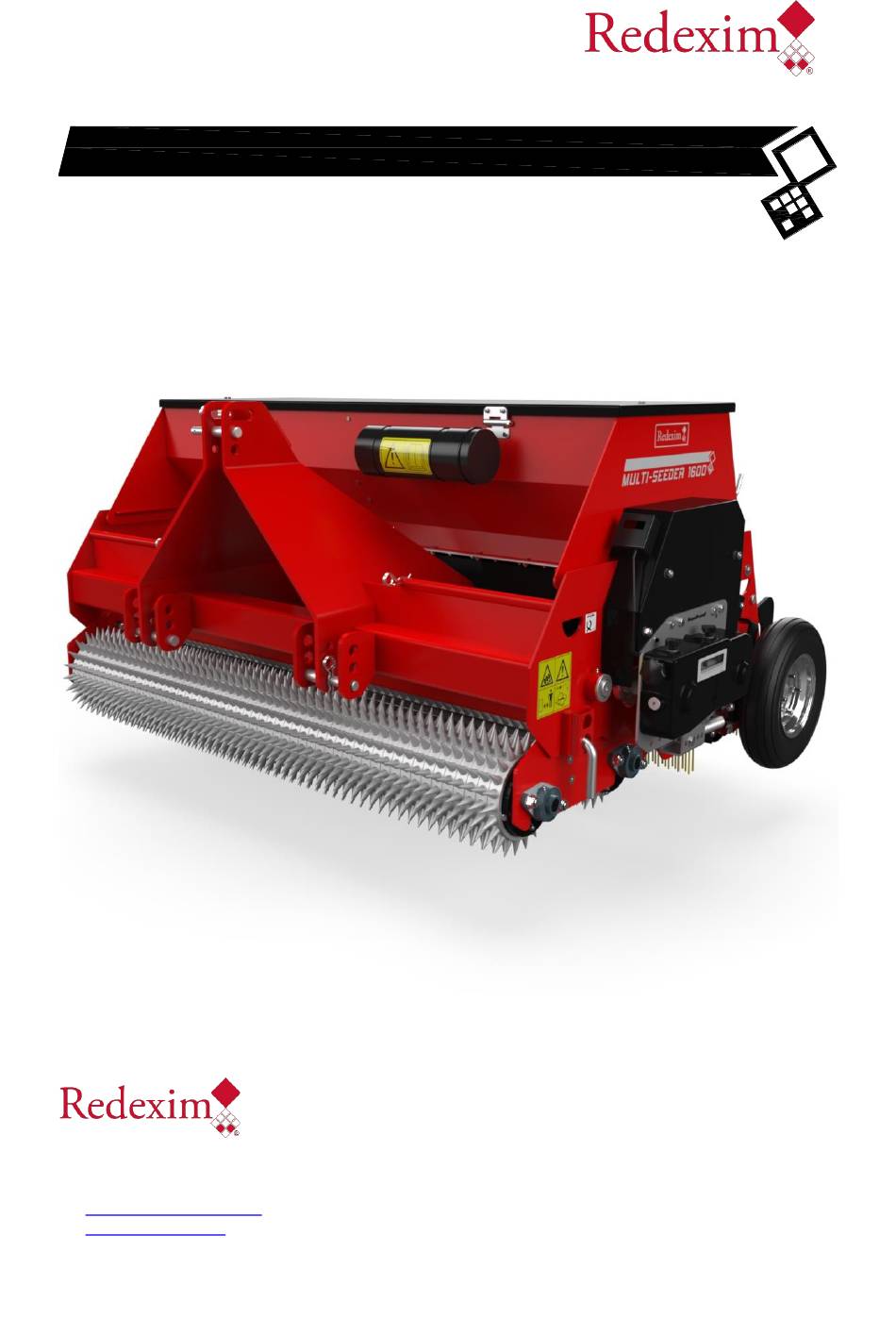

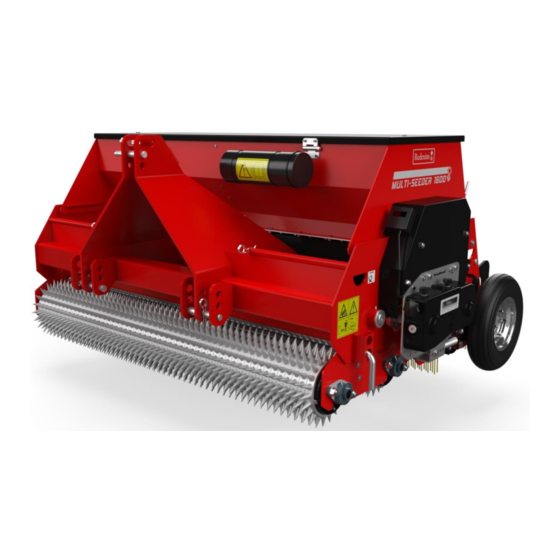

- Page 1 User manual MULTI-SEEDER 1200-1600-2100 Translation of the original user manual 2145 English 924.120.002 Kwekerijweg 8 | 3709JA | Zeist | The Netherlands | T: +31 (0)306 933 227 redexim@redexim.com www.redexim.com...
-
Page 2: Guarantee Conditions
FOREWORD Congratulations with the purchase of your Multi-Seeder. To ensure long and safe use of this Multi-Seeder, it is of major importance to all users to read and understand this user manual. Operation of this machine is not safe without full knowledge of the content of the manual. The Multi-Seeder is not an independently operating machine. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS The design of the Multi-Seeder allows for safe use. Safe use is only possible when the user fully understands the safety instructions given in this manual. Read and understand ( ) the manual before working Figure 1 with the Multi-Seeder. Figure 1 Not using the machine as described in the manual may lead to injury and/or damage to the Multi-Seeder. - Page 4 REQUIREMENTS FOR THE ENVIRONMENT AND TOWING MACHINES Before using the Multi-Seeder, inspect the area to be treated. Remove any loose obstacles from the field. Always use the Multi-Seeder in combination with the appropriate tractor as described in the technical data. Do not use the Multi-Seeder when it is dark, during heavy rain/storms or on slopes with a gradient of more than 20 degrees.
- Page 5 SAFETYSTICKERS On both sides of the Multi-Seeder, safety stickers (Figure 1 & 2) have been applied to the sideboards showing these warnings. Make sure these safety stickers are always clearly visible and legible. Replace them if they are damaged. When carrying out any maintenance activities, adjustments or repairs, always switch off the tractor engine first and remove the tractor key from the ignition.
-
Page 6: Eu-Declaration
EU-DECLARATION Redexim BV Utrechtseweg 127 3702 AC Zeist, the Netherlands declare entirely under our own responsibility that the product: THE MULTI-SEEDER WITH SERIALNUMBER AS STATED ON THE MACHINE AND IN THIS MANUAL, to which this declaration refers, complies with stipulation of the 2006/42/EC machine directive and is in... -
Page 7: Table Of Contents
CONTENTS GUARANTEE CONDITIONS ..................2 REGISTRATION CARD ..................... 2 SAFETY INSTRUCTIONS ! ................3 EU-DECLARATION ....................6 TECHNICAL DATA ..................8 GENERAL DESCRIPTION ................8 REMOVING THE MACHINE FROM THE PALLET ......... 9 CONNECTING THE MULTI-SEEDER ............10 4.1. CONNECTING ....................10 4.2. -
Page 8: Technical Data
1. TECHNICAL DATA Model Multi-Seeder 1200 Multi-Seeder 1600 Multi-Seeder 2100 1200mm (47.2”) 1600mm (63”) 2100mm (82.7” Working width 5 mm – 20 mm (0.2” – 0.8”) Working depth Driving speed Up to 12 km/h (7.5 mph) Hitch frame CAT 1-2... -
Page 9: Removing The Machine From The Pallet
3. REMOVING THE MACHINE FROM THE PALLET Perform the following actions to remove the machine from the pallet and place it horizontally on the floor. 1. Attach a cable to the lifting points (1) on both sides of the machine (Figure 4). ENSURE THAT THE CABLE / CRANE COULD LIFT AT LEAST 2X WEIGHT OF THE MACHINE. -
Page 10: Connecting The Multi-Seeder
4. CONNECTING THE MULTI-SEEDER For coupling and uncoupling of the Multi-Seeder you must proceed carefully. Follow the instructions below: 4.1. CONNECTING Checks prior to connecting the Multi-Seeder: − Check the Multi-Seeder for any visual damage, and repair if safe operation of the machine cannot be guaranteed. -
Page 11: Disconnecting
4.2. DISCONNECTING The machine can be disconnected from the tractor as follows. 1. Drive the Multi-Seeder to a storage place with a stable/even floor. !! Make sure the tractor is secured in place and cannot start moving !! !! Turn the tractor off before dismounting !! !! Be sure that the Multi-Seeder is stable on the floor and can’t move unintentionally before dismounting the tractor!! 2. -
Page 12: Starting/Stopping Procedure
7. STARTING/STOPPING PROCEDURE Before starting the seeding, check the machine for the following points: !! Make sure the tractor is secured in place and cannot start moving !! !! Turn the tractor off before dismounting !! !! Be sure that the Multi-Seeder is stable on the floor and can’t move unintentionally before dismounting the tractor!! •... -
Page 13: Machine Settings
8. MACHINE SETTINGS The Multi-Seeder has several options to change the setup op the machine. 8.1. ADJUSTING THE SPIKED ROLLERS The spiked rollers make holes in the ground for the seeds to fall into. These rollers follow the contours of the ground. Because of this a good result can be obtained even when the seed bed is uneven. -
Page 14: Adjusting The Brushes
8.2. ADJUSTING THE BRUSHES The Multi-Seeder has two brushes that brush. The front brush sweeps the seed in the holes. The rear brush sweeps soil in the holes to cove the seed. The front most brush can be adjusted in height by using the spindles (Figure 6). Make sure the spindles are set at the same depth left &... -
Page 15: Adjusting The Amount Of Seed With The Gearbox
8.4. ADJUSTING THE AMOUNT OF SEED WITH THE GEARBOX By adjustment the seed elements valve the amount of seed can be adjusted. I seed each element is a rotor that transports the seed. By influencing the speed of the gears, the quantity of seed can be adjusted. -
Page 16: Spreading Test
Divide the 13 rotations in more smaller steps!! Figure 10 6. Weigh the seed in: Kilograms and multiply this by: Pounds and multiply this by: Multi-Seeder 1200: 4.76 Multi-Seeder 1200: 512 Multi-Seeder 1600: 3.57 Multi-Seeder 1600: 385 Multi-Seeder 2100: 2.72... - Page 17 Seeding table Gearbox setting Gate opening Rye Grass Kg/ha Pound/Acre 12.0 10.7 51.0 45.4 77.6 69.1 110.6 98.4 151.0 134.4 193.0 171.8 241.5 214.9 309.3 275.3 370.8 330.0 436.2 388.2 560.0 498.4 Seeding table Gearbox setting Gate opening Bluegrass Kg/ha Pound/Acre Seeding table Gearbox setting...
- Page 18 Seeding table Gearbox setting Gate opening Kg/ha Pound/Acre Seeding table Gearbox setting Gate opening Kg/ha Pound/Acre Seeding table Gearbox setting Gate opening Kg/ha Pound/Acre...
-
Page 19: Troubleshooting
9. TROUBLESHOOTING Problem Possible cause Solution The machine does not The ground is to hard Aerate/irrigate reach the required Too little pressure on the front Set the machine so that it rests on depth. roll the front spiked roller only Not enough weight on the Mount extra weight on the machine. -
Page 20: Maintenance
10. MAINTENANCE Time schedule Check point/lubricating Method point Before each use Check for loose bolts/nuts. Tighten the loose bolts/nuts with the correct torque. Presence and legibility of Replace if damaged or safety stickers. missing. After each use Clean the machine Clean the machine with compressed air. -
Page 21: Technical Information: Greasepoints
If the settings of the surface meter have disappeared from memory, these are the specific parameters to be filled in: Machine Parameter “C” Parameter “L” Pulses of the speed sensor (Chapter 8.2) Working width (Chapter 8.4) Setting UN=0 Multi-Seeder 1200 Multi-Seeder 1600 Multi-Seeder 2100... -
Page 22: Options: Weight Kit
2. Mount the desired number of weights (1) onto the shaft. 3. Place the lock pin (2) onto the frame Per machine, the following weights are available: - Multi-Seeder 1200: 492.502.800 (120Kg) (265 lbs) - Multi-Seeder 1600: 492.502.800 (280Kg) (617 lbs) - Multi-Seeder 2100: 492.502.800 (400Kg) (880 lbs)
