Installing an Ethernet Port Interface
Module (EPIM)
Only qualified personnel should perform installation
procedures.
The ELS100-16TX provides two slots for a Cabletron EPIM-100FX
(Ethernet Port Interface Module). The ELS100-16TX is shipped
without EPIMs. To install an EPIM, follow the procedure below:
1. Remove the coverplate or the existing EPIM (whichever
applies).

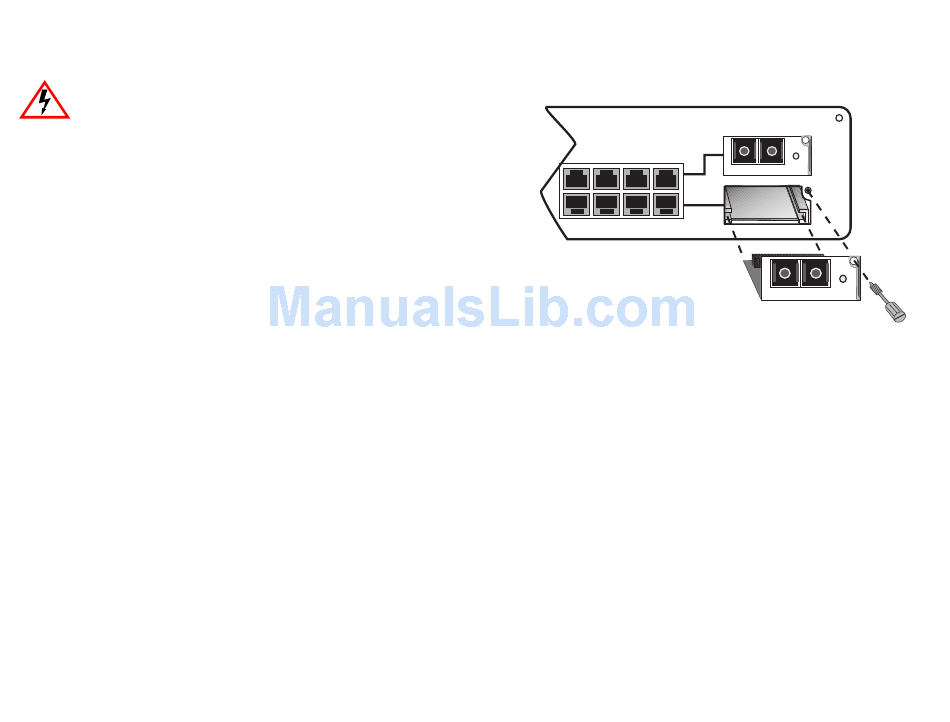

2. Slide the new EPIM into place, making sure that the
connectors on the rear of the EPIM align correctly and firmly
with the connector inside the ELS100-16TX. Refer to figure.
3. Install the mounting screw.
Note: The EPIM is hot swappable. Also, the RJ45 port
corresponding to the EPIM port is disabled once an EPIM is
installed.
Caution:When removing an EPIM, pull the module straight out to
prevent damage to the connector.
9X 11X 13X
10X 12X 14X
– 5 –
EPIM100
LNK
15X
EPIM-100FX
16X
EPIM100
LNK
EPIM-100FX
