Bill of Materials, PCB Layout, and Schematics
7.2
PCB Layout
Figure 16
through
26
ADS9110EVM-PDK
Figure 19
illustrate the EVM PCB layout.

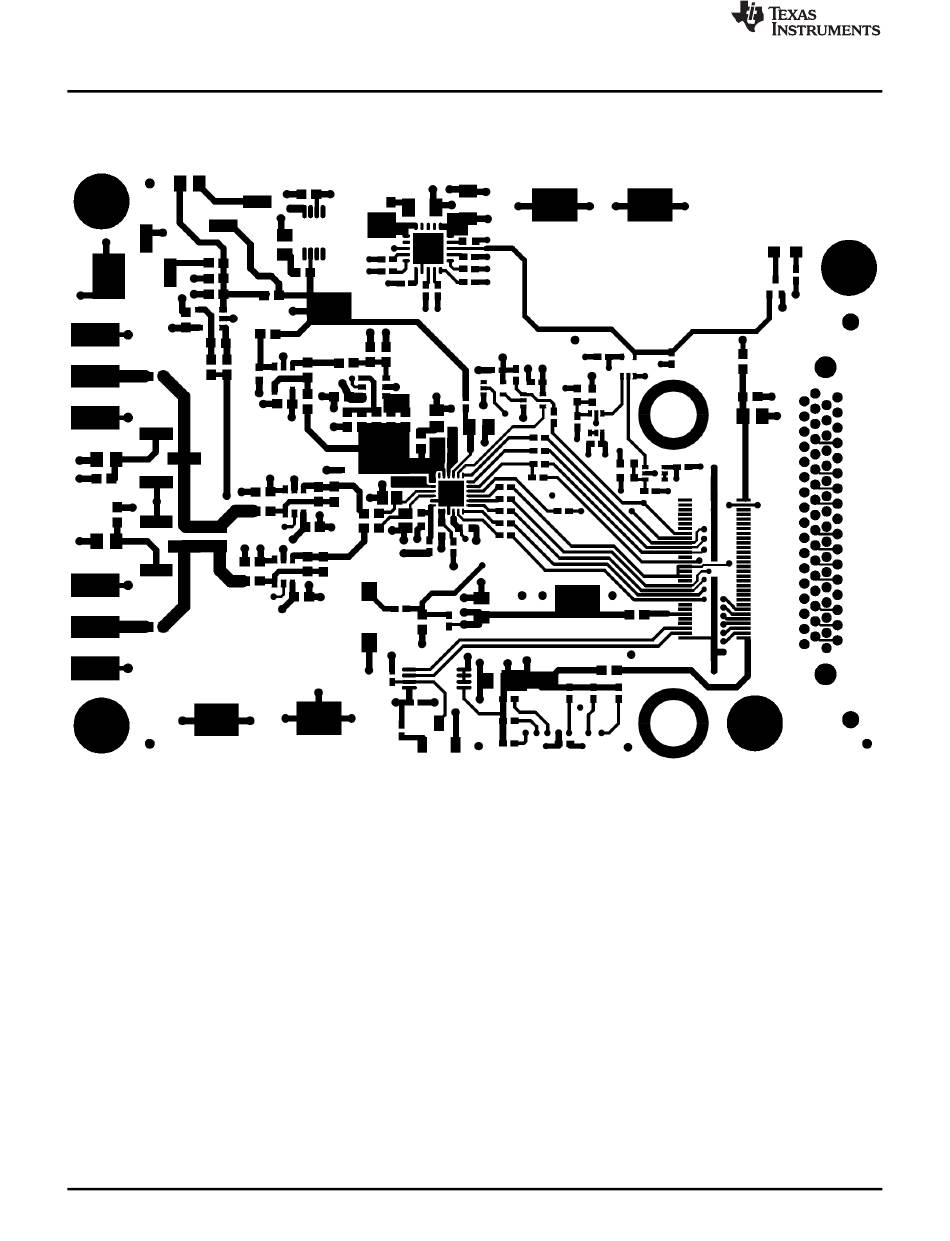

Figure 16. ADS9110EVM PCB Layer 1: Top Layer
Copyright © 2015, Texas Instruments Incorporated
www.ti.com
SBAU249 – October 2015
