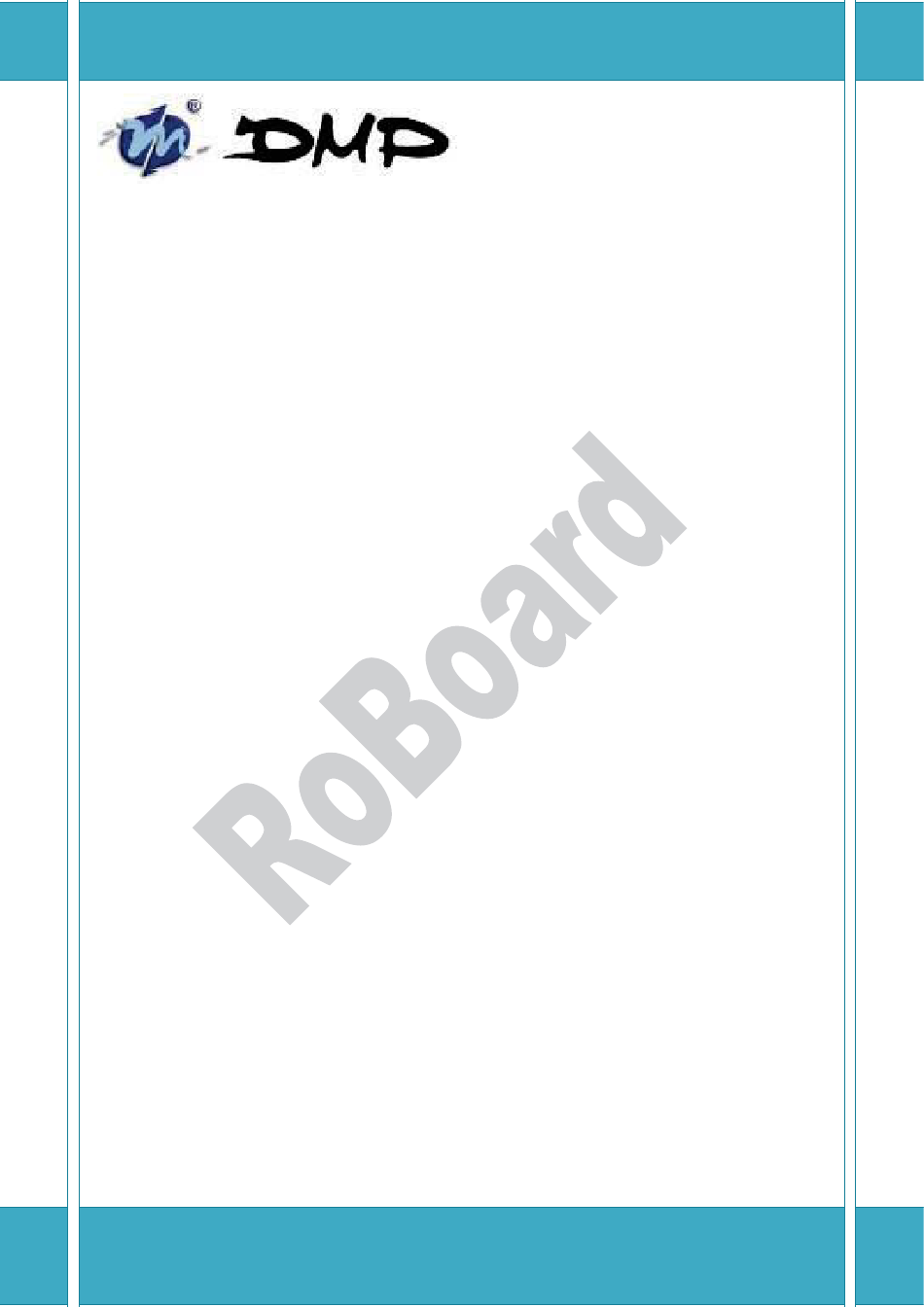

- Page 1 No.15, Wugong 5th Rd., Xinzhuang Dist., New Taipei City 24890, Taiwan (R.O.C.) RoBoard Module RM-G211 Manual V1.01 The Heart of Robotics Nov 2012 DMP Electronics Inc...
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the DMP Electronics Inc. Copyright 2012 DMP Electronics Inc. Manual No. RM-G211-01 Ver.1.01...
-
Page 3: Table Of Contents
T a b l e C o n t e n t s Introduction ................4 1.1 Packing List ............... 4 1.2 Product Description ........... 5 1.3 Specifications ............. 5 1.4 I C Address ..............5 1.5 Board Dimension ............6 Introduction ................ -
Page 4: Introduction
C h a p t e r Introduction 1.1 Packing List Product Name Package RM-G211 RoBoard Module RM-G211 Cable-RM-1 1x6 pin Cable x 1 RoBoard Module RM-G211 The Heart of Robotics www.RoBoard.com... -
Page 5: Product Description

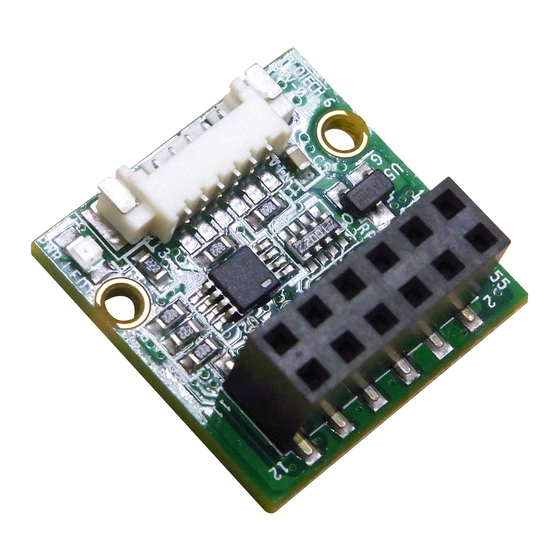

1.2 Product Description The RoBoard Module RM-G211 is an 8 channel 12 bit Analog to Digital module (AD7998), simply and all done through I2C interface, the dimension of it is wee as 20 x 20 mm. 1.3 Specifications RM-G211 Analog to Digital module Analog to Digital 8 Channel 12 Bit (AD7998) Interface... -
Page 6: Board Dimension
1.5 Board Dimension RoBoard Module RM-G211 The Heart of Robotics www.RoBoard.com... -
Page 7: Introduction
C h a p t e r Introduction 2.1 Board Outline PWR LED ADC Pin Assignment 3.3V GND GND VIN1 VIN2 VIN3 VIN4 VIN5 VIN6 VIN7 VIN8 RoBoard Module RM-G211 The Heart of Robotics www.RoBoard.com... -
Page 8: Connectors & Jumpers Summary
2.2 Connectors & Jumpers Summary Summary Table Description Type of Connections C connector (Top) Wafer, 2.54mm,6x1 6-pin C connector (Bottom) Wafer, 2.54mm,6x1 6-pin 2.3 Pin Assignments J1: I C connector (Top) Pin # Signal Name Vcc (Red) GND (Black) SCL (Blue) SDA (Green) X (White) X (Orange ) -
Page 9: Introduction
C h a p t e r Introduction Sample and development code The RM-G211 provides sample and development code. Please download from official website: http://www.roboard.com Warranty This product is warranted to be in good working order for a period of one year from the date of purchase.
