DMP Electronics 861 Installation Manual

861 AUXILIARY POWER DISTRIBUTION
AND BUS MODULE
Installation Guide
MODEL
861
RED PWR OUT

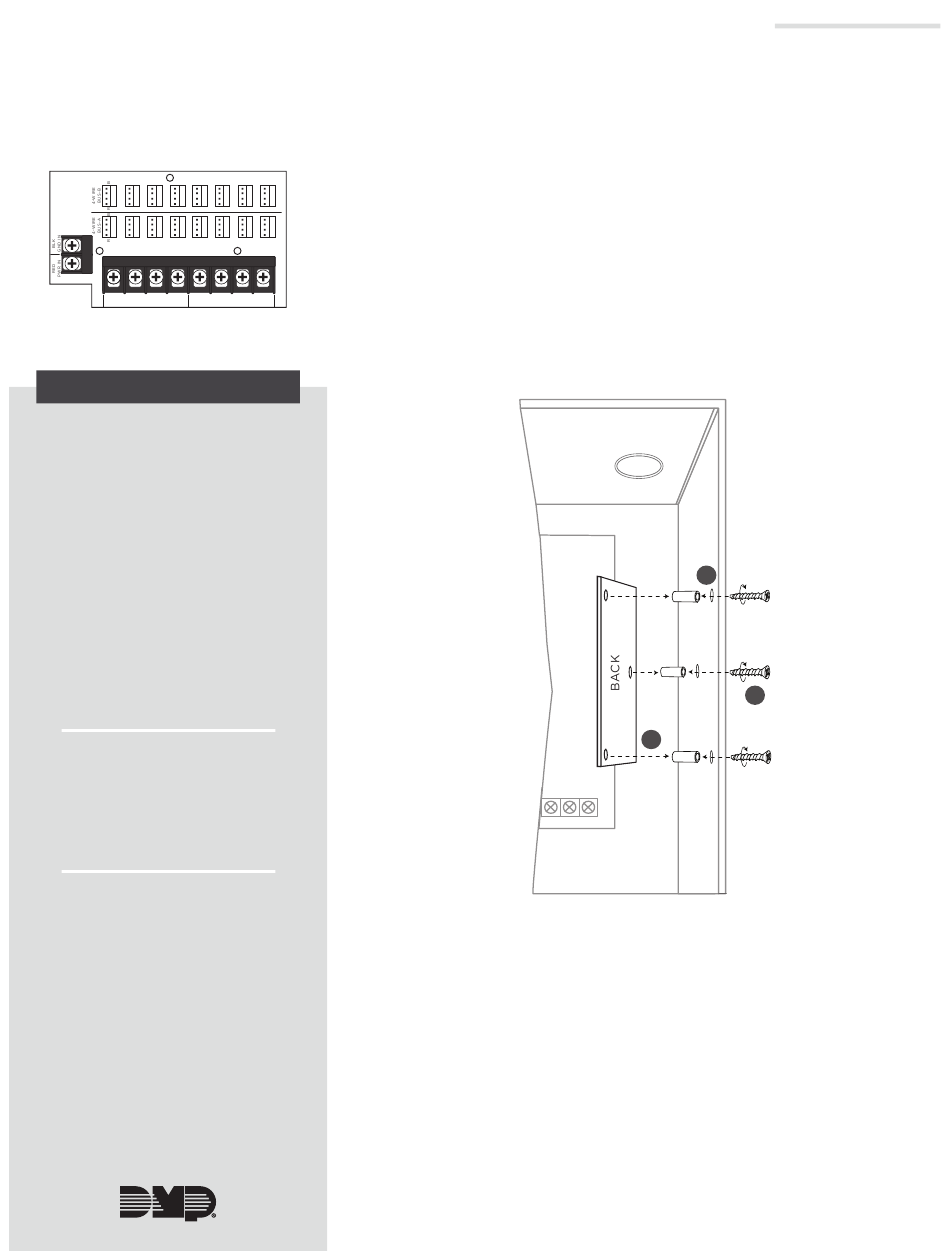

Figure 1: 861 Module
DESCRIPTION
The Model 861 Auxiliary Power
Distribution and Bus Module
provides multiple auxiliary
power terminals and additional
Keypad Bus or LX‑Bus
connectors for a clean install.
The 861 Module is compatible with
all DMP XT30/XT50 Series and
XR150/XR550 Series panels, as well
as panels from other manufacturers.
For maximum flexibility, the
module is rated for either 12 VDC
or 24 VDC power input with a
maximum current handling capacity
of 8 Amps on the module RED PWR
IN and BLK GND IN terminals.
Compatibility
• XT30/XT50 Series panels
• XR150/XR550 Series panels
What is Included?
• One 861 Module
• One Pair of 18 AWG Red and
Black Wires (8")
• One Model 330 Dual‑Ended
4‑Wire Harness
• Hardware Pack
1
BLK GND OUT
MOUNT THE MODULE
The module can be mounted in a DMP enclosure using the
standard 3‑hole mounting pattern. Refer to Figure 2 as needed
during installation.
1. Hold the plastic standoffs against the inside of the enclosure
side wall.
2. Insert the included Phillips head screws from the outside of
the enclosure into the standoffs. Tighten the screws.
3. Carefully snap the module onto the standoffs.
Figure 2: Standoff and Module Installation
1
2
3
