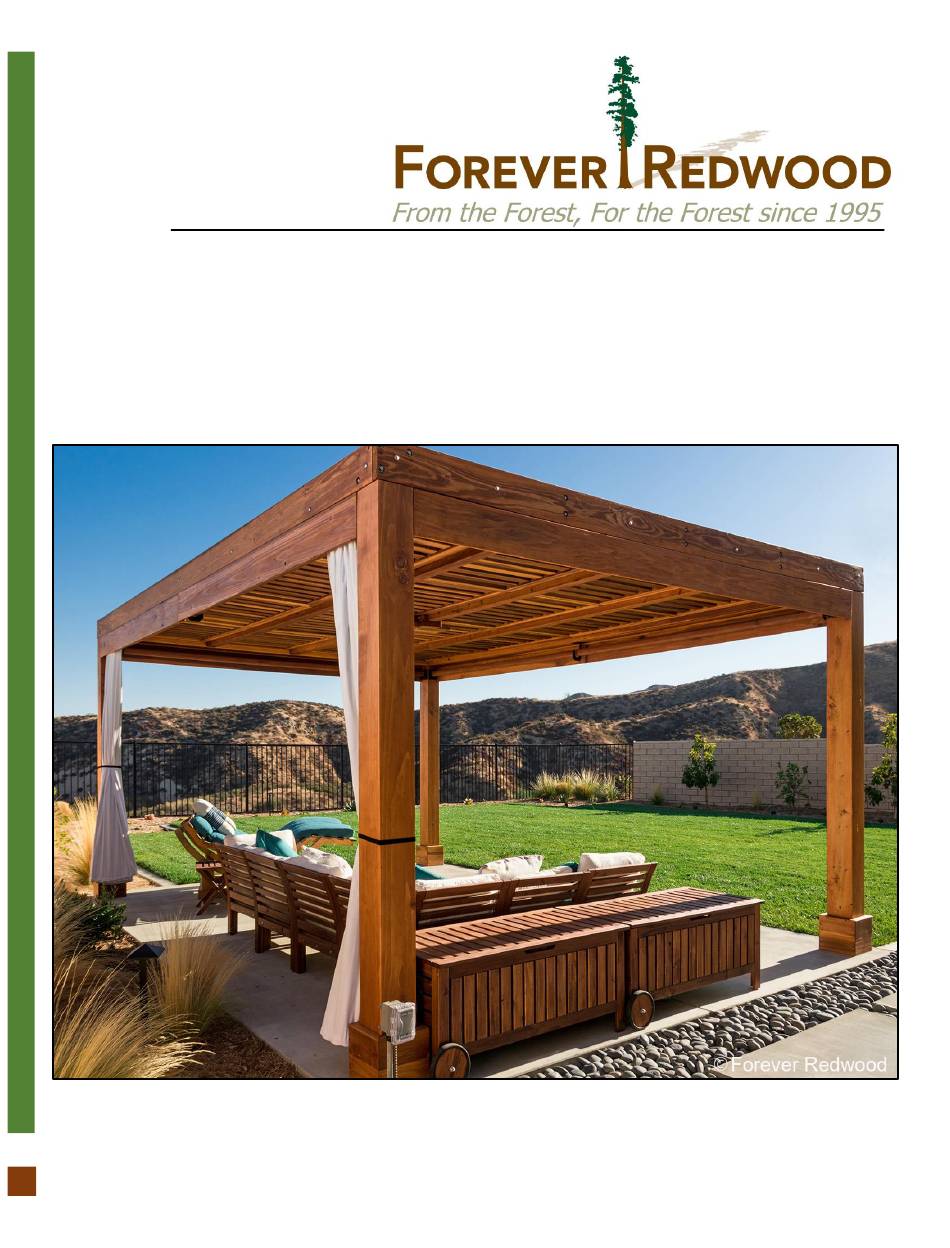

- Page 1 866.332.2403 (TOLL FREE); 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE MODERN FAT TMBER PERGOLA...
- Page 2 P| 1 MODERN FAT TIMBER PERGOLA www.ForeverRedwood.com...
- Page 3 P| 2 MODERN FAT TIMBER PERGOLA www.ForeverRedwood.com...
- Page 4 P| 3 MODERN FAT TIMBER PERGOLA www.ForeverRedwood.com...
- Page 5 NOTE: In order to know where the post needs to be placed, check the numbers on them. If the post is not marked, then place the single Supports on the ground to locate the markings for each post position and clearly set your bearings. (“Don´t attach yet, only place them on the ground to begin with”).
- Page 6 Step 2: Attach the short and the long single supports (2,3) to the posts with 3/8´´ X 8´´ bolts (B) with washers and nuts. After that, use 3/8´´ X 4´´ lag bolts (C) with washers to attach the single supports together. Each part has a series of numbers that indicate where to attach the part with the corresponding number.
- Page 7 Step 4: Attach the shorts supports with in-between blocking (4) to the short single supports (3) with 3/8´´ x 7 ¼´´ bolts (E). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´...
- Page 8 Step 6: Attach the long supports with in-between blocking (5) to the long single supports (2) with 3/8´´ x 7 ¼´´ bolts (E). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´...
- Page 9 Step 8: Use 3/8´´ x 12´´ lag bolts (G) with washers to attach the central supports (7) to the short supports. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´X 12´´ Lag bolts Step 9: Attach the roof panels (8) to the long supports and to the central supports with 5/16´´...
- Page 10 Step 10: Use 3/8´´ x 7´´ bolts (I) to attach the ceiling fan base (9) to the central support. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 7´´ Bolts Step 11: Attach the curtain bases (14) to the posts with 1 5/8´´...
- Page 11 Step 12: Attach the curtain rod fascias (10) to the post and supports with 3´´ deck screws (F). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3´´ Deck Screws Step 13: Place the curtain rods (11) on the curtain rod bases. P| 10 MODERN FAT TIMBER PERGOLA www.ForeverRedwood.com...
- Page 12 Step 14: Finally, use 3´´ deck screws (F) to attach the boots (12) to the post. Each part has a series of number’s that indicate where to attach the part with the corresponding number. 3´´ Deck Screws This completes the Pergola assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us.
- Page 13 HOW TO REMOVE THE ELECTRICAL WIRING TRIM FROM THE POST: Step 1: First remove the deck screws to remove the boots of the post. Don´t add the lag bolt over the trim piece initially. Step 2: Remove the Curtain Rod Fascia of the Pergola. P| 12 MODERN FAT TIMBER PERGOLA www.ForeverRedwood.com...
- Page 14 Step 3: Remove the trim. Note: The dimensions of the trim are standard, adjust if necessary. P| 13 MODERN FAT TIMBER PERGOLA www.ForeverRedwood.com...
