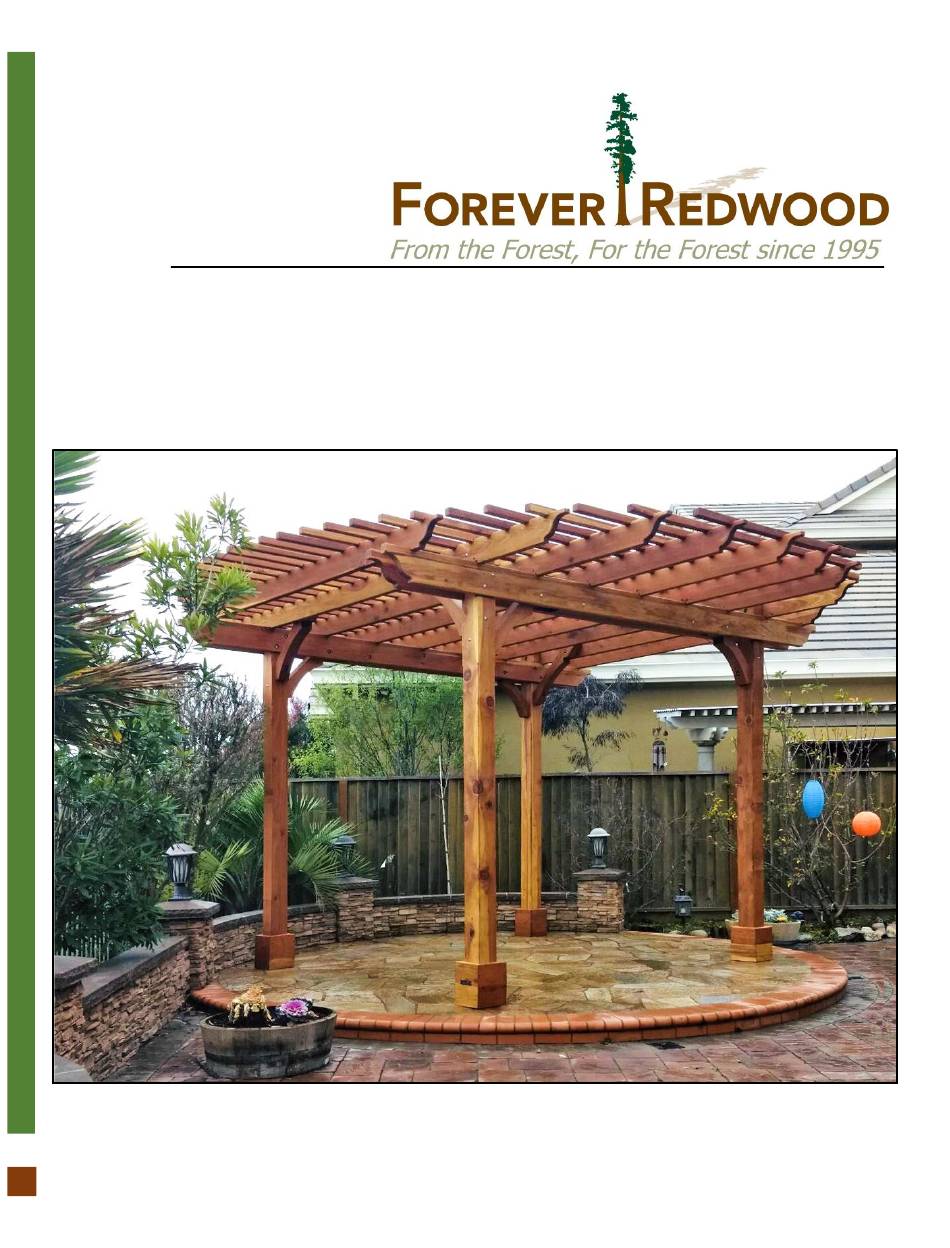

- Page 1 866.332.2403 (TOLL FREE); 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE ROUND PERGOLA...
- Page 2 P| 1 THE ROUND PERGOLA www.ForeverRedwood.com...
- Page 3 P| 2 THE ROUND PERGOLA www.ForeverRedwood.com...
- Page 4 P| 3 THE ROUND PERGOLA www.ForeverRedwood.com...
- Page 5 Step 2: First attach the single supports (2) to the posts with 3/8´´ X 7´´ bolts (C). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 7´´ Bolts P| 4 THE ROUND PERGOLA www.ForeverRedwood.com...
- Page 6 Step 4: Attach the single supports (2) to the supports with in-between blocking (3), use 3/8´´ X 7´´bolts (C). The quantity of bolts depends on the length of the supports. 3/8´´ X 7´´ Bolts P| 5 THE ROUND PERGOLA www.ForeverRedwood.com...
- Page 7 Step 6: Attach the main knee braces (5) to the posts with 3/8´´ x 9´´ bolts (F) and to the supports with 3/8´´ X 7´´ bolts (G). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 7´´ Bolts 3/8´´ X 9´´ Bolts P| 6 THE ROUND PERGOLA www.ForeverRedwood.com...
- Page 8 Step 8: Use 8´´ x 3´´ deck screws (E) to attach the rest of the rafters (4) to the supports. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 8´´ X 3´Deck Screws P| 7 THE ROUND PERGOLA www.ForeverRedwood.com...
- Page 9 Step 10: Finally, attach the boots (8) to the posts with 8´´ x 3´´ deck screws (E). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3´´ Deck Screws P| 8 THE ROUND PERGOLA www.ForeverRedwood.com...
- Page 10 This completes the Pergola assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. P| 9 THE ROUND PERGOLA www.ForeverRedwood.com...
