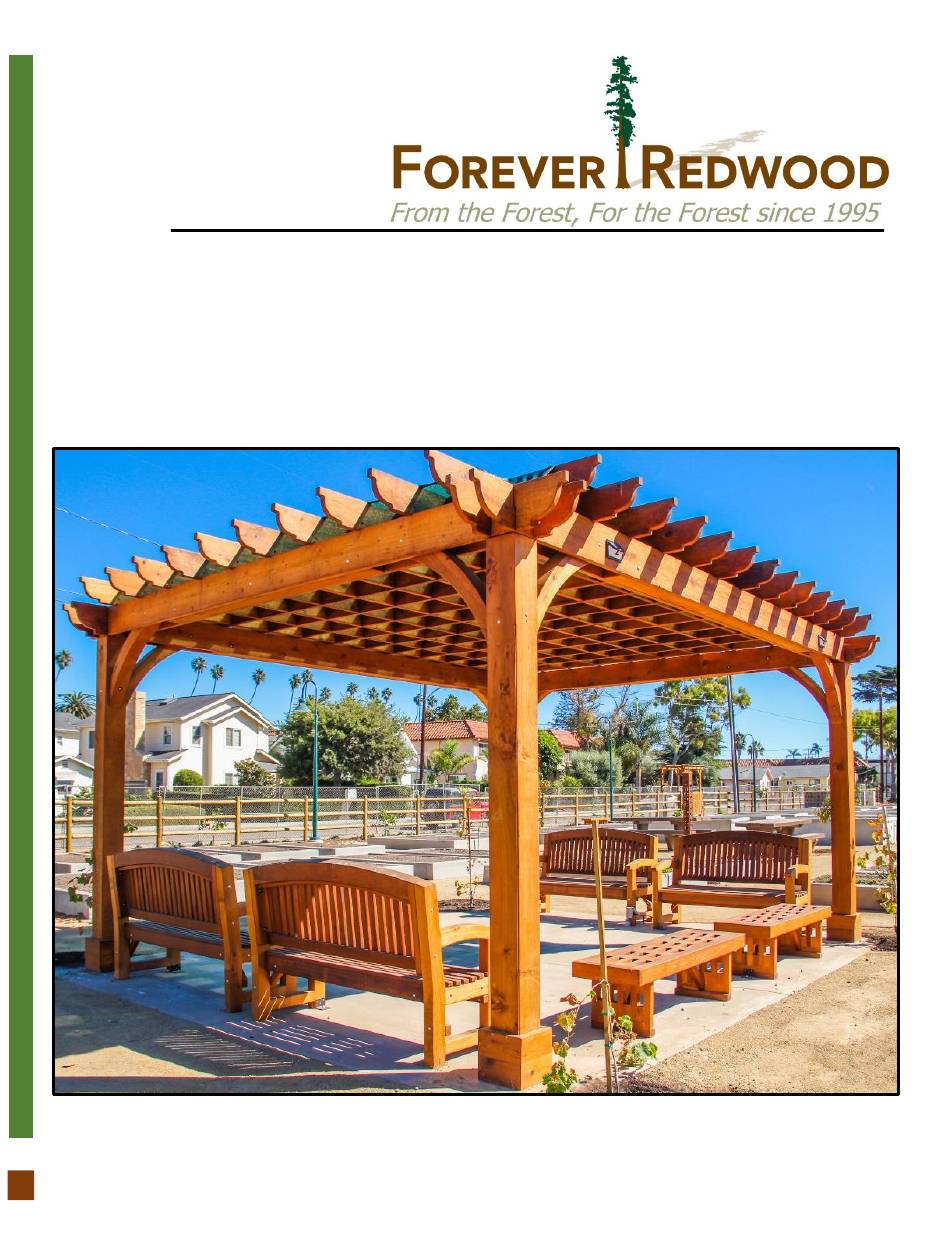

- Page 1 866.332.2403 (TOLL FREE); 7am – 7pm Pacific Time, Monday-Saturday ASSEMBLY INSTRUCTIONS FOR THE MONTVALE PERGOLAS P| 0 THE MONTVALE PERGOLAS www.ForeverRedwood.com...
- Page 2 P| 1 THE MONTVALE PERGOLAS www.ForeverRedwood.com...
- Page 3 P| 2 THE MONTVALE PERGOLAS www.ForeverRedwood.com...
- Page 4 P| 3 THE MONTVALE PERGOLAS www.ForeverRedwood.com...
- Page 5 Step 2: First attach the short single supports (2) to each posts with 3/8´´ X 7 ¾´´ bolts (C) with 3/8´´ washer (G) and 3/8 nut (H). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 7 ¾´´ Bolts P| 4 THE MONTVALE PERGOLAS www.ForeverRedwood.com...
- Page 6 Step 4: Attach the short single supports (2) to the short supports with in-between blocking (4), use 3/8´´ X 7 ¾´´bolts (C) with 3/8´´ washer (G) and 3/8 nut (H). 3/8´´ X 7 ¾´´ Bolts P| 5 THE MONTVALE PERGOLAS www.ForeverRedwood.com...
- Page 7 (G) and 3/8 nut (H), and to the supports with 3/8´´ x 7 ¾´´ bolts (C) with 3/8´´ washer (G) and 3/8 nut (H). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3/8´´ X 7 ¾´´ Bolt 3/8´´ X 12´´ Bolt P| 6 THE MONTVALE PERGOLAS www.ForeverRedwood.com...
- Page 8 Step 8: Attach the long rafters (7) to the short supports and to the short rafters with 3´´ deck screws. (E). Make sure that the rafters fit correctly. Each part has a series of numbers that indicate where to attach the part with the corresponding number. 3´´ Deck Screws 3´´ Deck Screw P| 7 THE MONTVALE PERGOLAS www.ForeverRedwood.com...
- Page 9 Step 9: Use 5/16´´ X 6´´ lag bolts (F) with 3/8´´ washer (G) and 3/8 nut (H), to continue tying the long rafters to the short rafters. After that, place the caps (11) on each predrilled hole. 5/16´´ X 6´´ Lag Bolts P| 8 THE MONTVALE PERGOLAS www.ForeverRedwood.com...
- Page 10 Step 10: Finally, attach the boots (9) to each posts with 8´´ x 3´´ deck screws (G). Each part has a series of numbers that indicate where to attach the part with the corresponding number. 8´´ X 3´Deck Screws P| 9 THE MONTVALE PERGOLAS www.ForeverRedwood.com...
- Page 11 This completes the Pergola assembly. Hope you enjoy your set for many decades. If you ever have a problem or a question, don't hesitate to call us (866 332 2403) or email us. We are here to support you. P| 10 THE MONTVALE PERGOLAS www.ForeverRedwood.com...
- Page 12 HOW TO REMOVE THE ELECTRICAL WIRING TRIM FROM THE POST: Step 1: First remove the deck screws to remove the boots of the post. Don´t add the lag bolt over the trim piece initially. Step 2: Loosen the nut on the bolt support. P| 11 THE MONTVALE PERGOLAS www.ForeverRedwood.com...
- Page 13 Step 3: The bolt of the post and brace must be flush with the post. Bolt. Step 4: Swing the brace aside. After that, remove the trim. Note: The dimensions of the trim are standard, adjust if necessary. P| 12 THE MONTVALE PERGOLAS www.ForeverRedwood.com...
